Job Card PHY A009 - Opposite Side Rotative Arm Installation
6 PROCEDURE

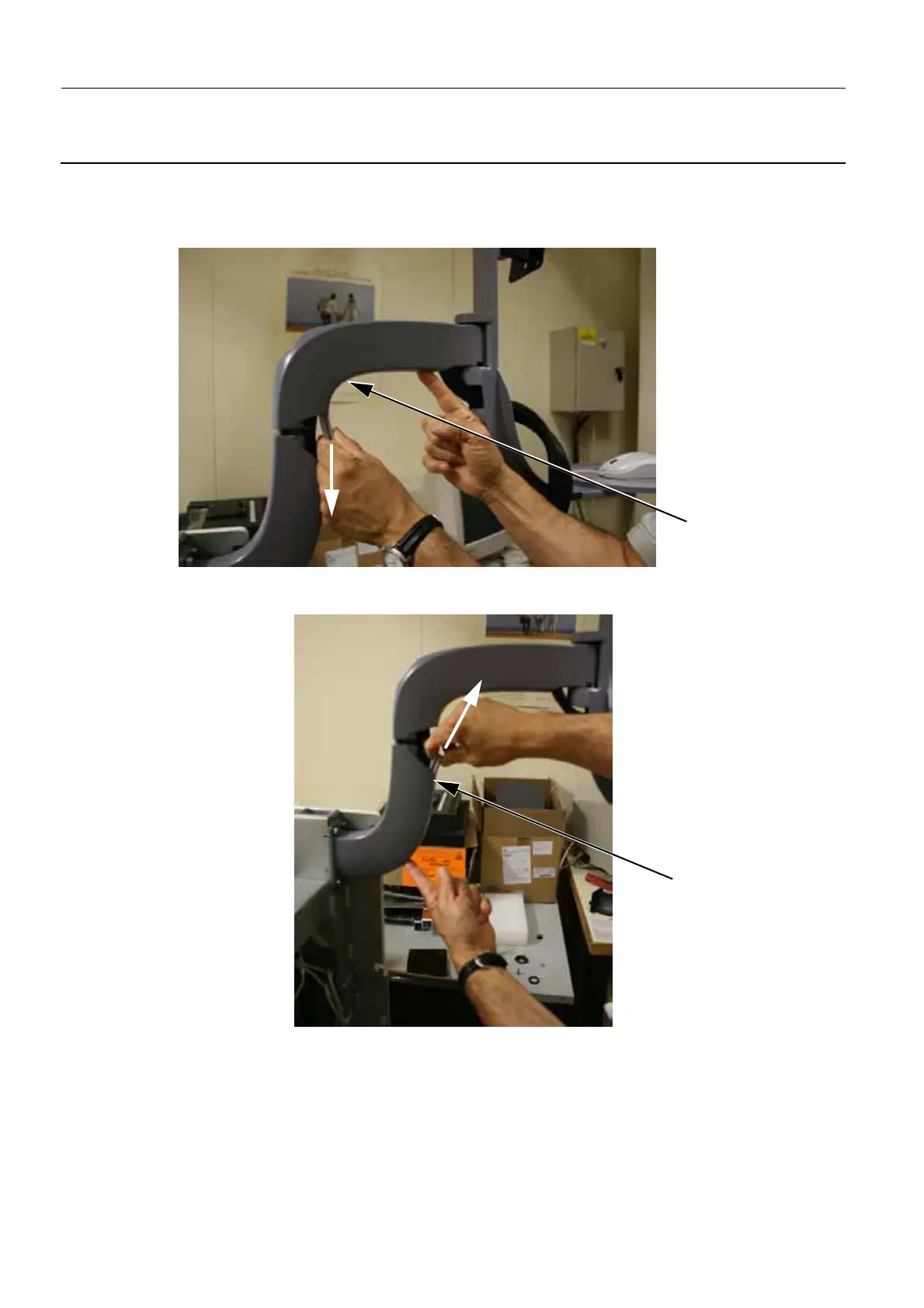

1. Carefully pull on the upper silicone mask (1) to remove it from the rotative arm. Store the upper sili-
cone mask in a clean place.
2. Carefully pull on the lower silicone mask (2) to remove it from the rotative arm support. Store the
lower silicone mask in a clean place.
3. Disconnect the mouse cable from the ADS computer.
4. Cut the cable ties that secure the monitor cables and mouse cable to the Control Station framework
1
2
