Job Card PHY A009 - Opposite Side Rotative Arm Installation
Page no. 417 Chapter 6
JC-PHY-A-009.fm
(3) and harness (4).

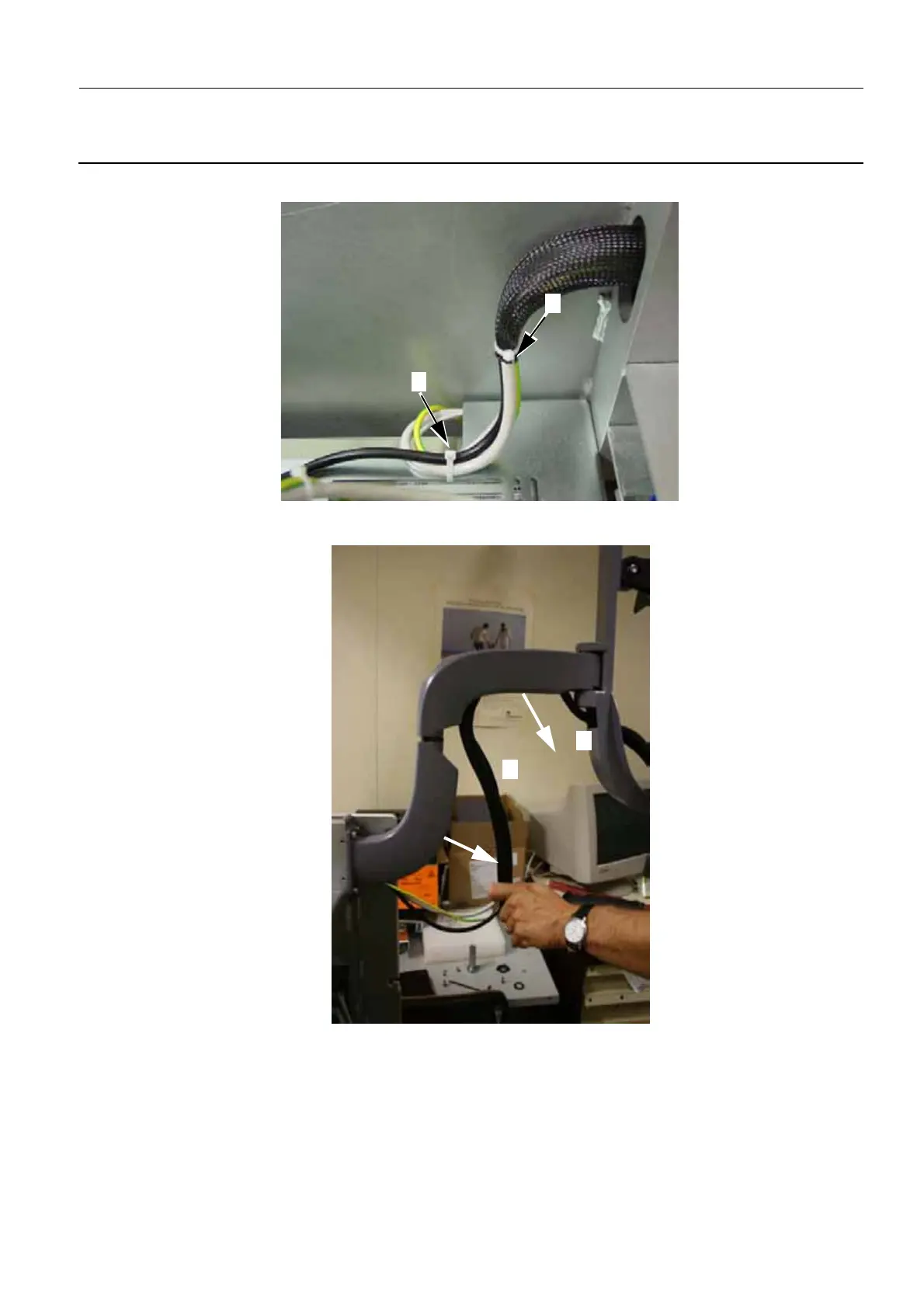

5. Carefully pull the harness (5) from the upper and lower parts of the rotative arm.
6. Extract the mouse cable (6) from the hole in the harness, and from the opening of the monitor sup-
