Job Card PHY A009 - Opposite Side Rotative Arm Installation
port (7). Remove the mouse and store it in a clean place.
7. Extract the harness from the opening of the monitor support (7). To ease the harness extraction, pull
the harness back from the monitor cables and remove the monitor cables from opening of the moni-
tor support in the following order:
• Ground cable
• DVI video cable
• Power cable

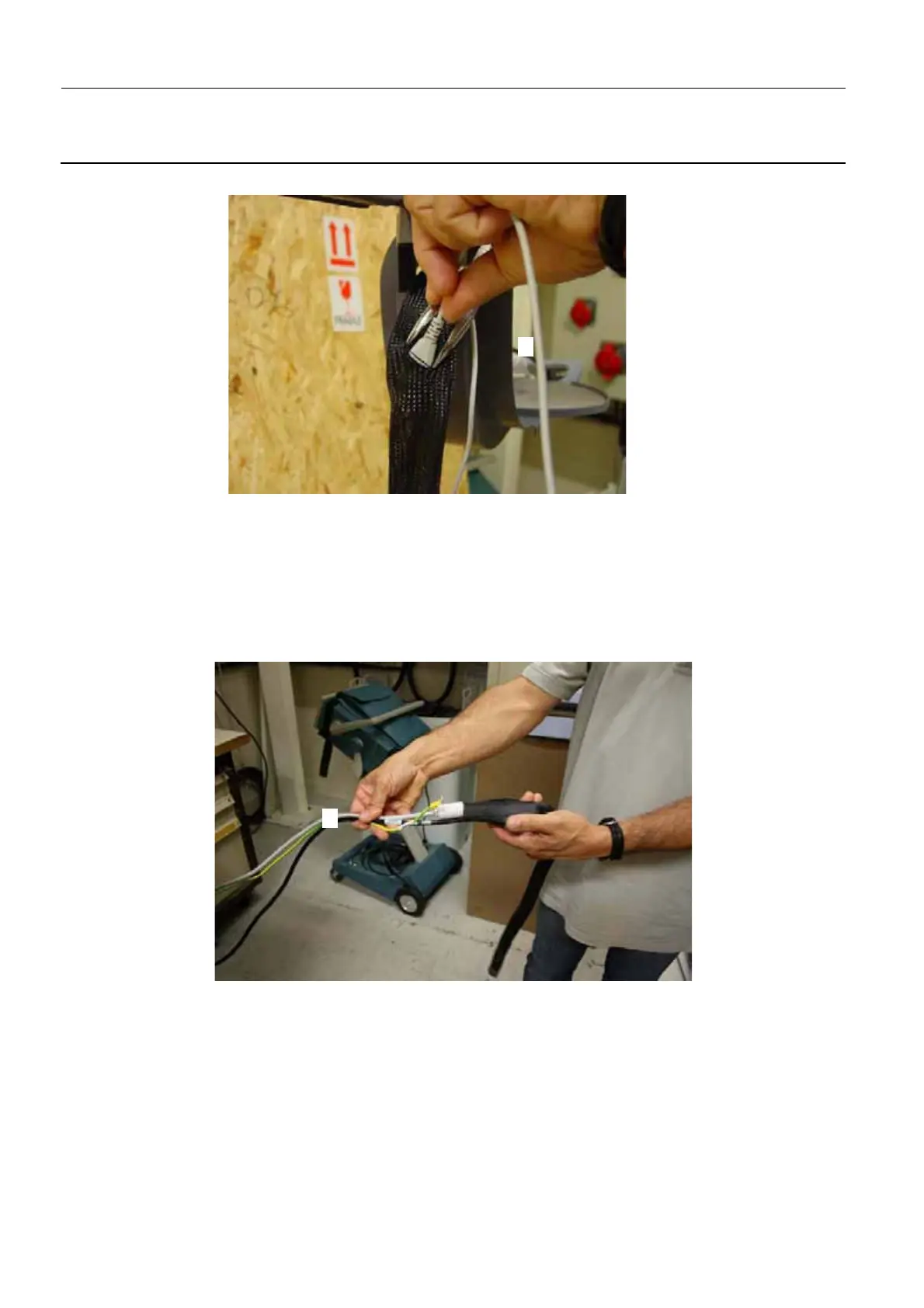

8. Remove the monitor cables (8) from the harness, and put the harness in a clean place.
9. Pass each of the monitor cables through the opening of the rotative arm support and store them on
top of the Control Station keyboard. To do this easily, proceed as described in the following sub-
steps.
6
8
To Next Page
