GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A009 - Opposite Side Rotative Arm Installation
Page no. 427 Chapter 6
JC-PHY-A-009.fm
26. Pass each of the monitor cables that you stored on top of the Control Station keyboard through the
opening of the rotative arm support. To do this easily, proceed as described in the following sub-
steps.

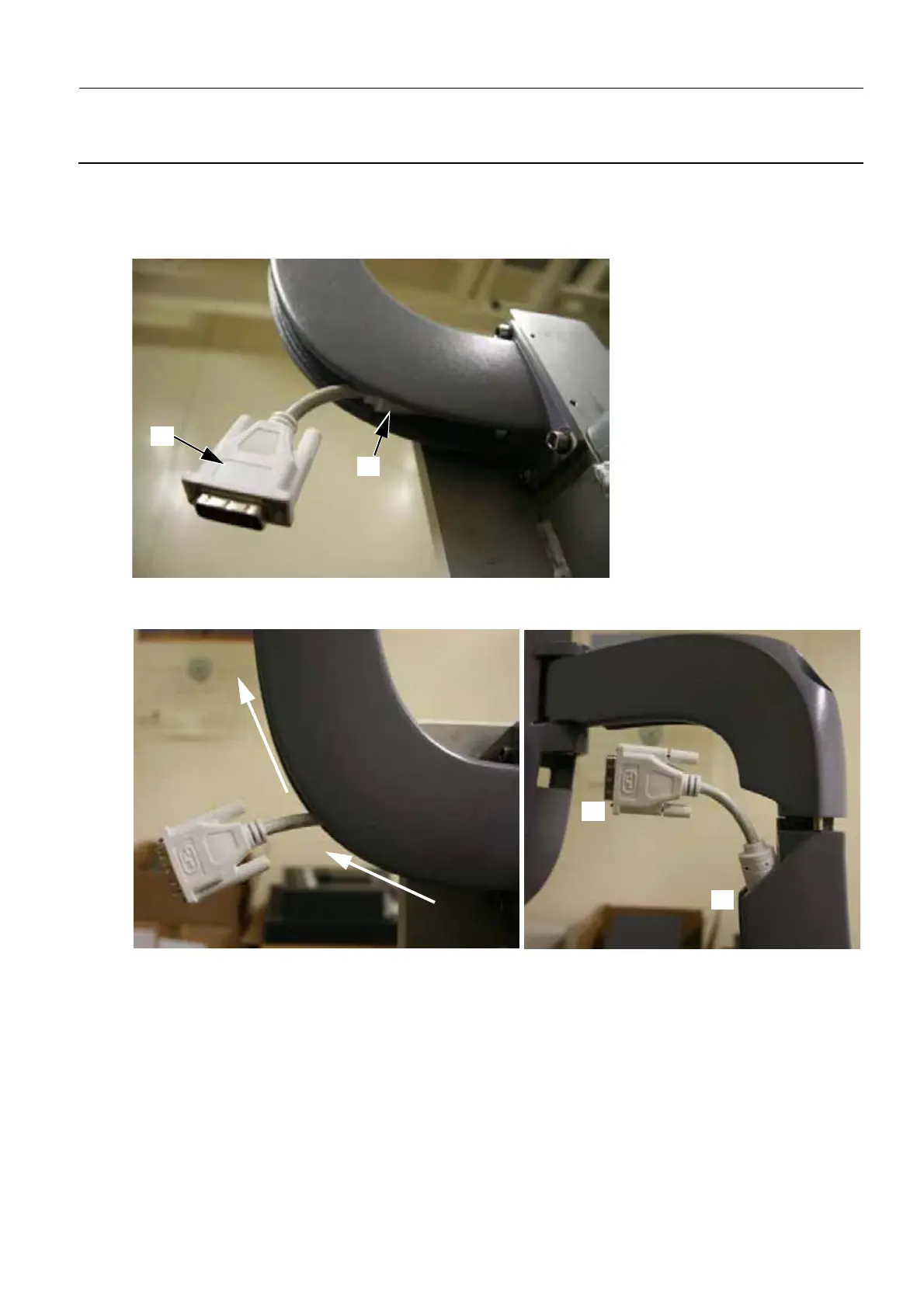

a. Thread the DVI video cable through the opening of the rotative arm support as shown below.
b. Thread the ferrite ring (32) of the DVI video cable inside the rotative arm support. While keeping
the DVI connector outside (33) move the DVI video cable to the top of the rotative arm support.
32
33
32
33
