Job Card PHY A009 - Opposite Side Rotative Arm Installation
Page no. 431 Chapter 6
JC-PHY-A-009.fm

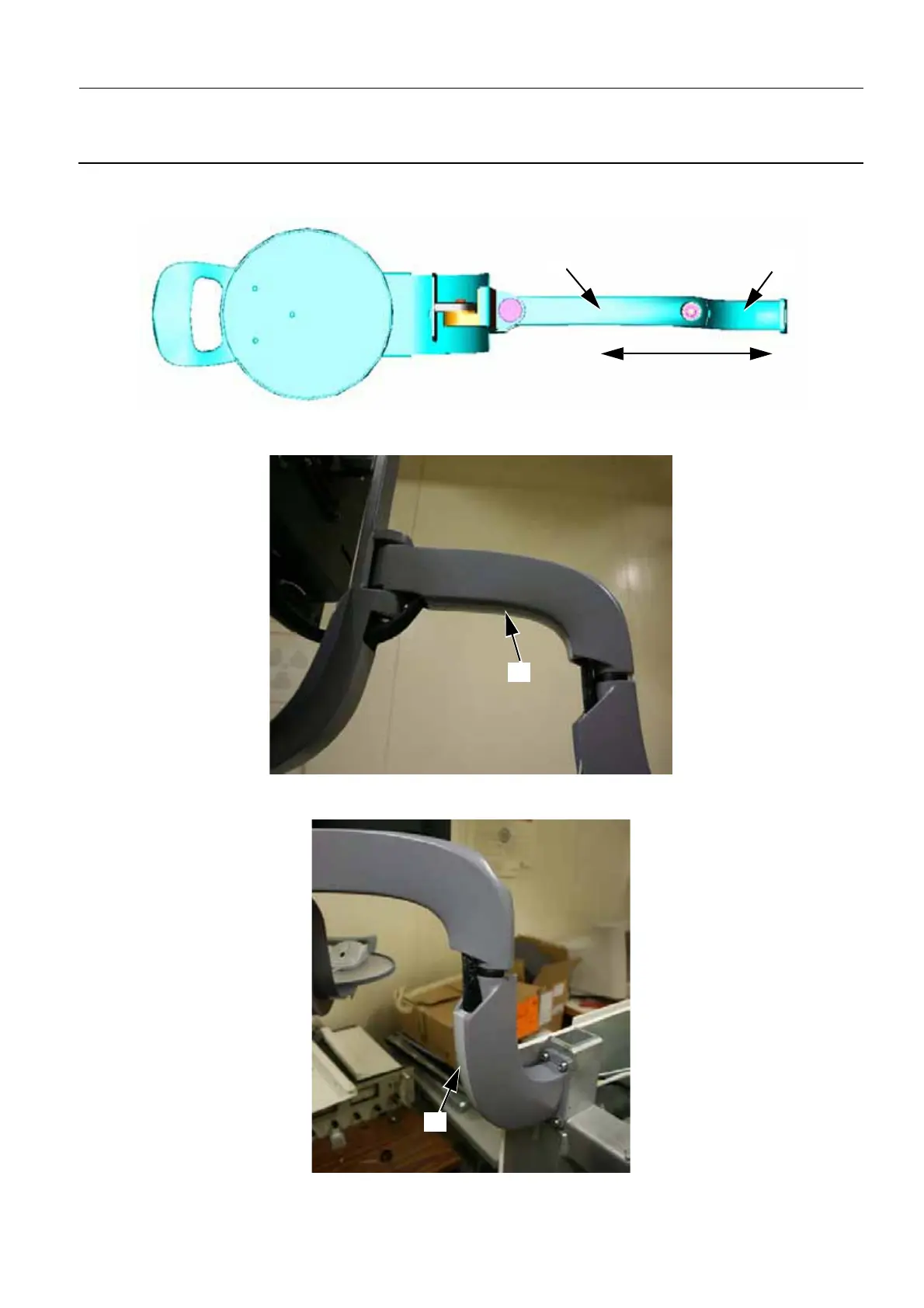

35. Ensure that the rotative arm (37) and rotative arm support (38) are aligned in the same plane (see
below). Carefully put the harness inside the rotative arm and rotative arm support.
36. Insert the upper silicone mask (shorter of the two) (39) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
37. Insert the lower silicone mask (longer of the two) (40) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
38
37
Aligned in the same plane.
39
40
