Chapter 6 Page no. 436
JC-PHY-A-010.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A010 - Mount LCD Monitor on Control Station
6 PROCEDURE
Note:
The Control Station supports 18" and 19" Monitors, and the optional 21" 3 MP Monitor.
Follow section 6-1, Mounting an 18" or 19" Monitor for 18" and 19" Monitors.
Follow section 6-2, Mounting the optional 21" 3 MP Monitor for the optional 21" 3 MP Monitor.
6-1 Mounting an 18" or 19" Monitor
When appropriate, the steps below show images for both arms.

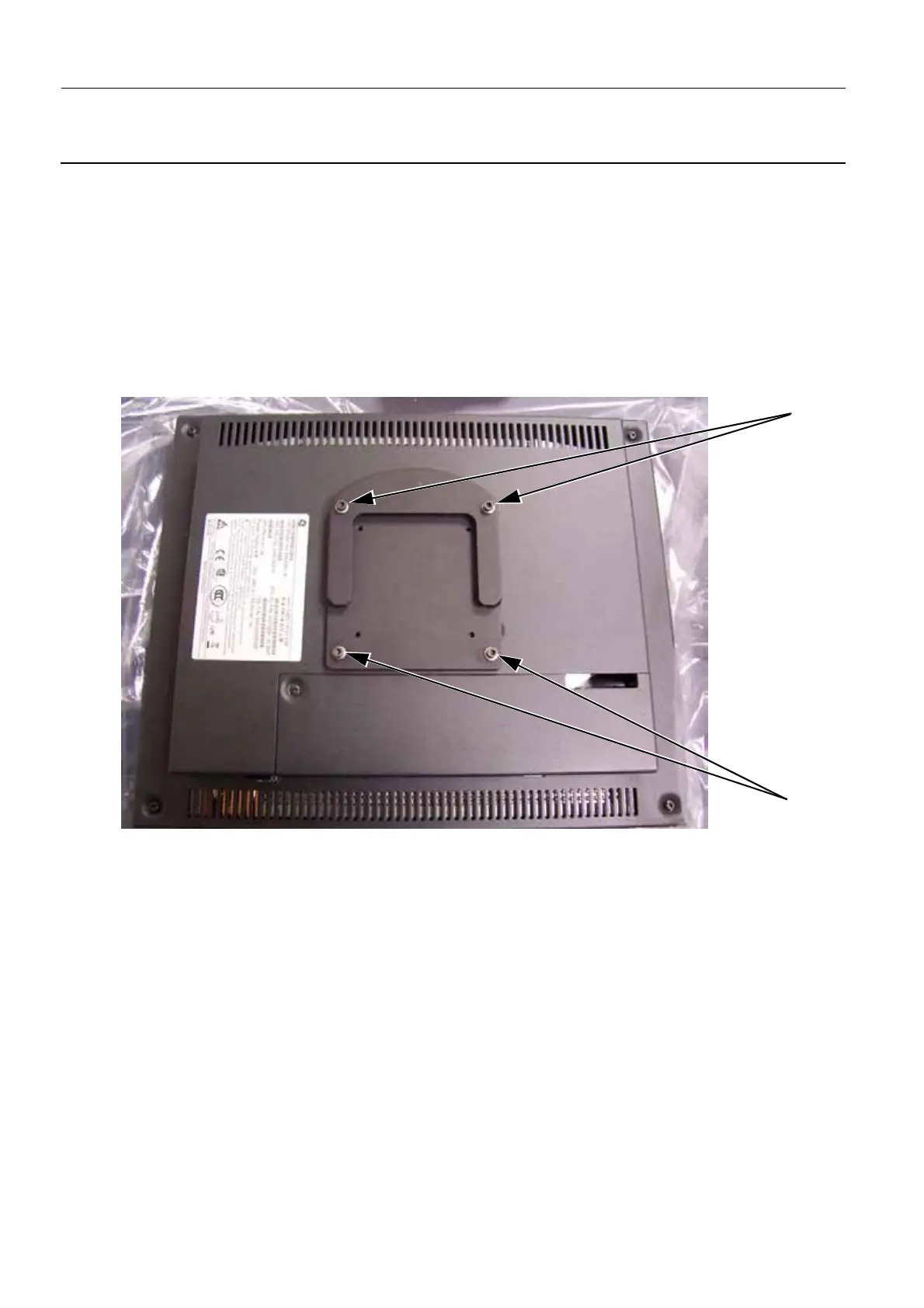

1. Place the monitor on a protected surface. Fix the screen plate to the monitor using washers and two
20 mm screws (1) on the top, and two 16 mm screws (2) on the bottom.
2. Put the monitor in place (the screen plate adjusted on the sliding pivot).
3. Fix the sliding pivot with the monitor using the four inner screws of 8 mm length (3) (3 mm allen
2
1
