GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A010 - Mount LCD Monitor on Control Station
Page no. 441 Chapter 6
JC-PHY-A-010.fm

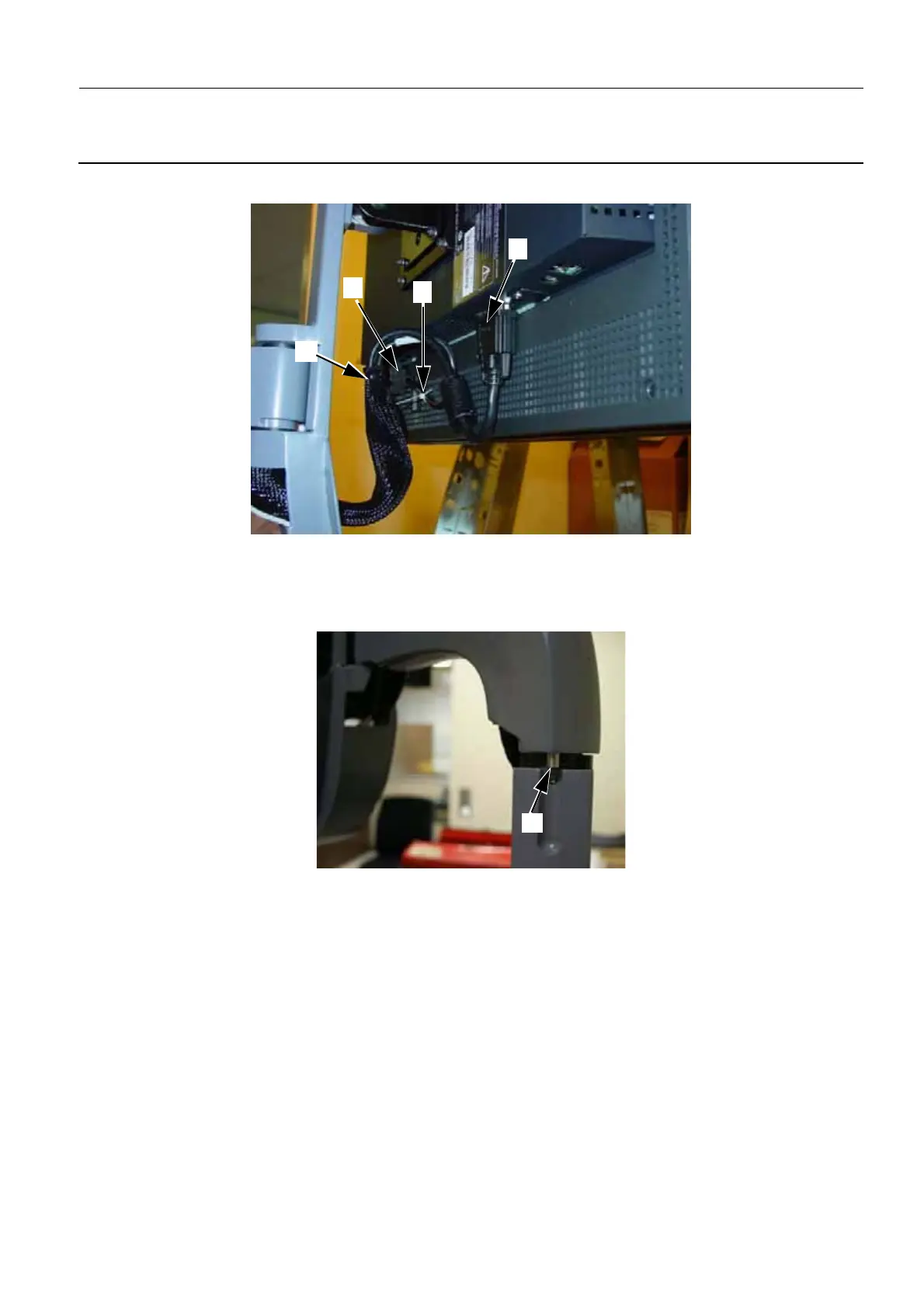

6. Connect the DVI cable (7).
7. Connect the power supply cable (8) and secure it with a cable tie (9).
8. Close the top of the harness with a black cable tie (10).
9. Perform a monitor collision check. Check that the stop bracket and stop bracket screw (11) is cor-
rectly positioned to avoid a collision with the radiation screen.
Note:
Later on during the electrical installation phase, remember to perform Job Card ELE A008 - Con-
figuring the 21-inch 3MP Monitor on page 549 so that the ADS software is correctly configured for
the 21" 3 MP Monitor.
8
9
7
10
11
To Next Page
