Job Card PHY A014 - Connect Gantry to Control Station
Page no. 461 Chapter 6
JC-PHY-A-014.fm
6-4 Distribution of AC Power
Check that power inputs to the Control Station component components are correctly connected to the
UPS AC power outputs. The Control Station components include the AWS, IDC, Ethernet switch, and
LCD Monitor.
6-5 Routing and Connection of Earth Cable

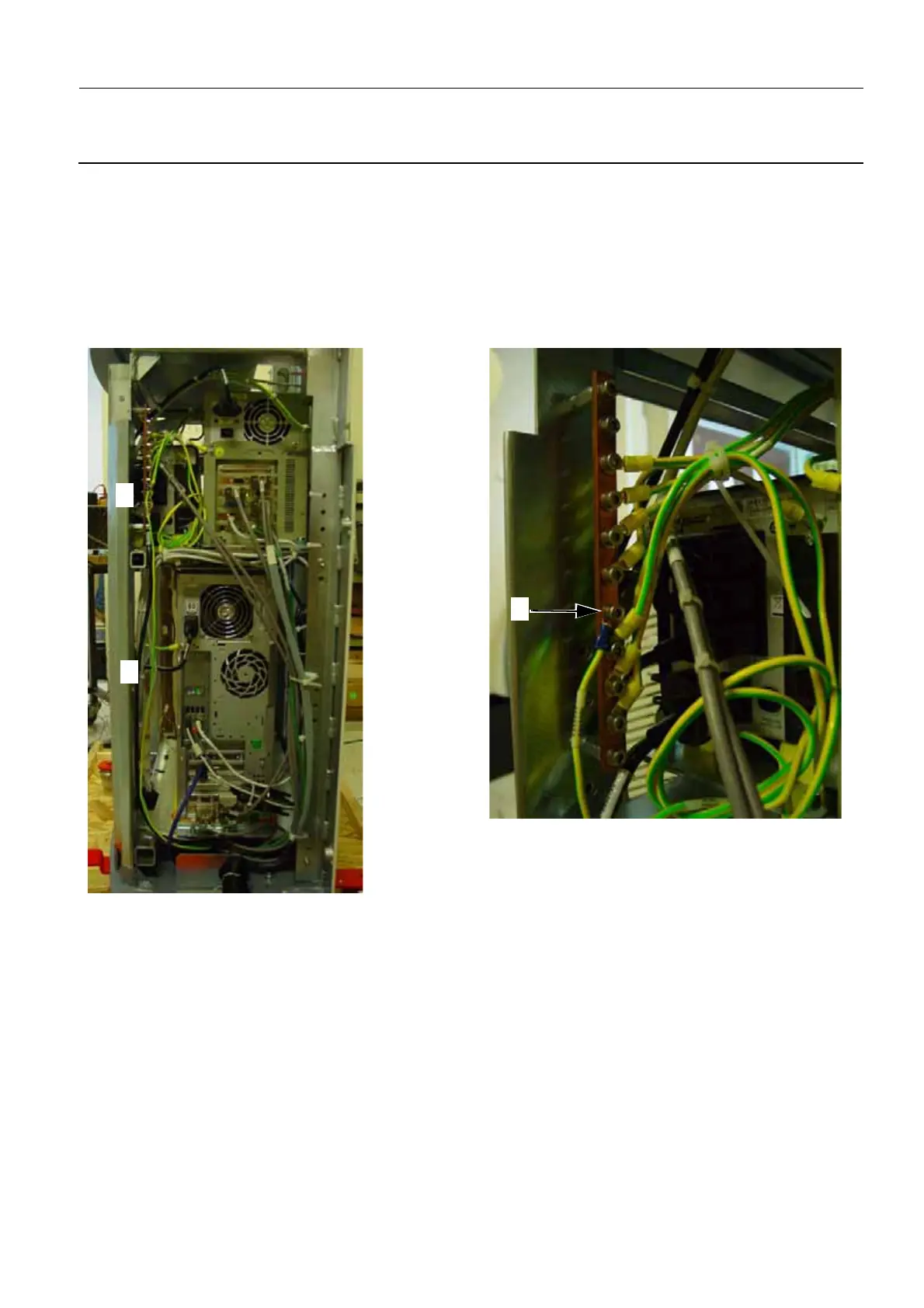

Route the Earth Cable from the Gantry up the front matellic cable support (A) and connect it to the Con-
trol Bar (B) as indicated below.
A
AB
AB
