Chapter 6 Page no. 460
JC-PHY-A-014.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A014 - Connect Gantry to Control Station
6-3 Securing the Cables

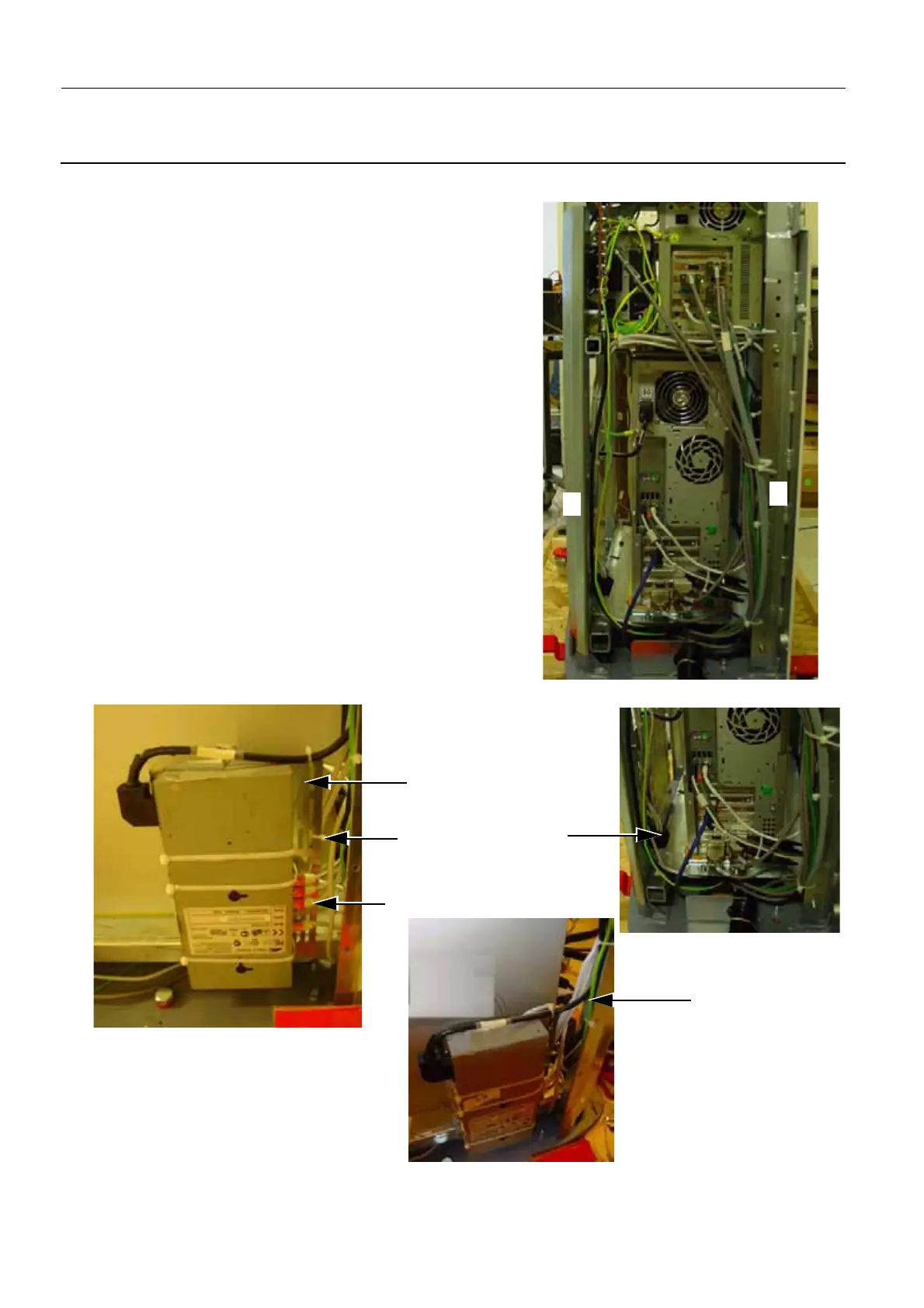

You must minimize the possibility of problems due to elec-
tromagnetic interference. The power, Ethernet, and data
cables from the harness conduit must be run separately,
and secured to the Control Station framework with cable
ties as follows:
• IDC, ADS and UPS data cables are secured to the
back metallic cable support (A).
• UPS AC supply input cable, Control Station ground
cable, and the other pre-connected IDC and AWS
power cables are connected to the front metallic cable
support (B).
• When connecting the Gantry Ethernet cable (C) to port
3 of the switch (i.e. directly below the pre-connected
Ethernet cables going to IDC and ADS), secure the
Ethernet cables from the Gantry, IDC and ADS with
the ferrite block (D). Make a figure of eight with any
access Ethernet cable, and secure the excess Ether-
net cable behind the securing plate (E) with a cable tie
(F). When securing the Ethernet cables, make sure
they are not in contact with the pre-routed AC/earth
cables (G) that are secured to the front metal support.
A
AB
D
C
E
F
G
