Job Card PHY A030 - Generator and Gantry Disconnection Reconnection

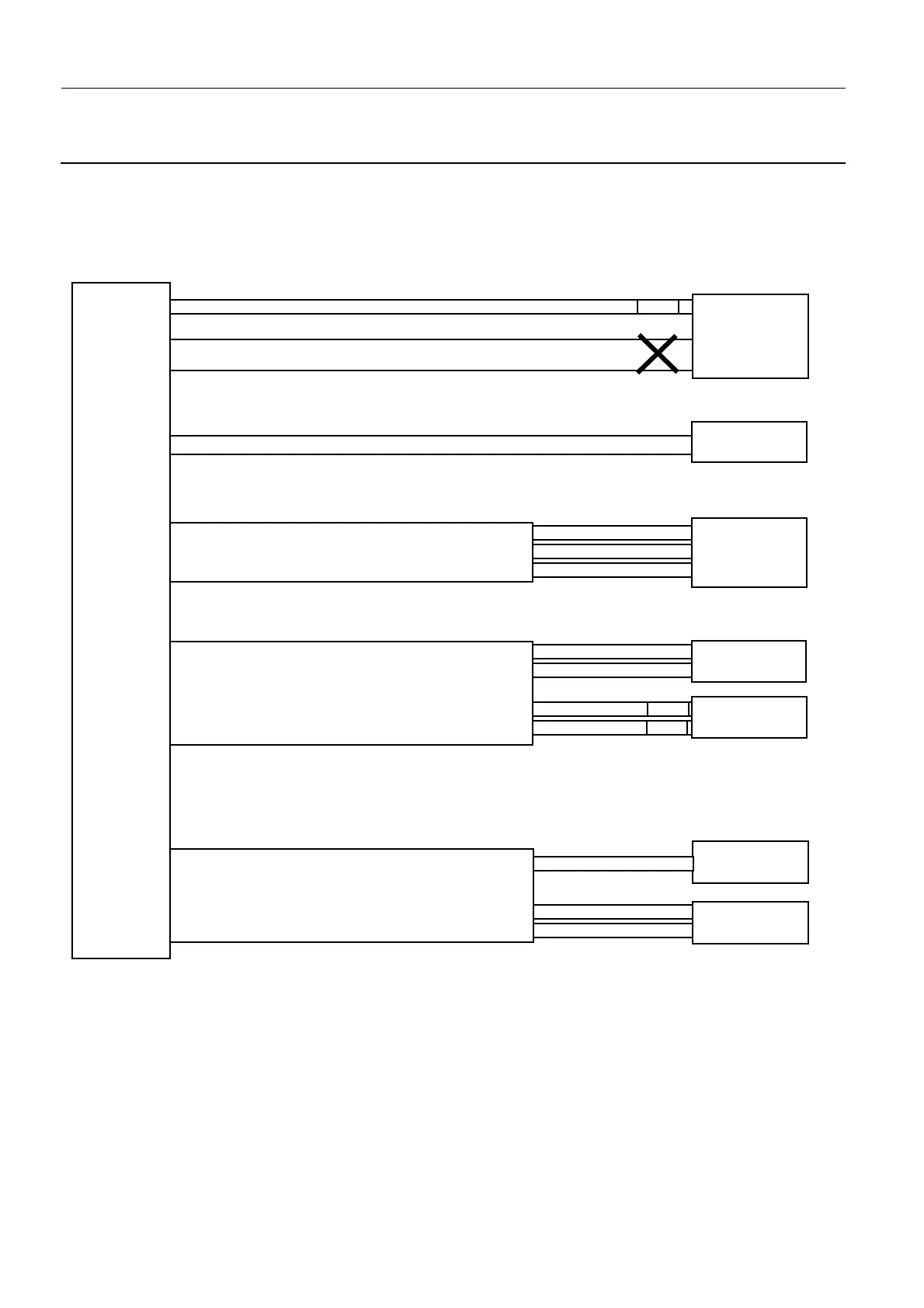

6-3 Conduit 2
Conduit 2 is secured to the bottom of the Gantry with a Generator cable bracket that is fixed to the side
Generator. The cables leave conduit 2 in close proximity to the HV Tank and are routed to lower parts of
the Gantry as illustrated below.
G300-PL2 XP1 (2381701)
Black conduit containing three optical fibers
400 PL2 XJ6 2381702
400 PL2 XJ7 2381704
400 PL2 XJ9 2381706
Gene W125 - 2381710
Black
Black
Black
Black Red
Blue
HV Cable labeled 2379842 REV 01
Black Cable - No Label
Red
Earth
HV Connector
HV Tank
XJ2
Anode Starter
300PL2
XJ6
XJ7
XJ9
Generator Interface
Board 400PL2
PT10
Supply Command
Board 200PL2
Bolt above XJ1
To TH1
To BR1
Orange Coupling
Block
Off-white Gantry AC Supply cable
labeled 2381711
Green/Yellow Earth
Pink PH1
Blue PH2
Earth
XJ3/PH1
XJ1/PH2
Mains Distribution
Board 200PL1
Power Line
Filter Box
Conduit 2
Cross indicates that the HV Cable is not connected in this Job Card,
but in Job Card PHY A015 - HT Cable Connection on page 467
