GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Page no. 481 Chapter 6
JC-PHY-A-030.fm
6-2 Conduit 1

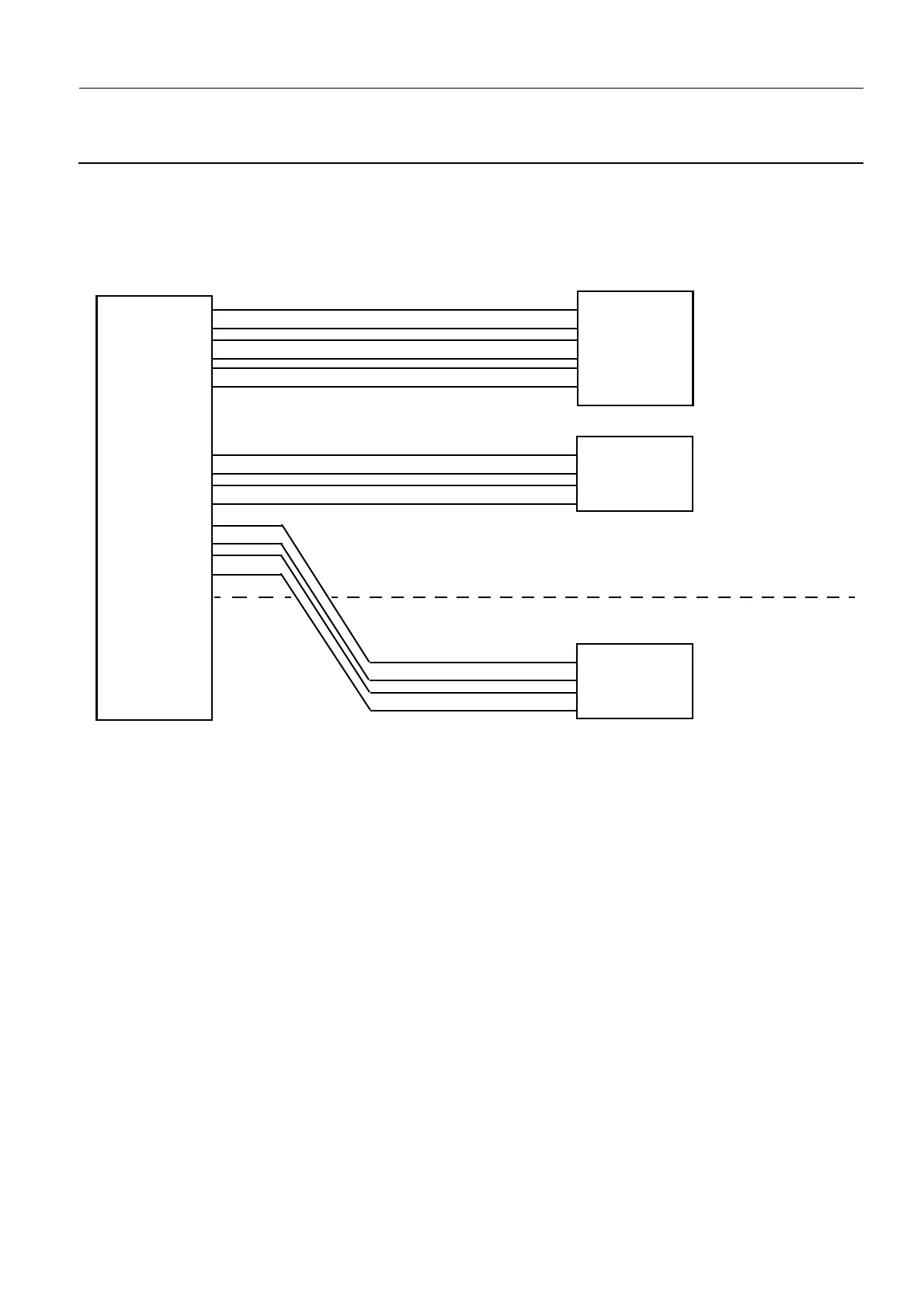

Conduit 1 runs up the back side of the Generator, secured by cable ties. The cables/pipes leave conduit
1 in close proximity to the Conditioner unit. They are routed to within the upper and lower parts of the
Generator as illustrated below.
Cond. Cab. Cond. 22266611 RS-232 (9-Pin)
In
Out
Coolant Pipe
Coolant Pipe
Conditioner Unit
XP4
XP5
MDR
XJ4 Cond. Cab. 2225470
XP5 Cond. Cab. 2386021
XJ10
XJ4
Generator Interface
Board 400PL2
XJ10 GENE 400PL2 2226613
XJ4 GENE 400PL2 2226623
Upper Part of Generator
Lower Part of Generator
Conduit 1
To Next Page
