GE Senographe DS User Manual

Chapter 6 Page no. 484
JC-PHY-A-030.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection

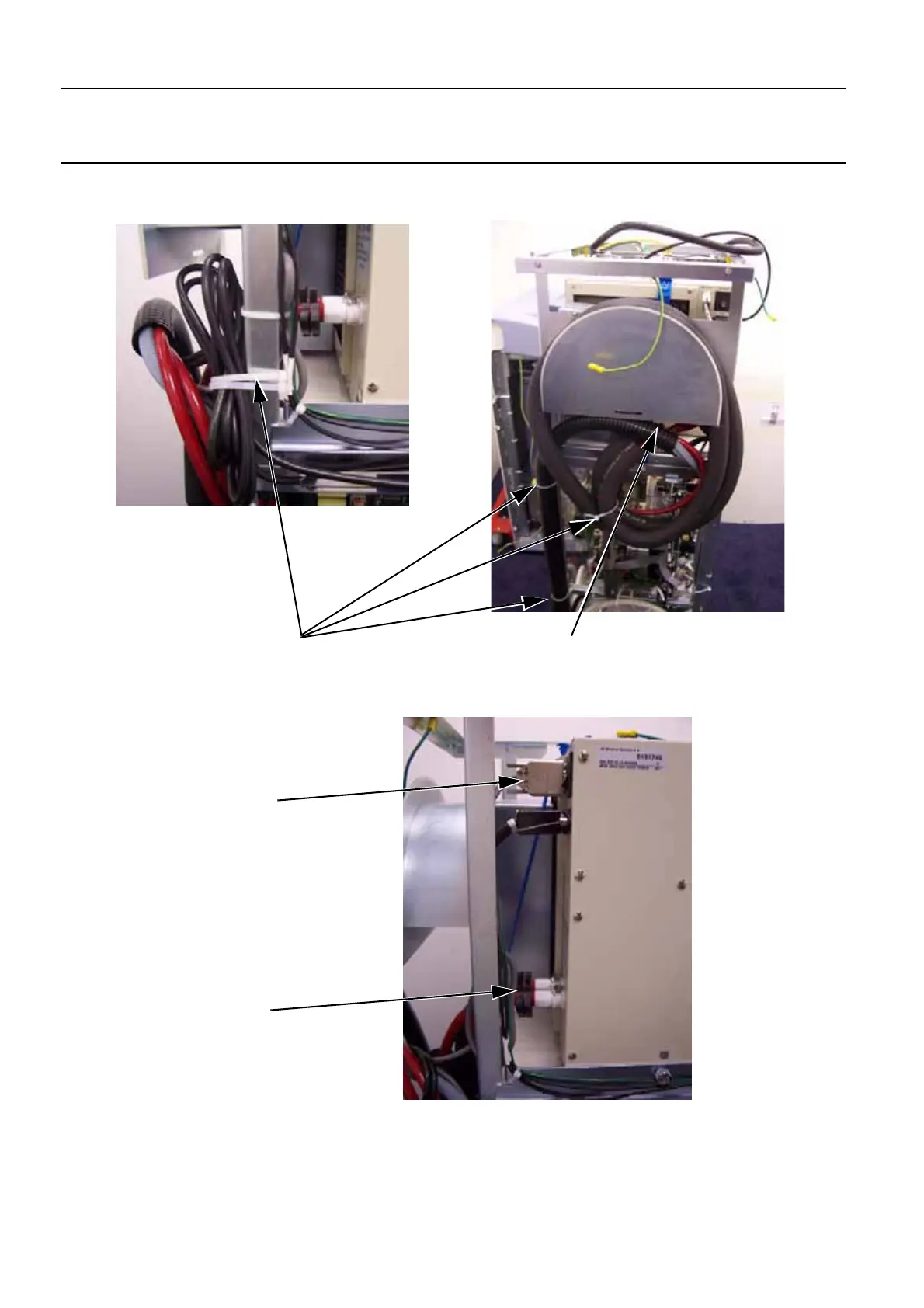

3. Remove the cable ties (2) that secure the cables/coolant pipes (3) from the Gantry to the framework.
Then un-ravel the cables/coolant pipes (3) from the Gantry from the side of the chiller.
4. Disconnect the two coolant pipes (4) from the Conditioner In and Out connectors, and disconnect
IDC data cable connection (5) from the Conditioner RS-232 connector.
5. Remove the cable ties (6) and disconnect the two power connectors (7) from the MDR XP4 and XP5
2
3
5
4
