GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Page no. 485 Chapter 6
JC-PHY-A-030.fm
connectors.
6. Group together the coolant pipes, power cables, and data cables that you disconnected during steps
2 to 5. You will connect these back to the Conditioner, MDR, and Generator Interface Board 400 PL2
later on once the equipment is in the hospital room.

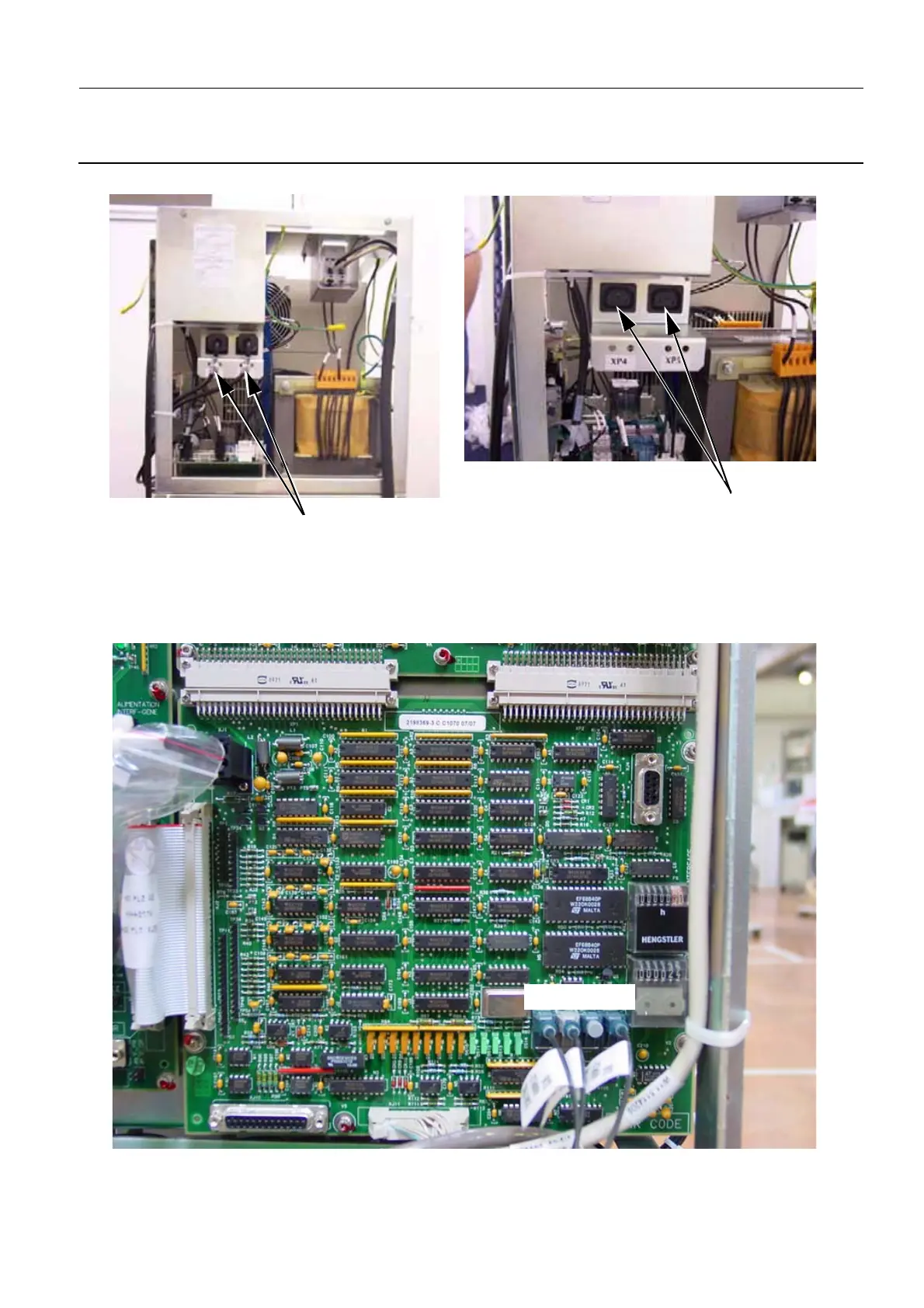

7. On the Generator Interface Board 400 PL2, disconnect the three optical fibers from the XJ6, XJ7,
and XJ9 connectors.
8. Remove the cable tie (8) securing the Gene W125 - 2381710 cable at the top left of the Supply Com-
6
7
XJ6 XJ7 XJ8 XJ9
