Chapter 6 Page no. 486
JC-PHY-A-030.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
mand Board 200 PL2.

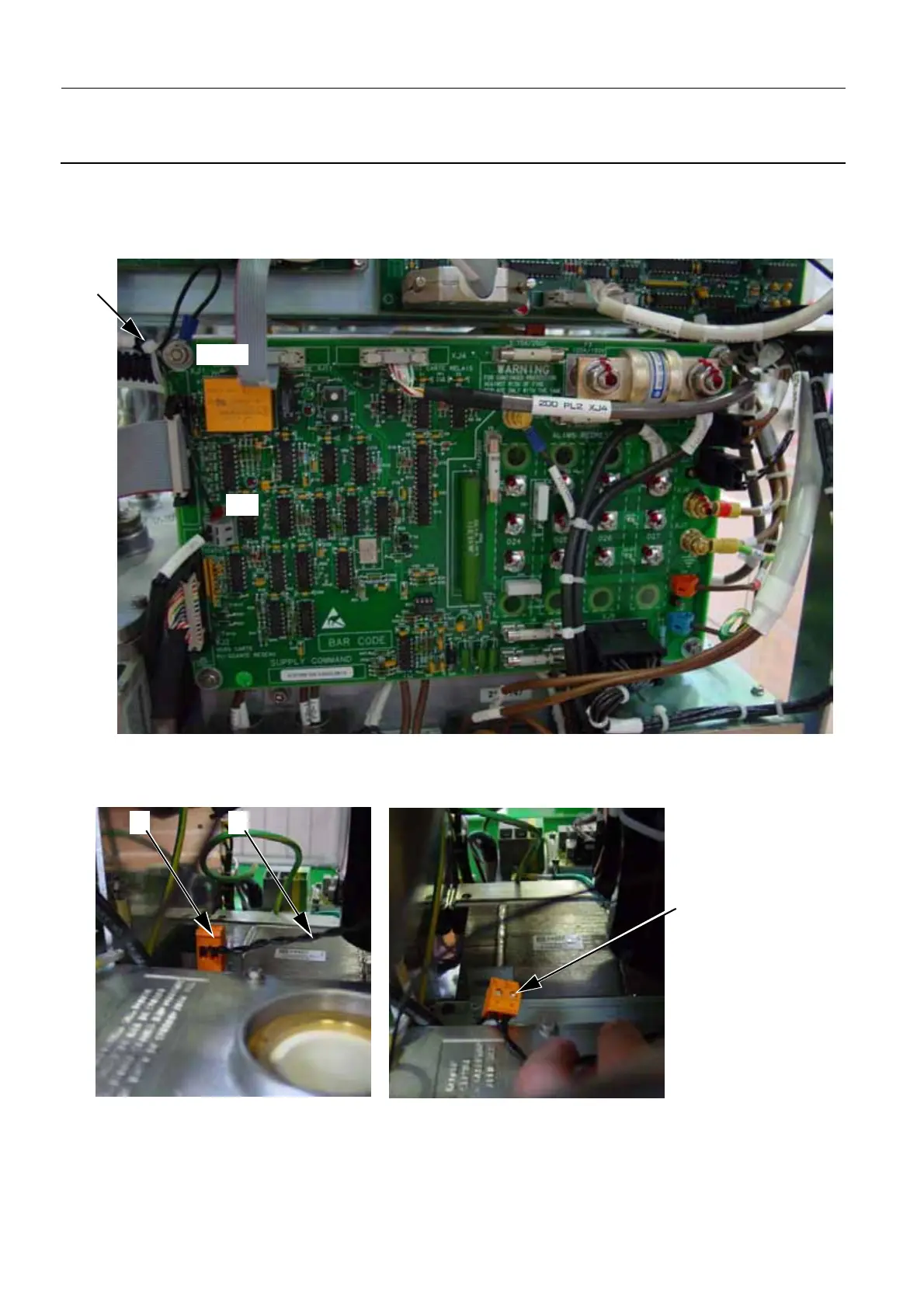

9. On the Supply Command Board 200 PL2, disconnect the black cables from the TP10 connector and
the top left bolt connection (ground) (8 mm open-ended wrench). These black cables originate from
the Gene W125 - 2381710 cable
10. From the orange coupling block (9) that connects to the BR1 and TH1 connections on the Auto
Transformer, remove the two black cables (10) (small screwdriver). The two black cables originate
from the Gene W125 - 2381710 cable.
TP10
Ground
8
9 10
If necessary, slide the
orange coupling block
from the Auto Transform-
er to access the screws.
To Next Page
