GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
8 GENERATOR RECONNECTION PROCEDURE
Use the following steps to reconnect the Gantry connections to the various parts of the Generator:

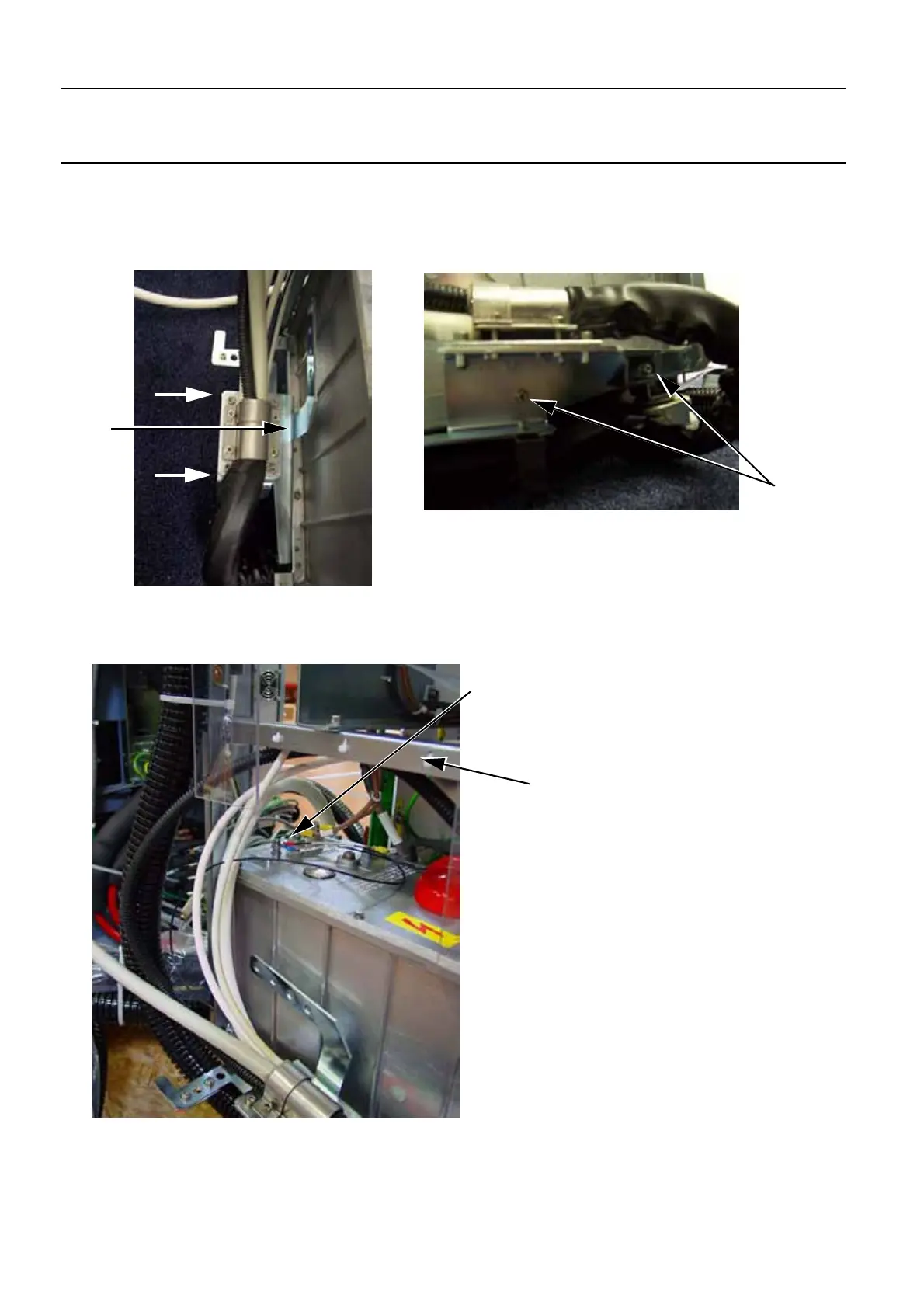

1. Secure the Generator cable bracket (1) to the Generator framework with the two allen screws (2)
(4 mm allen wrench) .
2. On the HT block, connect the X-ray Tube Housing Return Cable to the earth connector (8 mm open-
ended wrench). This cable is the black cable with the red plastic ending (3), labeled HT+ GND /
2381701.
3. Except for the HV cable, ensure that all of the cables leaving conduit 2 are routed underneath the
Generator framework horizontal side bar.
2
1
3
Horizontal Side Bar
