GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Page no. 493 Chapter 6
JC-PHY-A-030.fm

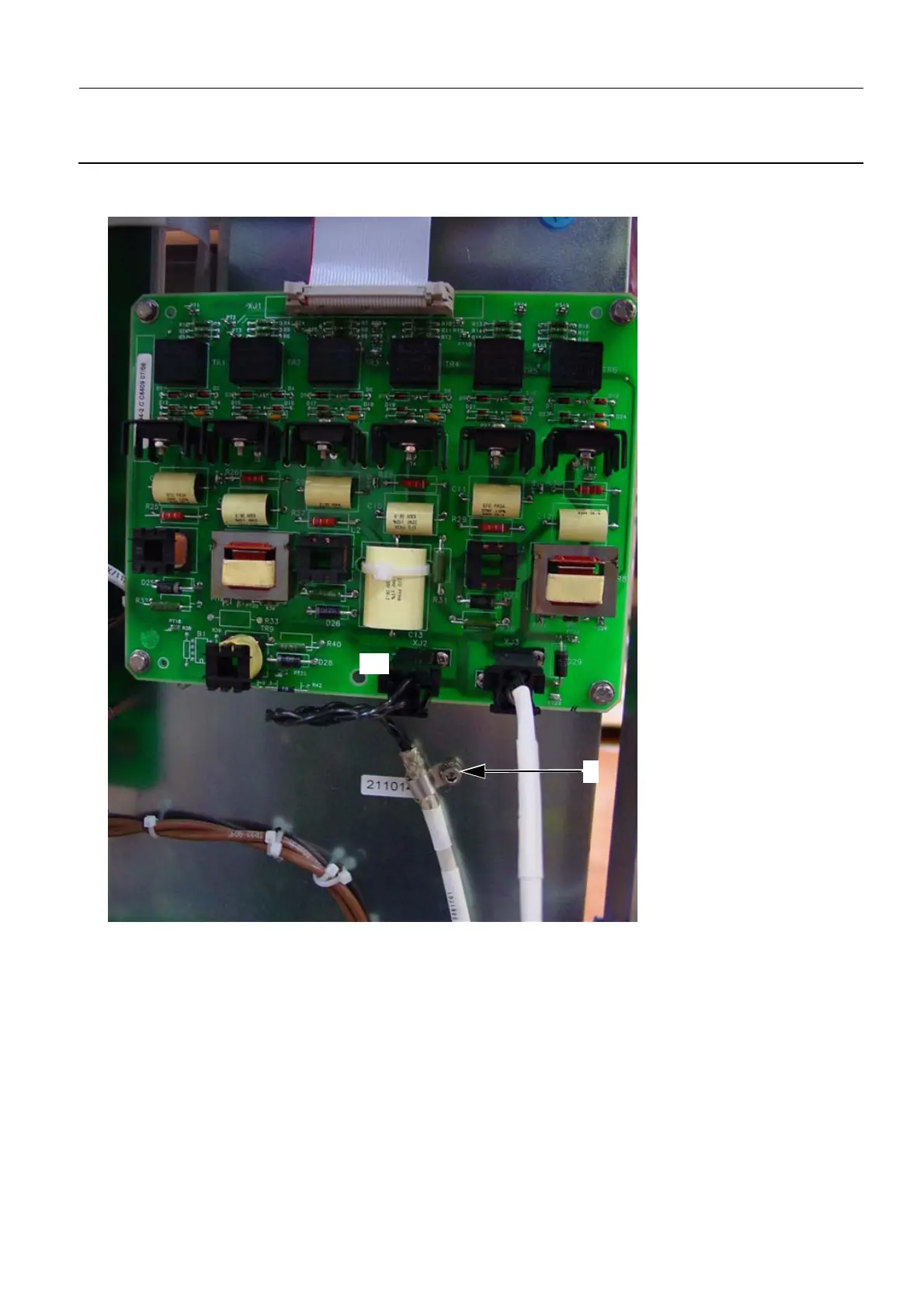

4. On the Anode Starter Board 300PL2, connect the cable labeled G300-PL2 XP1 2381701 to the XJ2
connector.
5. Secure the cable labeled
G300-PL2 XP1 2381701 to the Generator framework with the clamp (4)
(4 mm allen wrench). In order to avoid EMC interference, ensure that the clamp is firmly secured to
the exposed shielding on the cable labeled
G300-PL2 XP1 2381701.
XJ2
4
