GE Senographe DS User Manual

Chapter 6 Page no. 498
JC-PHY-A-030.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection

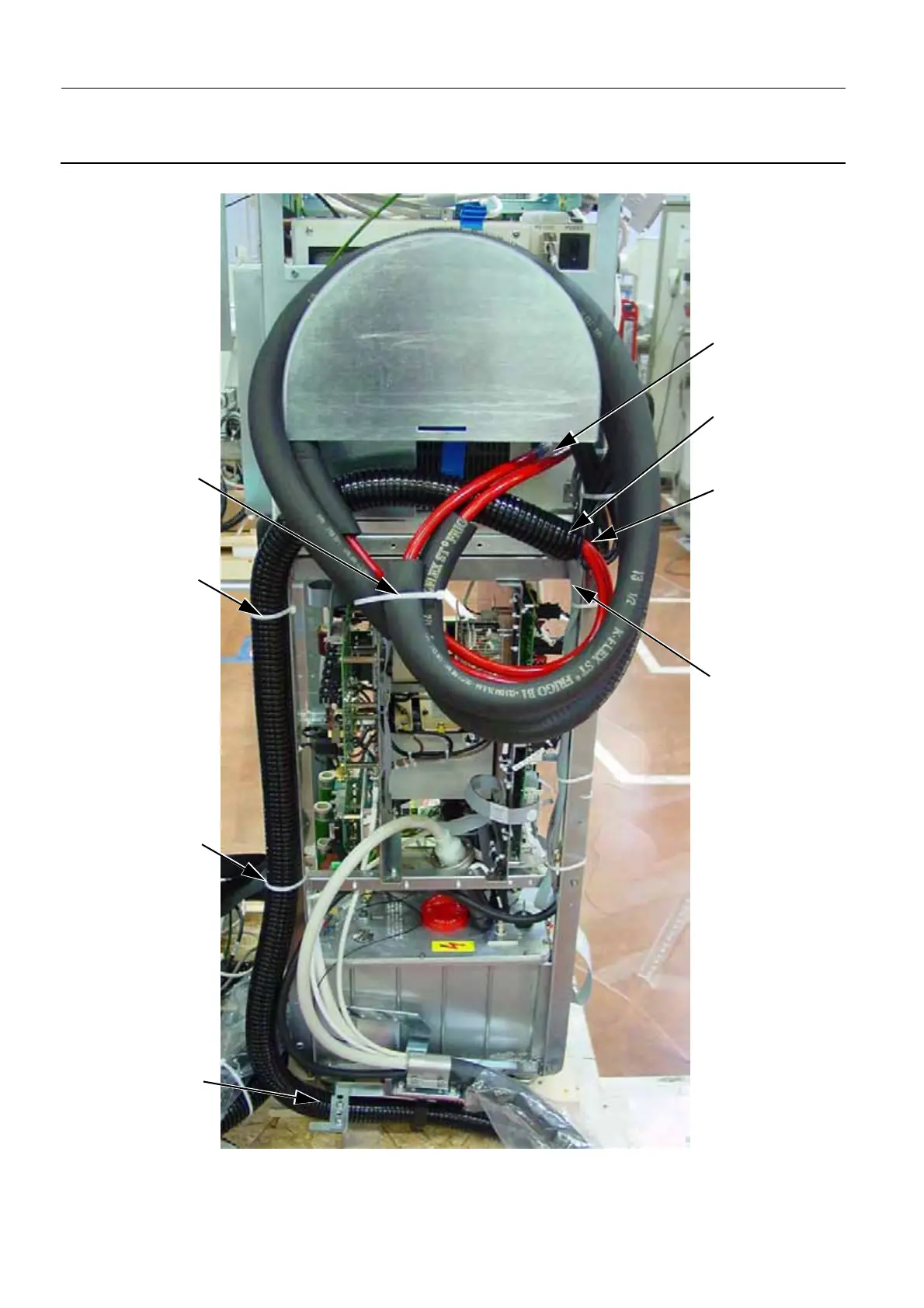

15. Route conduit 1 and secure it with cable ties as summarized in the diagram below.
Cable tie to secure
the middle of the
coolant tube loop.
End of conduit 1 at
bottom right corner of
Conditioner area.
Cable tie to conduit
1 to the Generator
framework.
Cable tie to conduit
1 to the Generator
framework.
Conduit 1 under-
neath Generator
cable bracket.
Route the two cables
labeled XJ4 GENE
400 PL2 2226623
and XJ10 GENE 400
PL2 2226613 to the
lower part of the Gen-
erator.
Route the following
cables to the upper
part of the Generator:
- the two power ca-
bles labeled XJ4
Cond. Cab. 2225470
and XP5 Cond. Cab.
2386021
- the data cable la-
beled Cond. Cab.
Cond. 2226611
Route the two coolant
pipes to the upper part
of the Generator.
