GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Page no. 499 Chapter 6
JC-PHY-A-030.fm

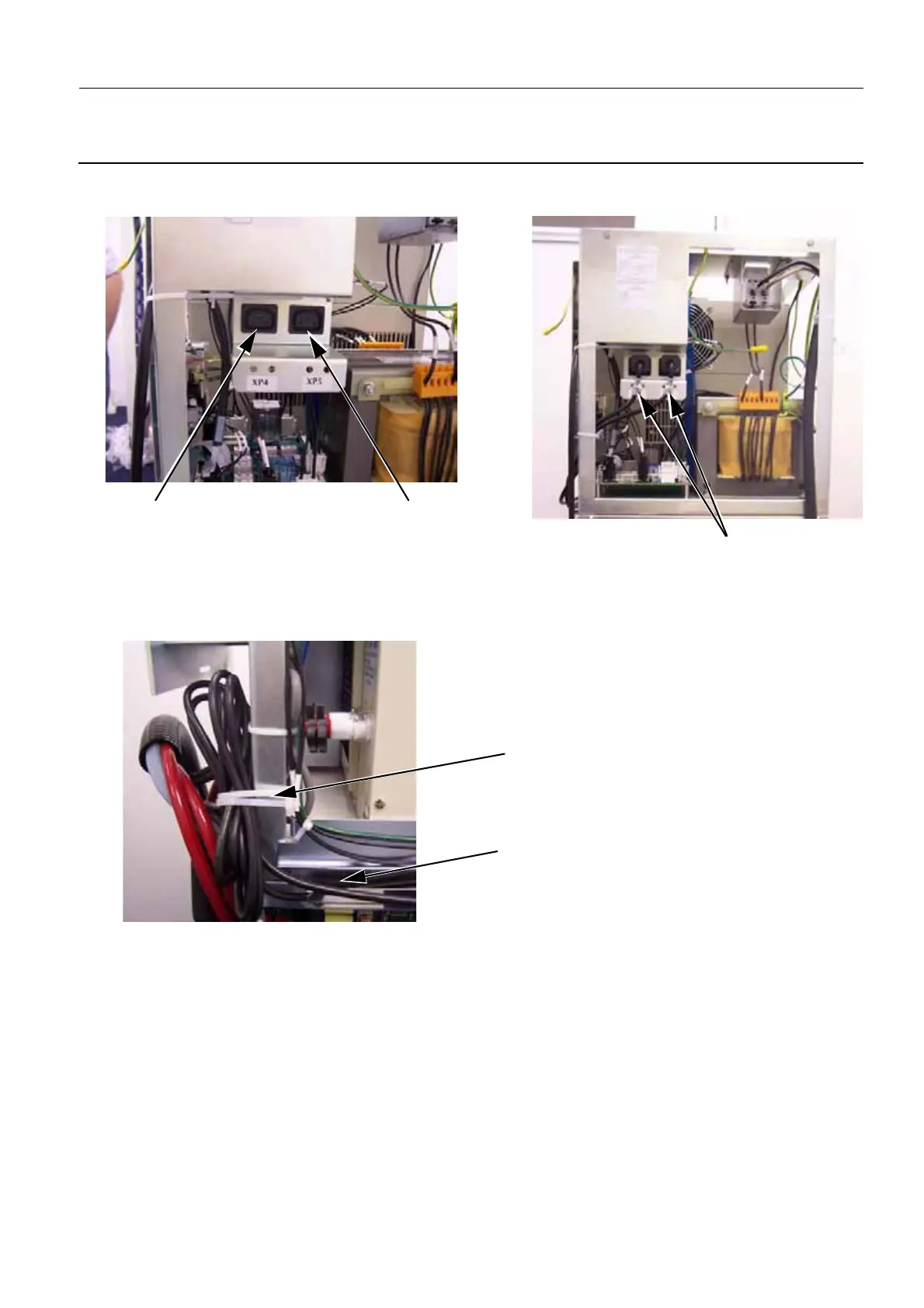

16. Connect the black power cables labeled XJ4 Cond. Cab. 2225470 and XP5 Cond. Cab. 2386021 to
the MDR XP4 and XP5 connectors, respectively.
17. Secure these two power cables to the MDR with the cable ties (12).
18. Route the power cables along the edge of the Generator framework (13) and secure any remaining
slack with cable ties (14).
12
XP4
XP5
14
13
