GE Senographe DS User Manual

Chapter 6 Page no. 500
JC-PHY-A-030.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection

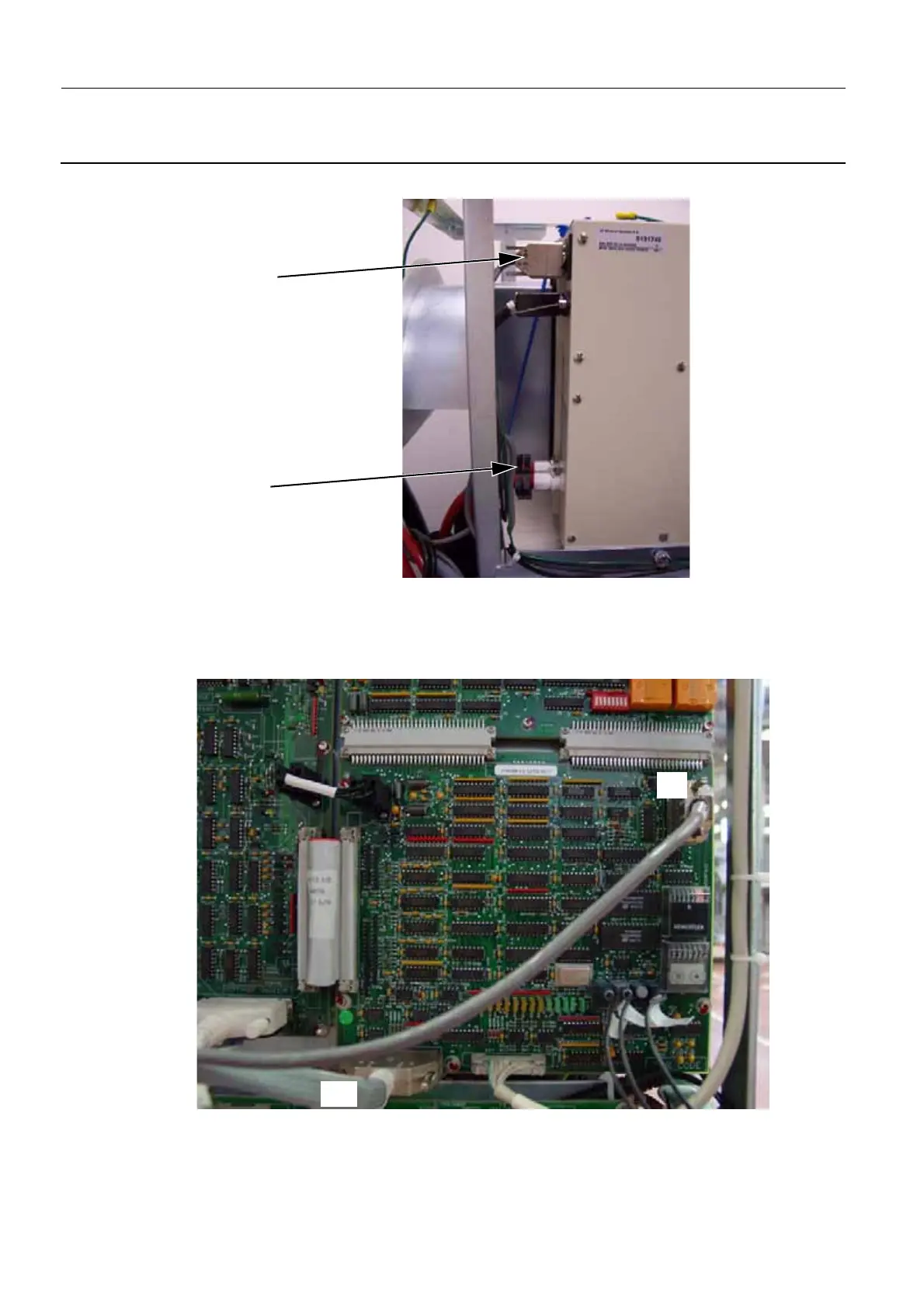

19. Connect the two coolant pipes (15) to the Conditioner In and Out connectors.
20. Connect IDC data cable (16) labeled Cond. Cab. Cond. 2226611 to the Conditioner RS-232 connec-
tor.
21. On the Generator Interface Board 400 PL2, connect the cables labeled XJ4 GENE 400 PL2 2226623
and XJ10 GENE 400 PL2 2226613 to the XJ4 and XJ10 connectors, respectively.
16
15
XJ4
XJ10
