GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Page no. 501 Chapter 6
JC-PHY-A-030.fm

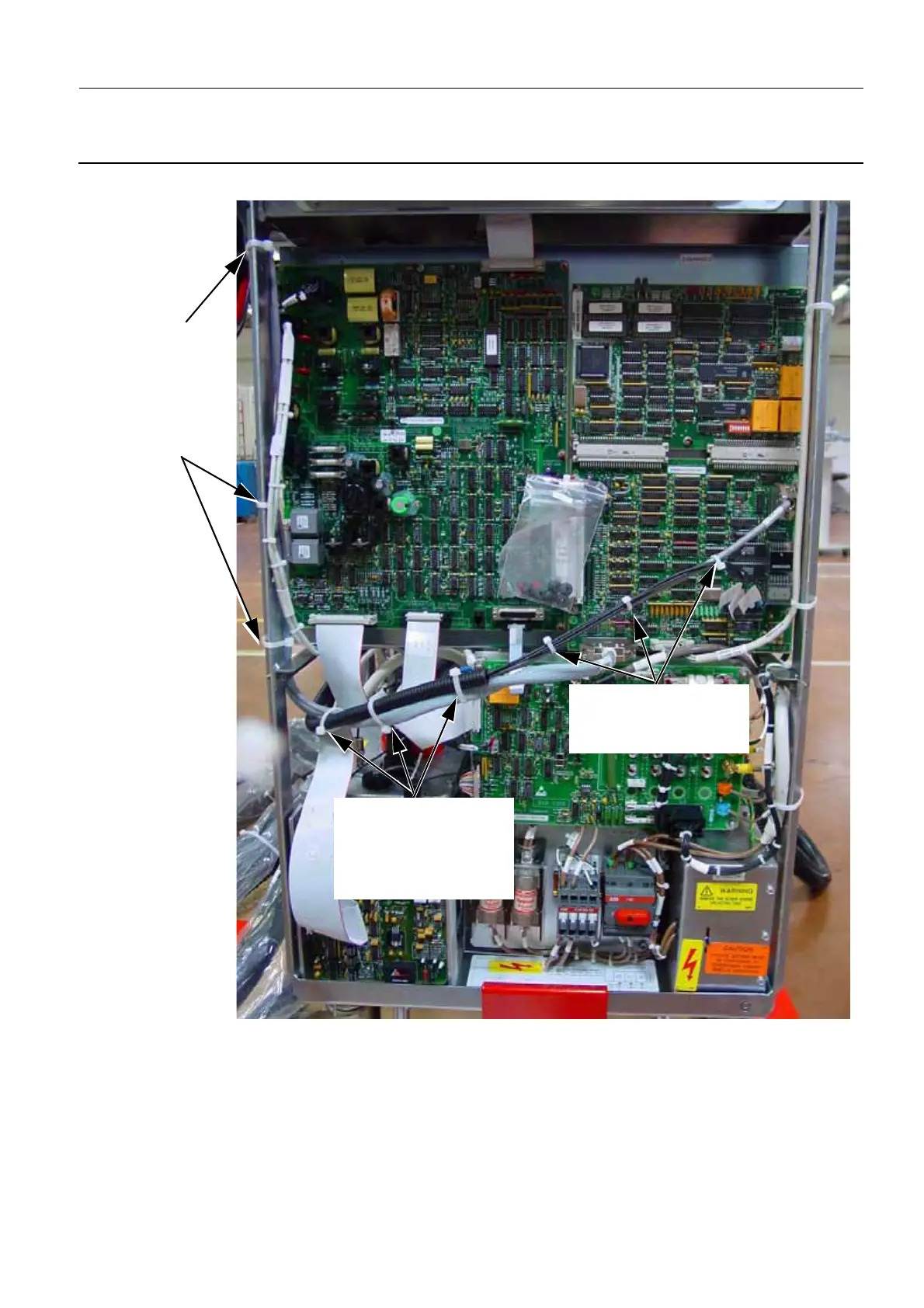

22. Secure and route the cables on the side of the Generator as shown in the diagram below.
Secure the two cables
labeled XJ4 GENE 400
PL2 2226623 and
XJ10 GENE 400 PL2
2226613 going to the
lower part of the Gen-
erator with cable ties.
Secure the cable labeled XJ4
GENE 400 PL2 2226623 from
conduit 1 and the optical fibers
from conduit 2 together.
Secure the two cables labeled
XJ4 GENE 400 PL2 2226623
and XJ10 GENE 400 PL2
2226613 from conduit 1 and
the optical fiber conduit from
conduit 2 together.
