GE Senographe DS User Manual

Chapter 6 Page no. 504
JC-PHY-A-040.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A040 - Remove/Reinstall Control Station Covers

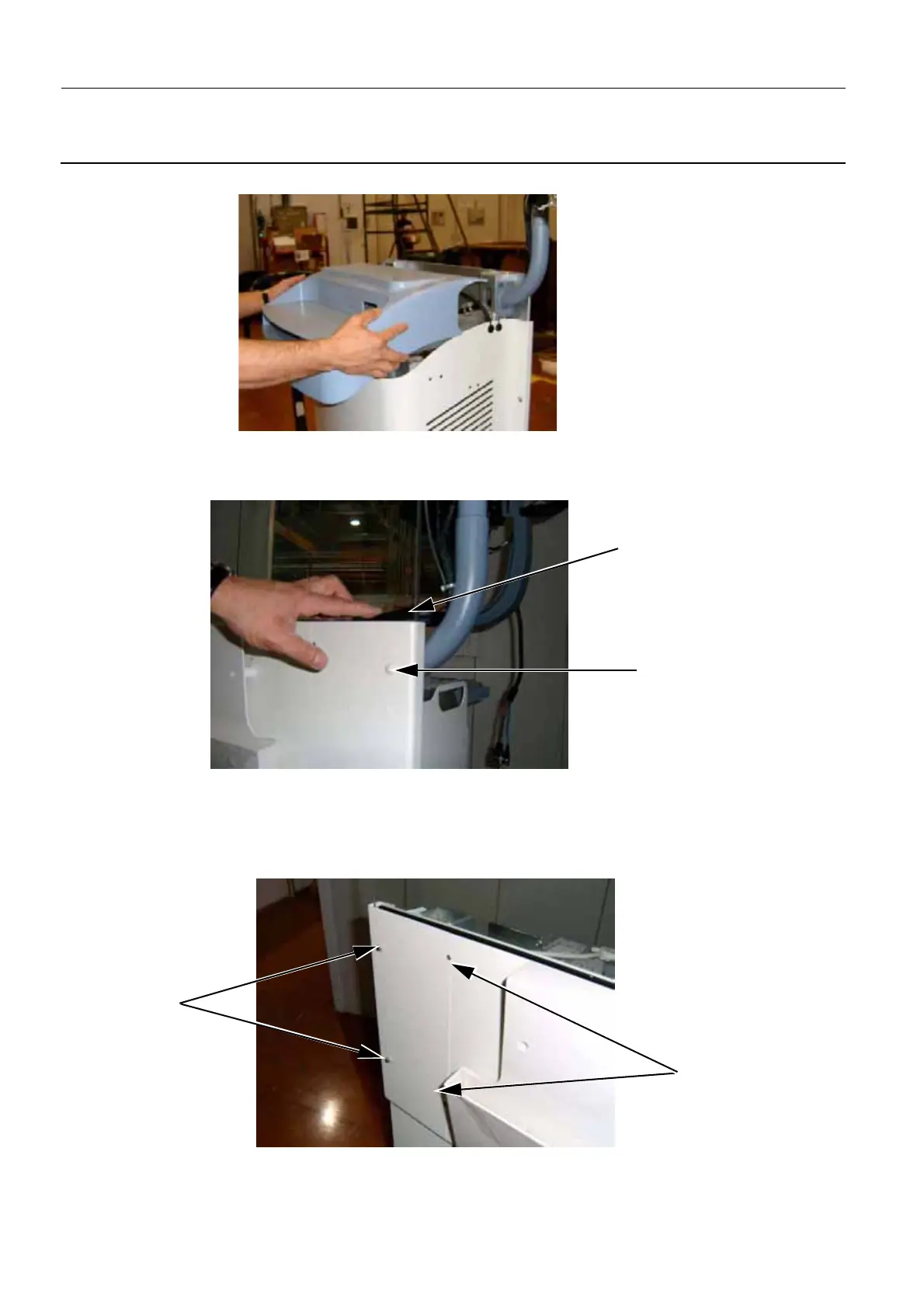

2. Carefully slide the blue top cover towards you to remove it.
6-2 Omega Cover (Front Cover) Disassembly
1. If the radiation screen is present, remove the main frame-radshield joint (1).
2. Use a screwdriver to remove all the screw covers (2) from the fixing points of the edge pinches.
3. On one edge pinch, loosen the two screws (3) and remove the two screws (4).
1
2
4
3
