GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A040 - Remove/Reinstall Control Station Covers
Page no. 505 Chapter 6
JC-PHY-A-040.fm
4. Remove the edge pinch and its pinch plate.

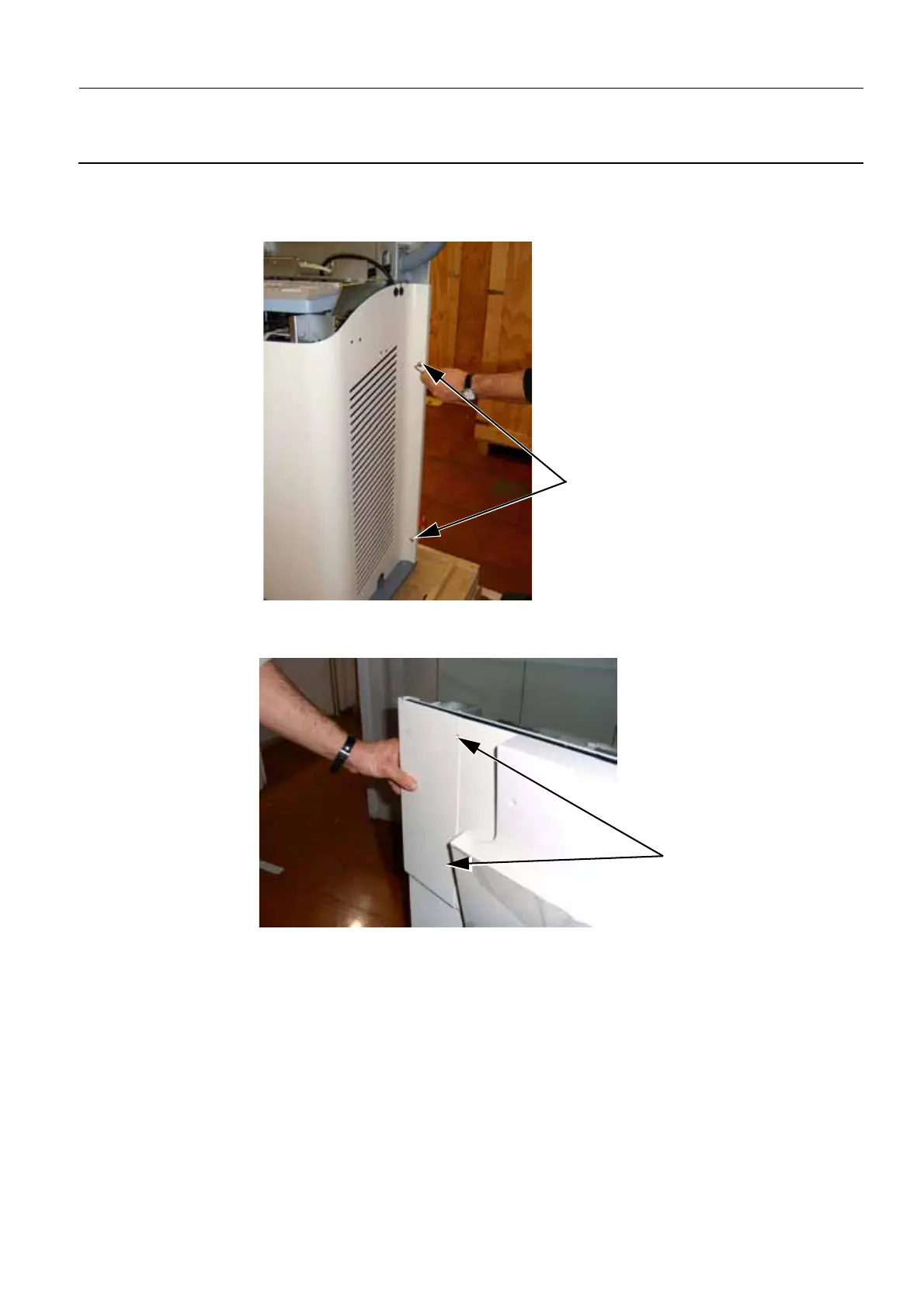

5. Remove the two screws (5) securing the same side of the Omega cover (3 mm allen wrench). Then
release the Omega cover from the back of the Control Station.
6. If the radiation screen is present, re-install the edge pinch that you previously removed in steps 3 and
4 and secure it with two screws (6).
7. If the radiation screen is present, carefully introduce the pinch plate (7) between the edge pinch and
5
6
