Chapter 6 Page no. 530
JC-PHY-A-044.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A044 - Remove/Reinstall Gantry Covers
• Reverse the procedure to replace the covers.
• Ensure that the Tube Head covers have been correctly fastened and all blanking disks are correctly
installed.
10 DETECTOR COVERS
10-1 Removing pilot systems detector covers
1. Set the arm to a convenient height.
2. Turn the Gantry power OFF.
3. Remove the Bucky.

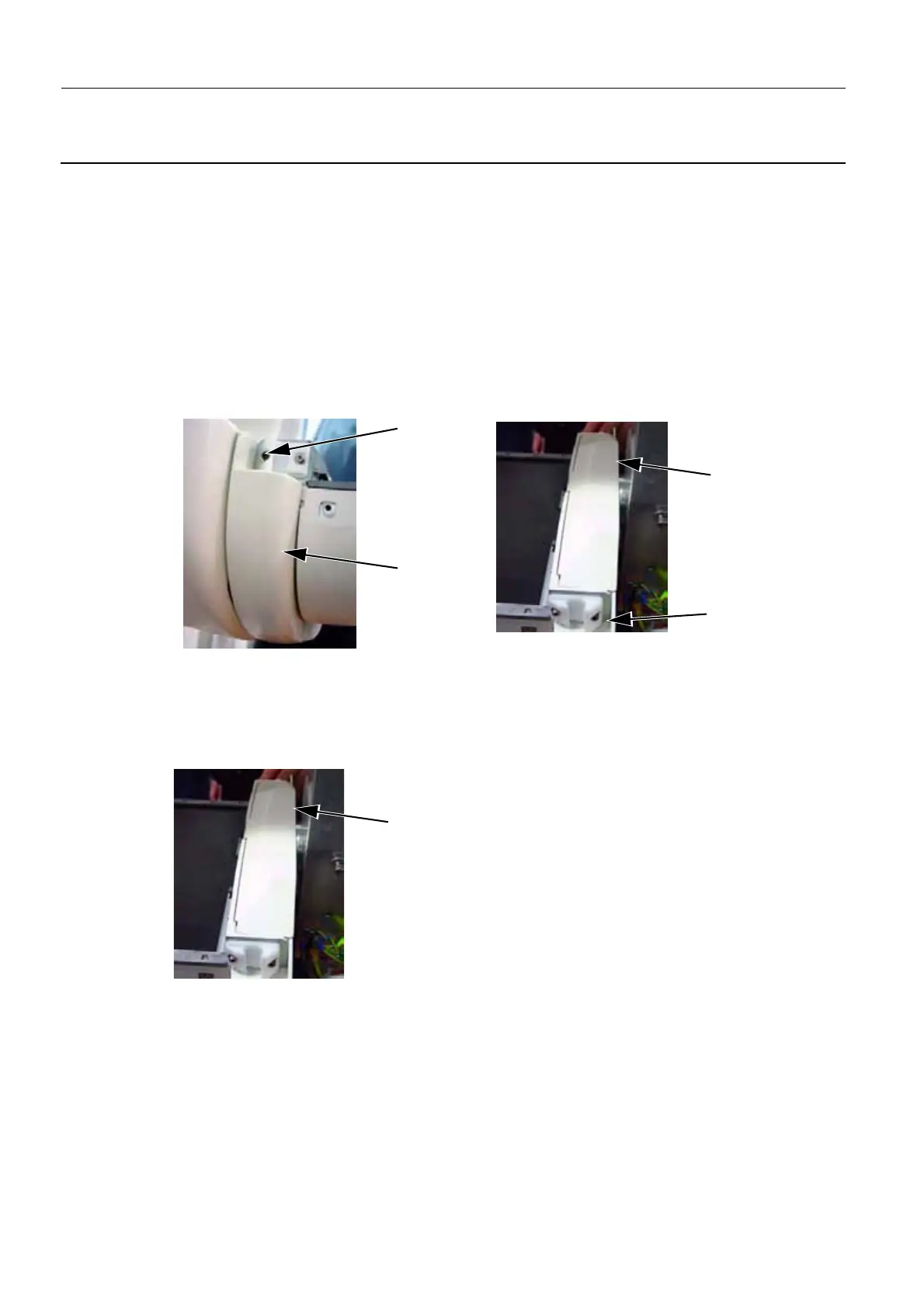

4. Release and remove the securing screws (1) (4 mm allen wrench) while holding the lower cover (2).
5. Remove the Detector lower cover (2).
6. Remove the Detector upper cover (3).
10-2 Replacing pilot systems detector covers
1. Replace the Detector upper cover (1).
1
2
1
3
1
