Chapter 6 Page no. 532
JC-PHY-A-044.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A044 - Remove/Reinstall Gantry Covers

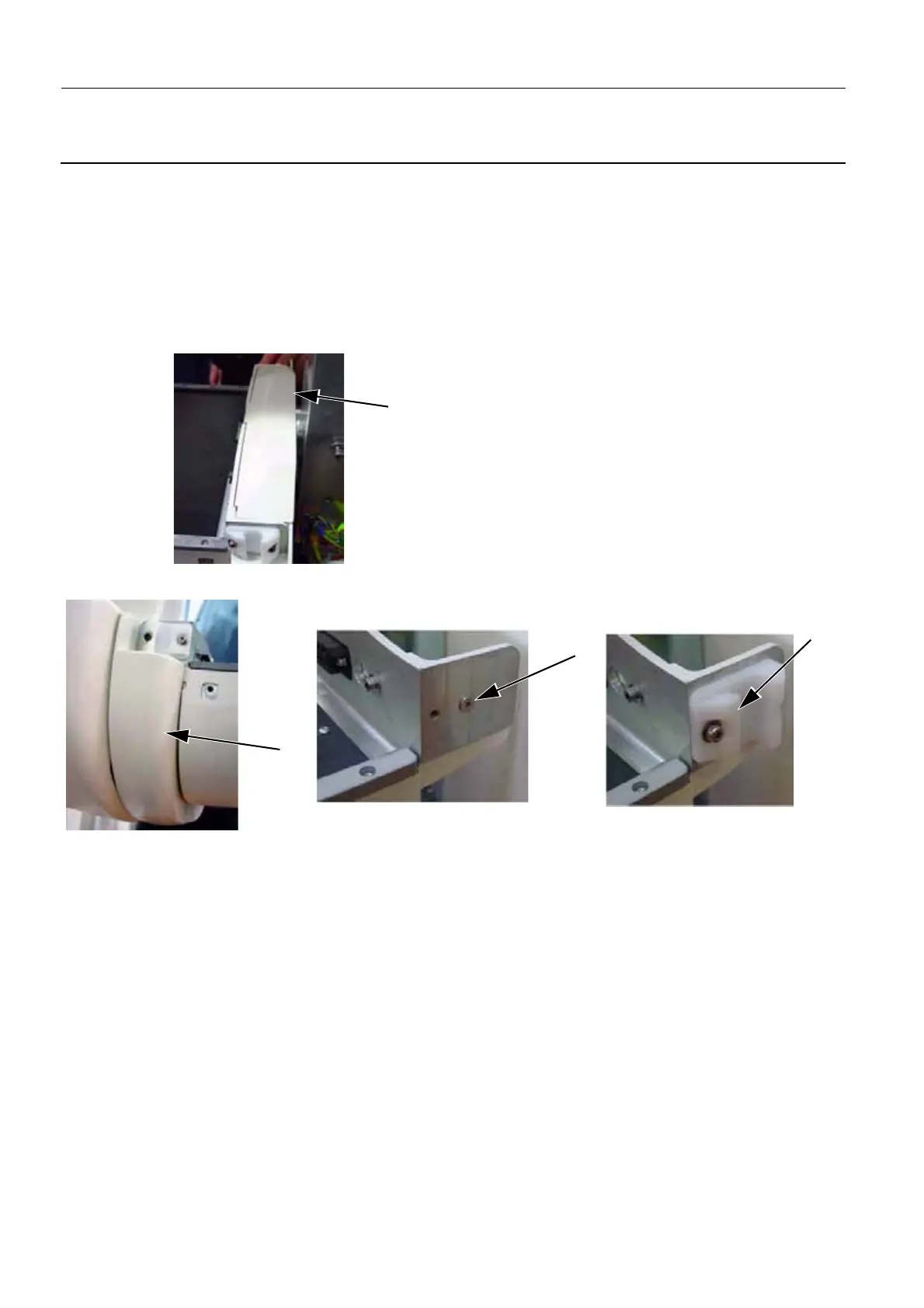

5. Remove the latch hooks (4).
6. Remove the cover securing screws (5) (not visible when the latch hooks are mounted) while holding
the lower cover (2).
7. Remove the Detector lower cover (2).
8. Remove the Detector upper cover (3).
10-4 Replacing production systems detector covers
1. Replace the Detector upper cover (1).
2. Replace the Detector lower cover (2).
3. Reattach the cover securing screws (3) while holding the lower cover (2).
4. Reattach the latch hooks (4).
5. Reattach the screws (5) (4 mm allen wrench) securing the latch hook. Make sure that both screws
1
2
3
4
