GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
Page no. 735 Chapter 7
JC-ELE-A-043.fm
• 95% / 100% grey level square

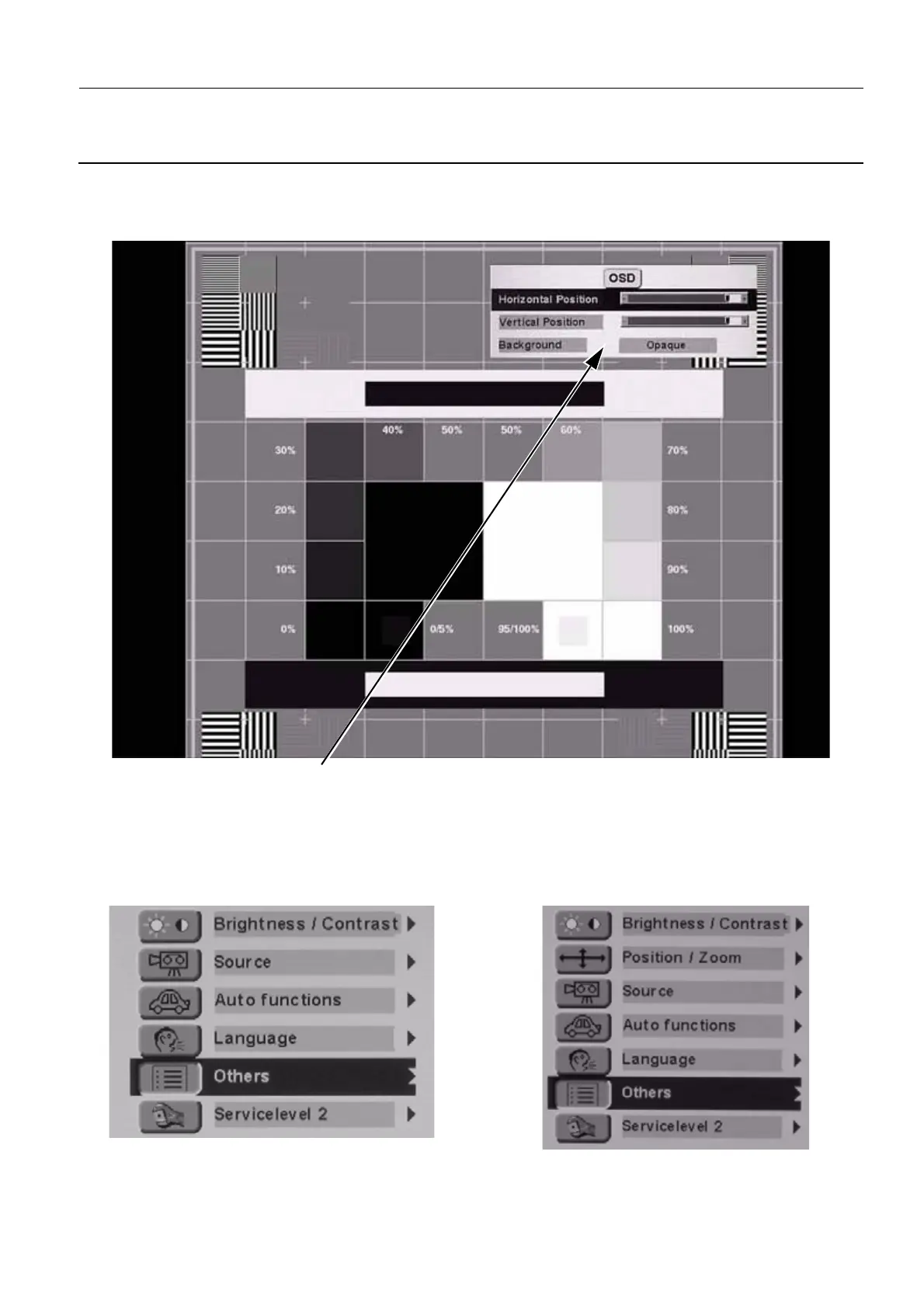

The image below represents a good example of OSD menu position with respect to the SMPTE pattern
displayed.
1. If the OSD main menu is already in a good position, go to step 6.
2. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
Others is selected, and press
the UP button to enter the Others menu.
The OSD menu does not cover the central white level
square used to do the monitor contrast, brightness or
backlight adjustment.
With monitor connected via DVI (V3/V4 CS)
With monitor connected via BNC (V1/V2 CS)
