GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
3. From the Others menu, keep pressing the MENU button until OSD Settings is selected, and press the
UP button
to enter the OSD Settings menu.
4. From the OSD Settings menu, keep pressing the MENU button until Vertical Position is selected, and
then keep pressing
the UP/DOWN button until the position of the OSD is towards the top of the screen.
5. When you have reached the desired position for the OSD, keep pressing the SET button until Accept
changes is selected, then press the UP button to exit and save the settings.
6. Once the OSD menu is in a convenient position, proceed as follows:
• If you have a V3/V4 Control Station, go to section 7-6-1 for the 18" monitor
• If you have a V1/V2 Control Station, go to section 7-6-2 for the 18" monitor

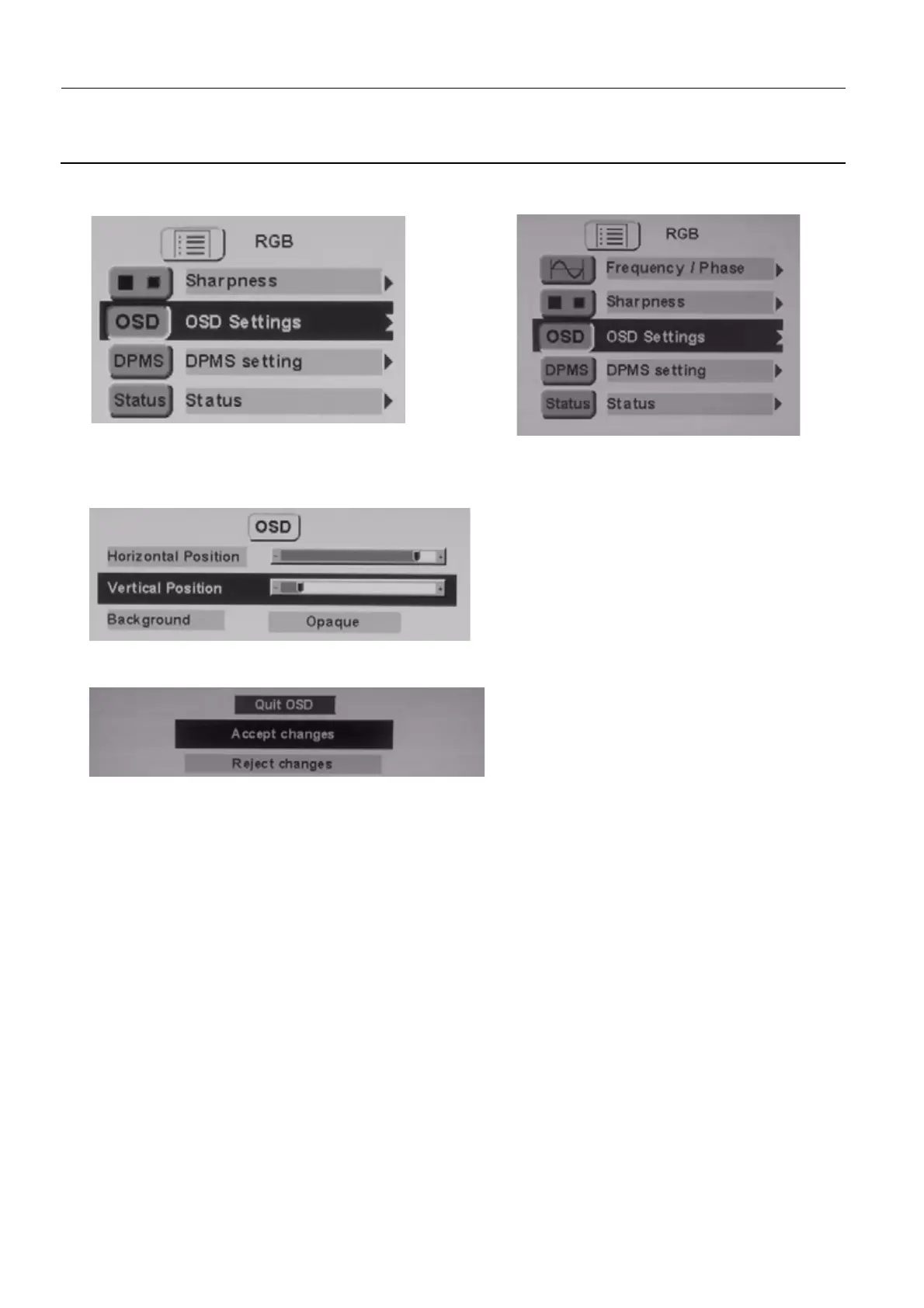

With monitor connected via DVI (V3/V4 CS)
With monitor connected via BNC (V1/V2 CS)
