GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
Page no. 737 Chapter 7
JC-ELE-A-043.fm
7-6 Calibration
7-6-1 18" Monitor and V3/V4 Control Station
1. The SMPTE pattern is already displayed on the AWS Monitor. If not, refer to section 7-4 to display
the SMPTE pattern.

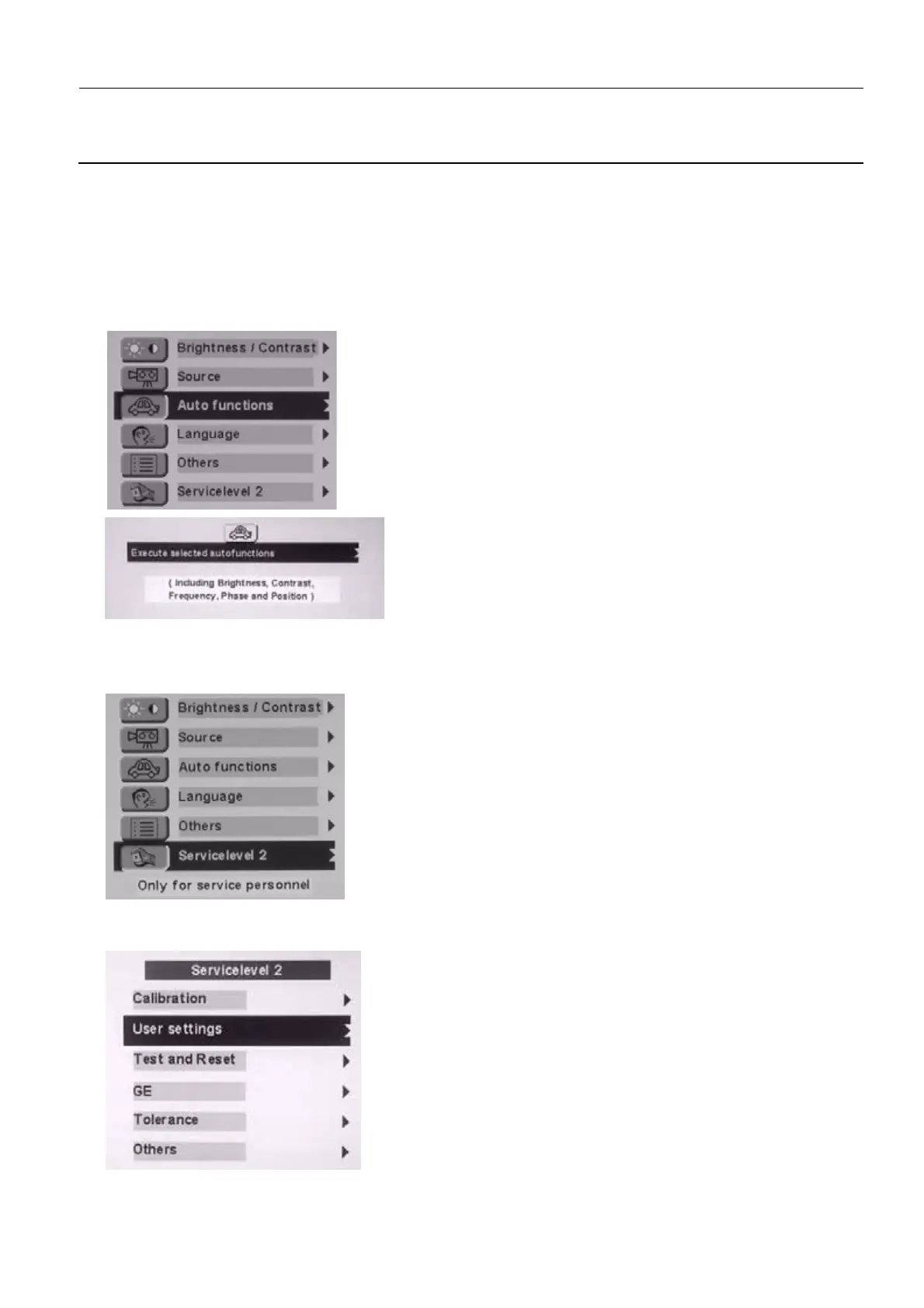

2. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
Auto functions is selected. Press the UP button to enter the Auto functions menu. Press the UP but-
ton again to perform an auto-calibration.
The auto-calibration takes place.
3. Press the MENU button to access the OSD main menu, then keep pressing the MENU button until
Service level 2 is selected.
4. Press the UP button once, then immediately press and hold the DOWN button until the Service level
2 menu re-appears as shown below. Keep pressing the MENU button until User Settings is selected.
