Functional Diagrams

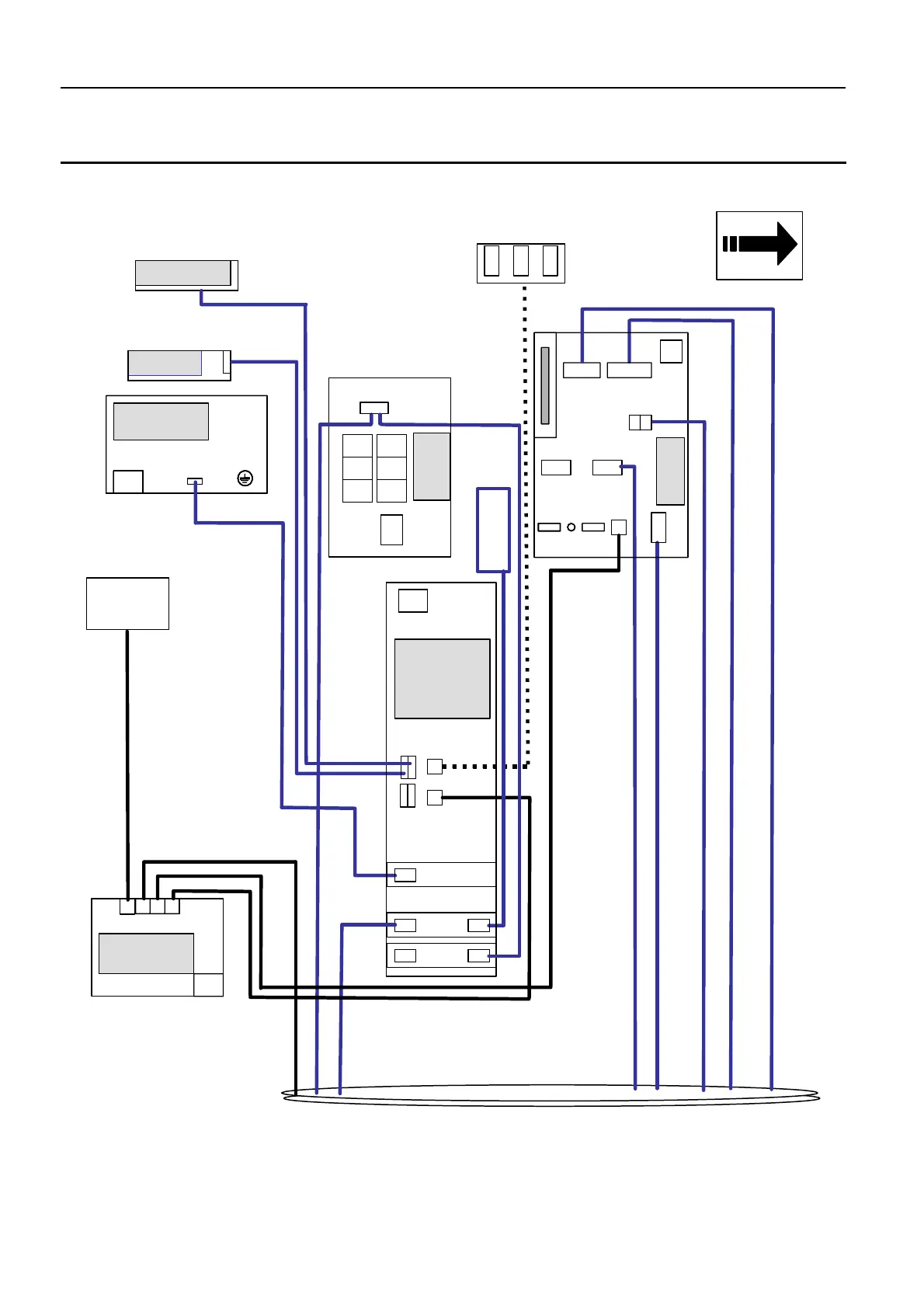

12-3. Control Station Data Distribution Diagram (CS V3 - Penduick and above)
AC
Monitor
AC
Mouse
RJ45
4X 3X 2X 1X
ETHERNET
SWITCH
DVI
Keyboard
2387162
2387162
2244615
2226612
2340426
2226621
2226625
2385966
5177284-2
RJ45
COM1
COM2
OF
SIB
26pts
SIB
50pts
AC
IDC
USB
U20
AC
net0
net1
PCI0
PCI1
PCIe
USB
UPS
AC
IN
AC
AC
AC
AC
AC
AC
HARDWARE
KEY
To Conditioner
To Detector Power Supply
To Detector Optical Fiber Socket
To Generator
To Generator
To Generator (MDR)
To Gantry
RJ45 Service
Network
Connection
External
Ethernet
2244615
