3-42 Section 3-7 - Printer Installation
3-7-4-1 UP-D897 Printer - Settings
1.) Call up the ‘Printer Preferences’; operation see: Section 3-7-4 "Adjustment of Printer Settings".
2.) Select the
LAYOUT page (see: Figure 3-41 below) and select:
- Paper: 960x1280
- Orientation: Portrait
- Interpolation Method: Bilinear
3.) Select the
DENSITY ADJUST page (see: Figure 3-41 above) and select:
- Gamma: TONE2
- Sharpness = 0; Dark = 0; Light = 0 ; Sharpness = 2
4.) For saving the adjusted printer settings click APPLY
and then OK.
Finally close the ‘Printers’ -window with the close button and exit System Setup with SAVE&EXIT
.
5.) Assign the Printer to the remote keys P1
, P2, P3 and/or P4;
see: Section 3-7-5 "Remote Control Selection" on page 3-48.

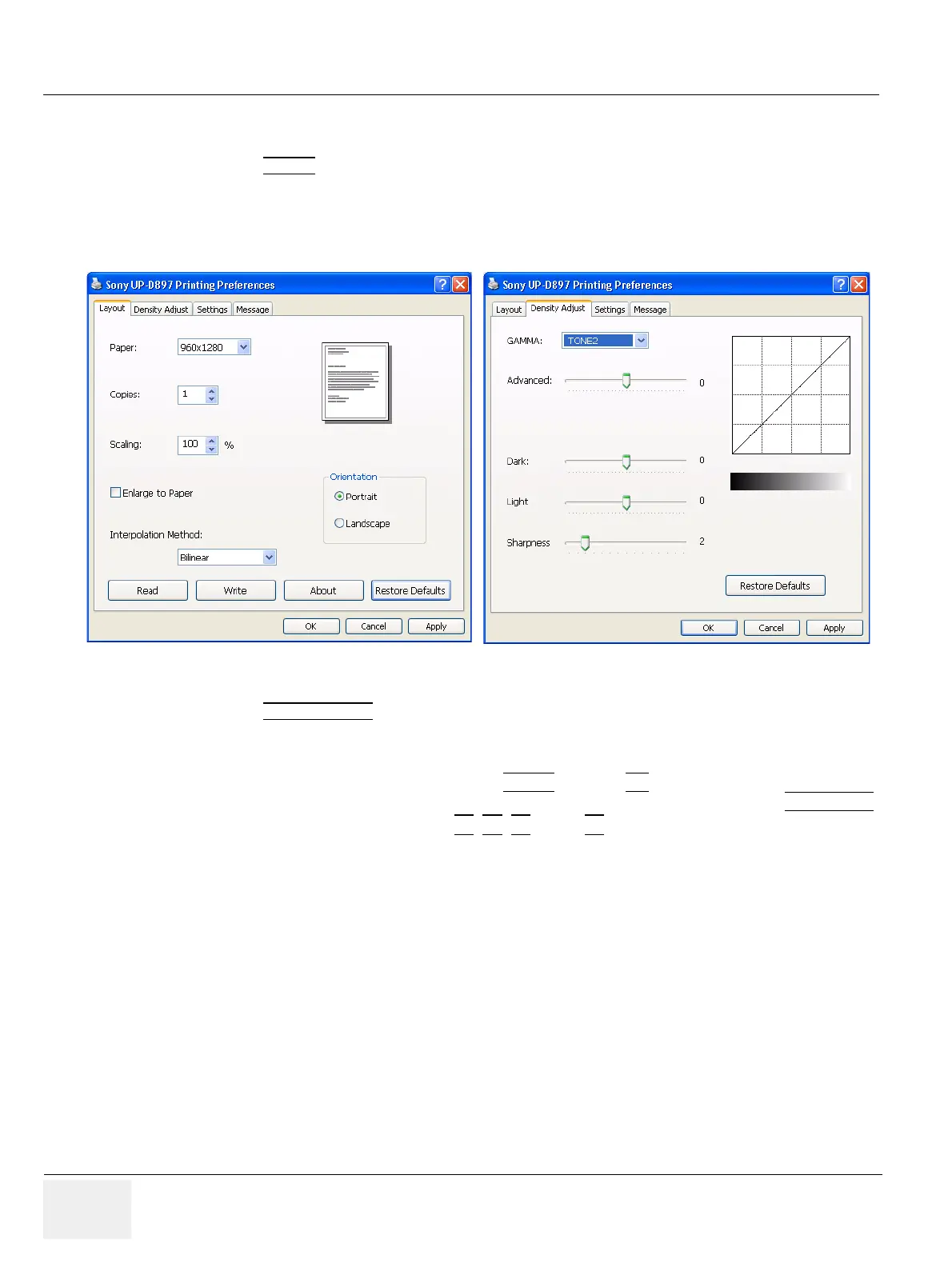

Figure 3-41 Layout + Density Adjust page
