8-8-2 Replacement of Voluson Cover
8-8-2-1 Manpower
One person, 1 minute
8-8-2-2 Tools
none
NOTE: The Voluson Cover is fixed by magnets only.
8-8-2-3 Preparations
1.) Power Off/Shutdown the system as described in Section 4-3-2 on page 4-4.
8-8-2-4 Voluson Cover - Removal Procedure
1.) Gently flap the Voluson cover upwards and then pull it away.
8-8-2-5 Voluson Cover - Installation Procedure
1.) Place the Voluson cover on its original position.

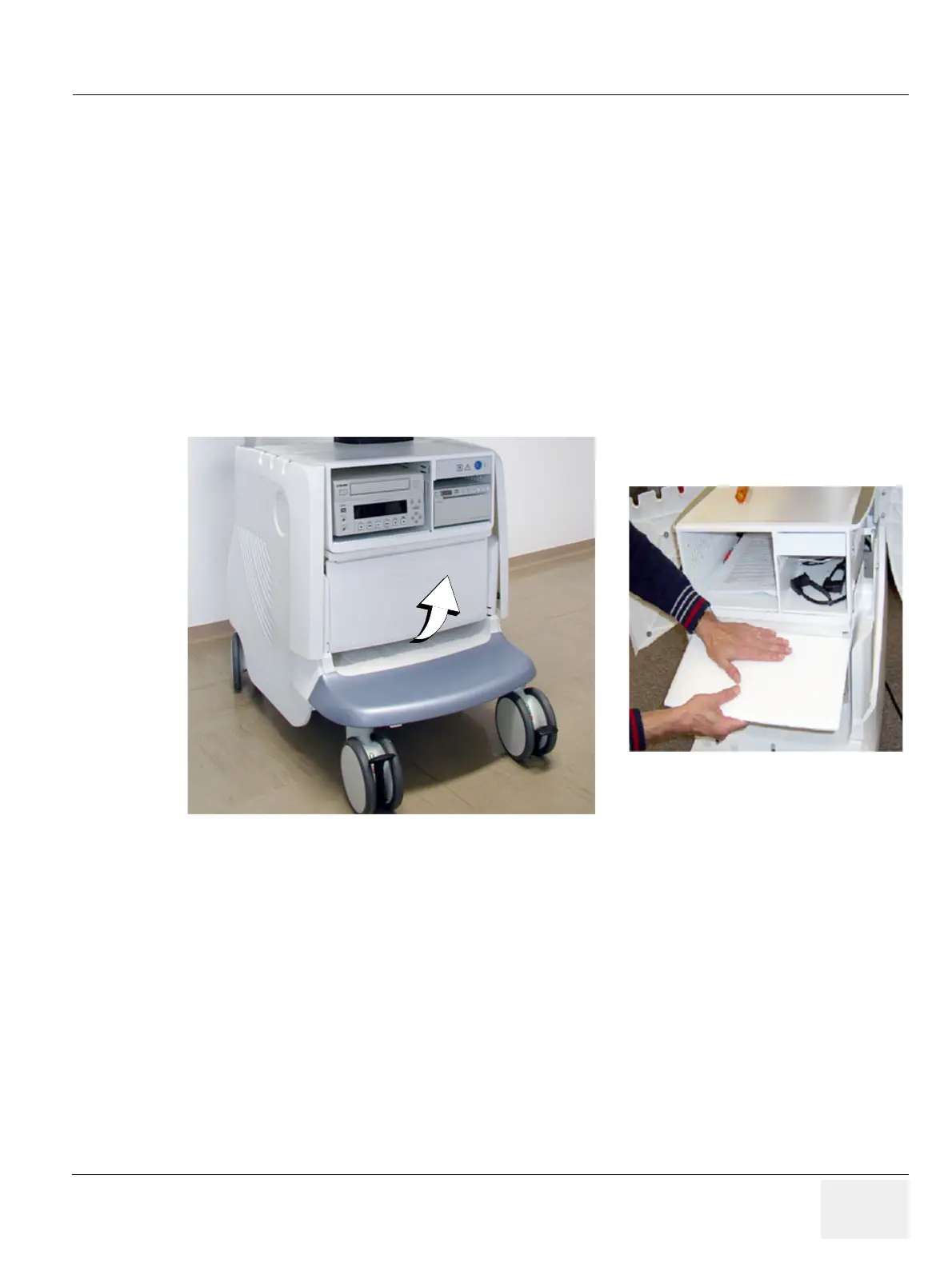

Figure 8-18 remove Voluson cover
