4-4 Section 4-3 - General Procedure
4-3-2 Power Off / Shutdown
4-3-2-1 Scanner Shutdown
1.) If not already in read mode, freeze the image.
2.) Press the ON/OFF Standby button (see: Figure 4-2) on the control panel. Following dialog appears.
3.) Select the SHUTDOWN
button. The system performs an automatic full shutdown sequence.
NOTE: Full shut down is also performed when pressing the ON/OFF Standby button on the control panel twice.
4.) Switch OFF the Circuit Breaker at the rear of the system.
NOTE: The mains outlet of the system for peripheral auxiliary equipment are commonly switched with the
ON/OFF Standby button. So the auxiliary equipment need not to be switched ON/OFF separately.
5.) After complete power down, unscrew the 2 screws and remove the pull-out protection to disconnect
the main power cable from the system or unplug it from the AC wall outlet socket.
6.) Press on the brakes to block the front caster wheels.
7.) Disconnect probes. (Turn the probe locking handle counterclockwise and then pull the connector
straight out of the probe port.)
!! NOTICE:
After turning off a system, wait at least 10 seconds before turning it on again.
The system may not be able to boot if power is recycled too quickly.

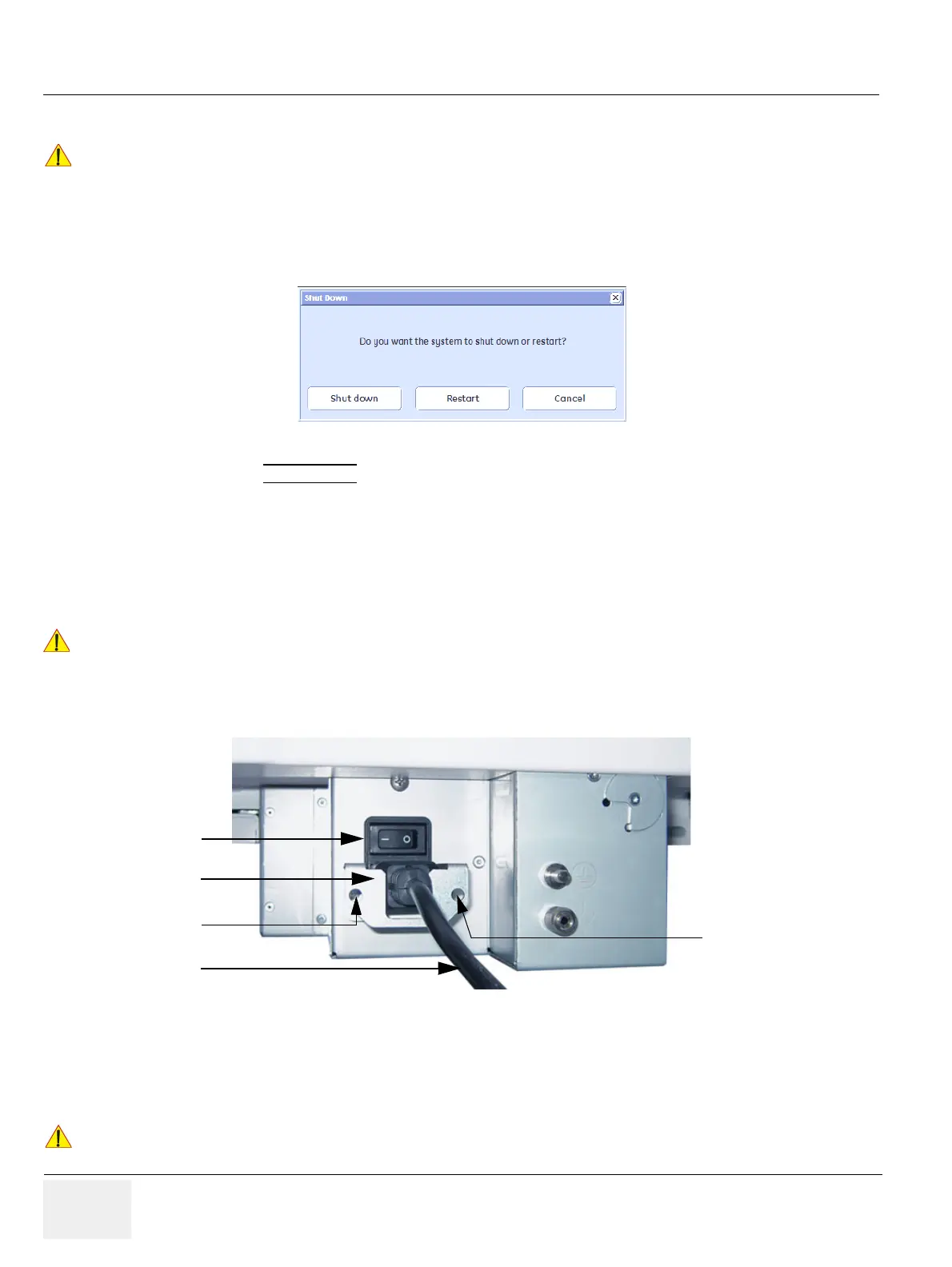

Figure 4-3 Shutdown, Restart or Cancel
!! WARNING:
Disconnection of the Main Power Cable is necessary!
For Example: When repairing the system.
Figure 4-4 Circuit Breaker, pull-out protection and main power cable at rear of system
!! CAUTION:
DO NOT disconnect a probe while running (Live Scan “Write” mode)!
A software error may occur. In this case switch the system OFF (perform a reset).
Circuit Breaker
Main Power Cable
pull-out protection
1 screw
1 screw
