Chapter 3 - Setup Instructions 3-45
3-7-4-4 UP-D25MD Printer - Settings
1.) Call up the ‘Printer Preferences’; operation see: Section 3-7-4 "Adjustment of Printer Settings".
2.) Select the
PAPER page (see left image at Figure 3-45) and select:
- Paper Size: UPC-... L (large) / UPC-...S (small)
- Orientation: Landscape (recommended when using large paper size)
- High Speed (check mark on)
3.) Select the
GRAPHICS page. From the “Color Adjust” pop-up menu select:
a.) Color Balance: Cyan = 0; Magenta = 0; Yellow = 0
!! NOTICE:
Settings for Paper Size MUST match with the used Paper (large/small) and also the right color ink
cartridge has to be used. Otherwise you will get an error message at printing.

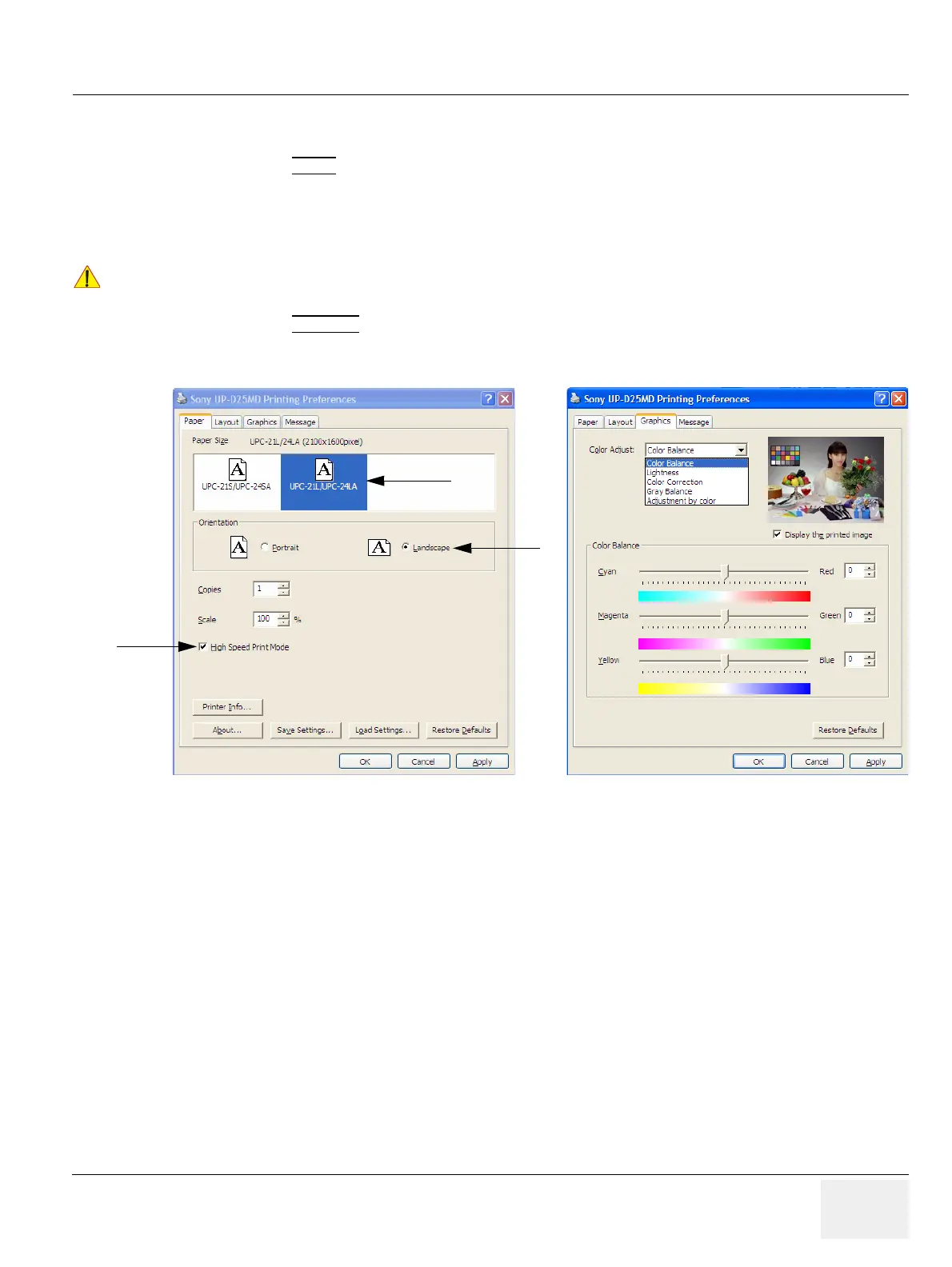

Figure 3-45 Paper / Graphics page
