Chapter 9 - Renewal Parts 9-13
Section 9-8
Main Board Module
Replacement parts described in the sub-sections:
9-8-1 FrontEnd (US-Part) Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
9-8-2 BackEnd (PC-Part) Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16
9-8-1 FrontEnd (US-Part) Components
NOTE: The installed Hardware configuration is shown in the System Info page (see: Figure 7-1 on page 7-3).

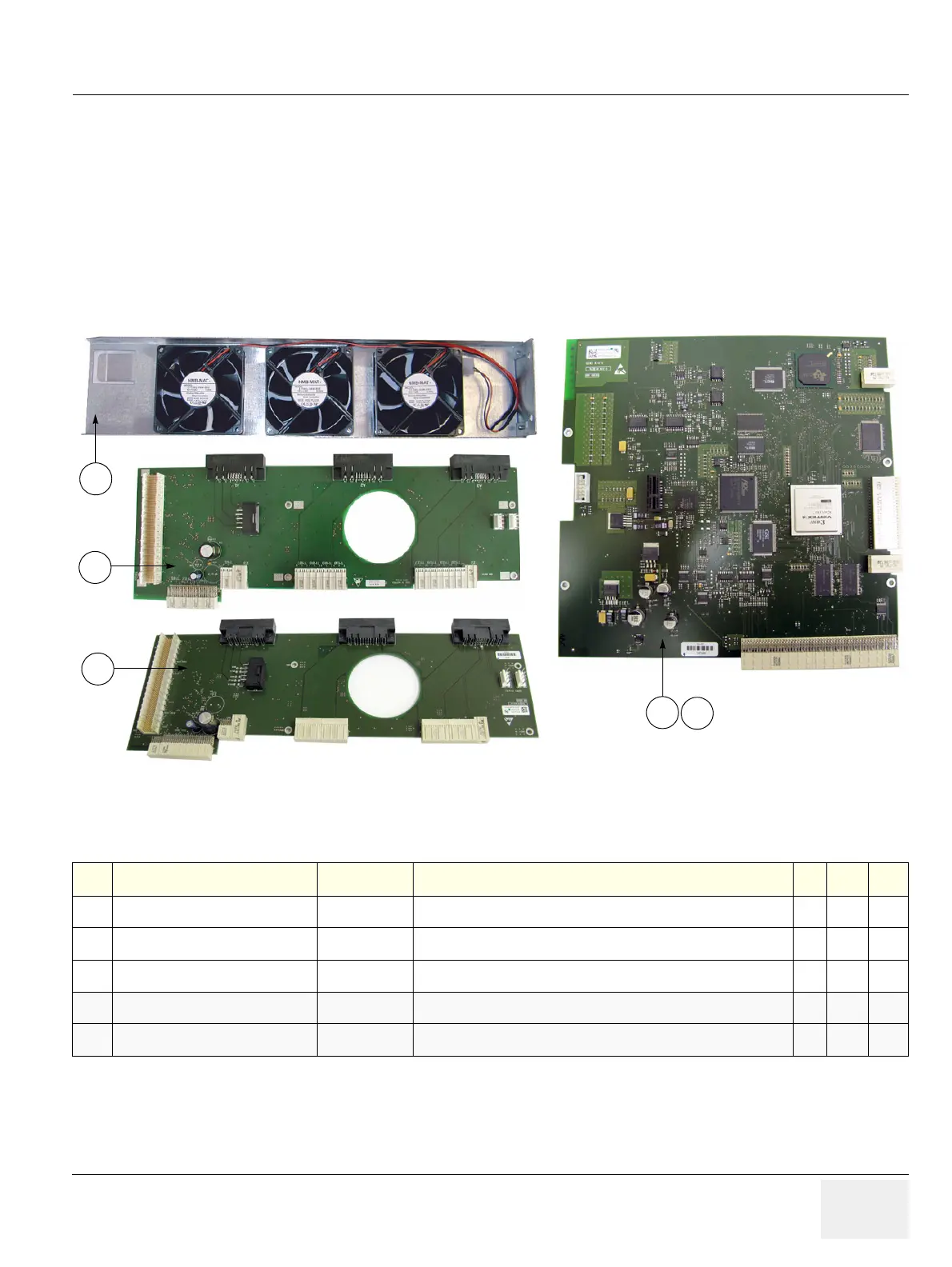

Figure 9-9 FrontEnd (US-Part) Components
Table 9-9 FrontEnd (US-Part) Components
Item Part Name Part Number Description Qty CRU FRU
501
Fan Tray (3 fan)
KTZ154770 Fan Tray (3 fan) - FrontEnd 1 N Y
502
RFI20c.P8 - RF-Interface Board
KTZ280098 Radio Frequency Interface “Controller” Board 1 N Y
503
RFI21a.P8 - RF-Interface Board
KTZ302197 Radio Frequency Interface “Controller” Board 1 N Y
504
RTK5-5c.P4 - Motherboard
KTZ196133 Electrical Signal- and Supply-Connection for all boards 1 N Y
505
RTK20.P5 - Motherboard
KTZ280099 Electrical Signal- and Supply-Connection for all boards 1 N Y
501
503
502
504
505
