3-10 Section 3-5 - Connection of Auxiliary Devices
3-5-1 Connecting the LCD Monitor
NOTE: The LCD monitor comes pre-installed with the system.

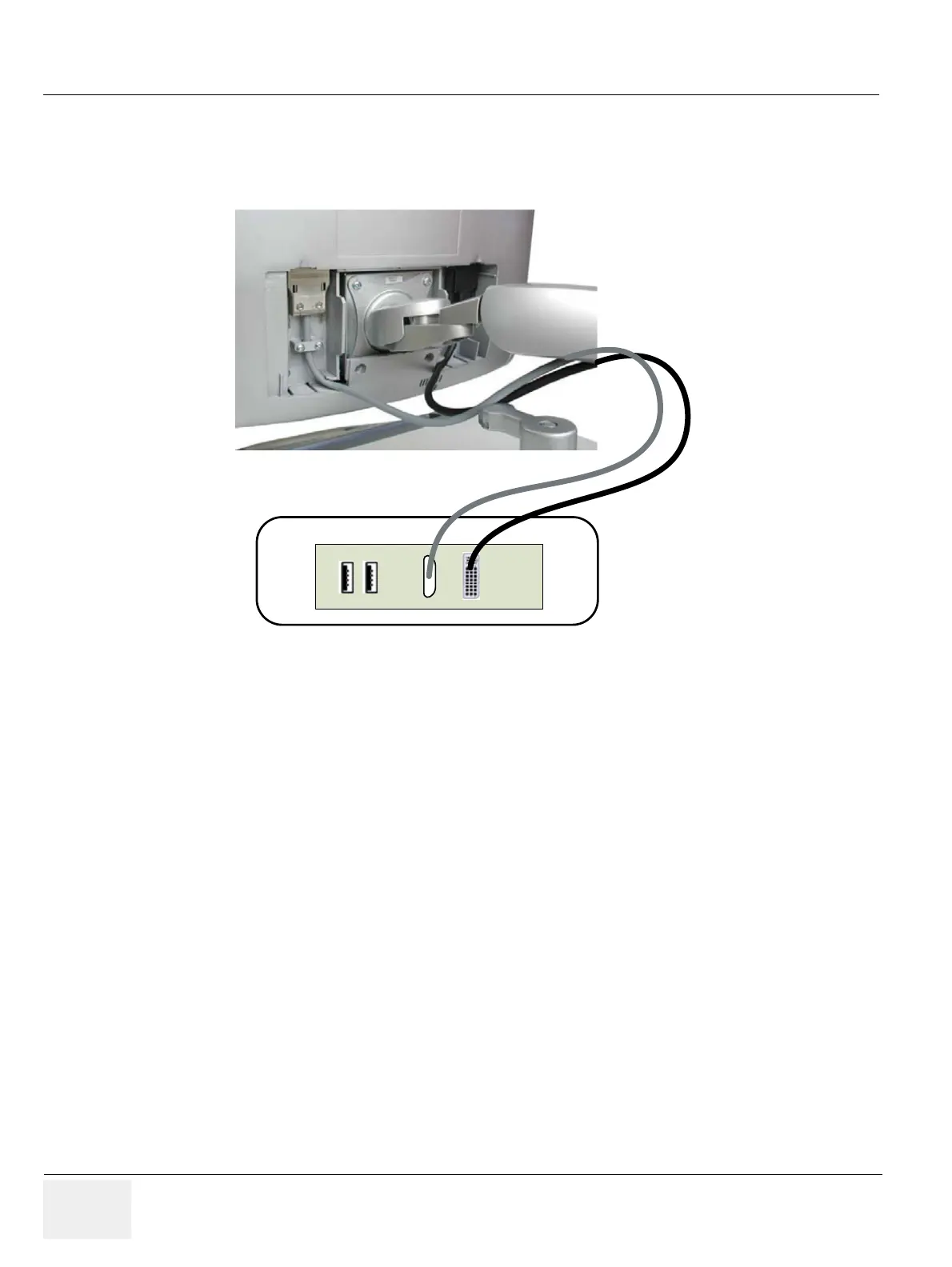

Figure 3-5 Connection Scheme - LCD Monitor
Console back
