3-22 Section 3-5 - Connection of Auxiliary Devices
3-5-6 Connecting the Wireless Network Adapter
1.) Turn ON the power of the system and wait till the system has booted.
2.) Plug the Wireless Network adapter into an accessible USB port of the Voluson E8 / Voluson E6.
All software drivers are pre-installed for the designated Wireless Network adapter only.
The Wireless Network Adapter can be connected to any accessible USB port of the Voluson E8 /
Voluson E6.
NOTE: Connection of the WLAN Adapter is always the same
(no differences between PC-Motherboard and/or BT-version of the system).
NOTE: After physical connection of the WLAN adapter to the Voluson E8 / Voluson E6 system, follow the
procedure described in Section 3-11-2 "Wireless Network Configuration" on page 3-62.

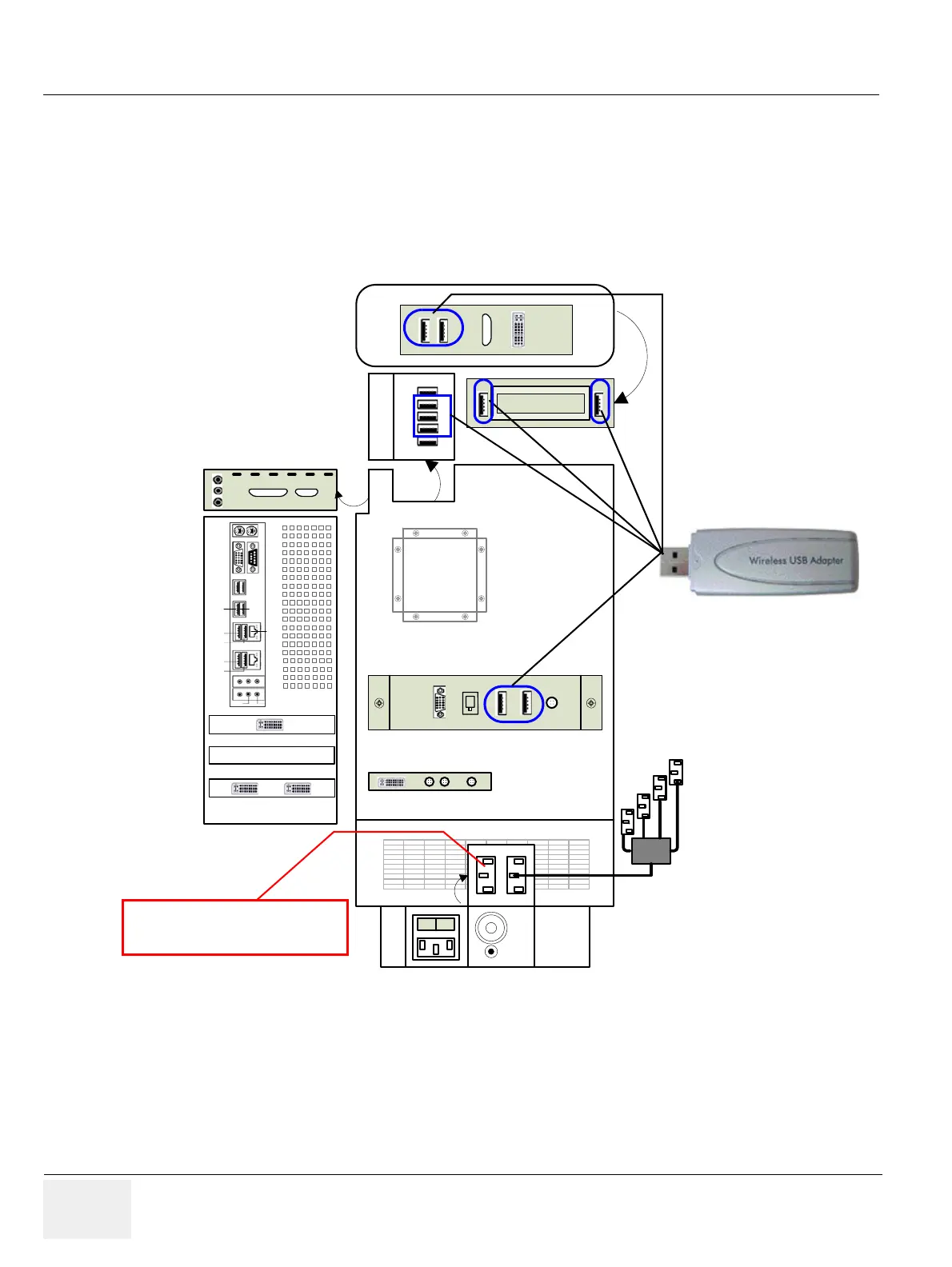

Figure 3-17 Connection Scheme - Wireless (USB) Network Adapter
text
Console back
DVD Writer
I
O
UI-Top
ECG
S - Video
Out InOut
DVI - Out
Mic
Line
Out
In
A
BC
DE
DVI Out
DVI - In Monitor
RS-
232
USB
UI
USB Hub
Top
LAN
USB 3
USB 4
USB 5
USB 6
Audio
Line Out
Line In
PC
Lift is only used for the lifter
(230V - can not be changed)
