GE HEALTHCARERAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
8-20 Section 8-11 - Replacement of the Probe Holder for Endocavity probes
Section 8-11
Replacement of the Probe Holder for Endocavity probes
8-11-1 Manpower
One person, 15 minutes
8-11-2 Tools
Phillips screwdriver PH1 and PH2
8-11-3 Probe Holder (endocavity) - Removal Procedure
1.) Loosen the 4 screws and then remove the probe holder for endocavity probes.
8-11-4 Probe Holder (endocavity) - Installation Procedure
1.) Place the new probe holder at its original position and fasten it with the 4 screws.
Section 8-12
Replacement of the Trackball Ring
8-12-1 Manpower
One person, 5 min.
8-12-2 Trackball Ring - Replacement Procedure
1.) Remove the fixation ring by turning it counterclockwise.
2.) Mount the fixation ring by turning it clockwise.

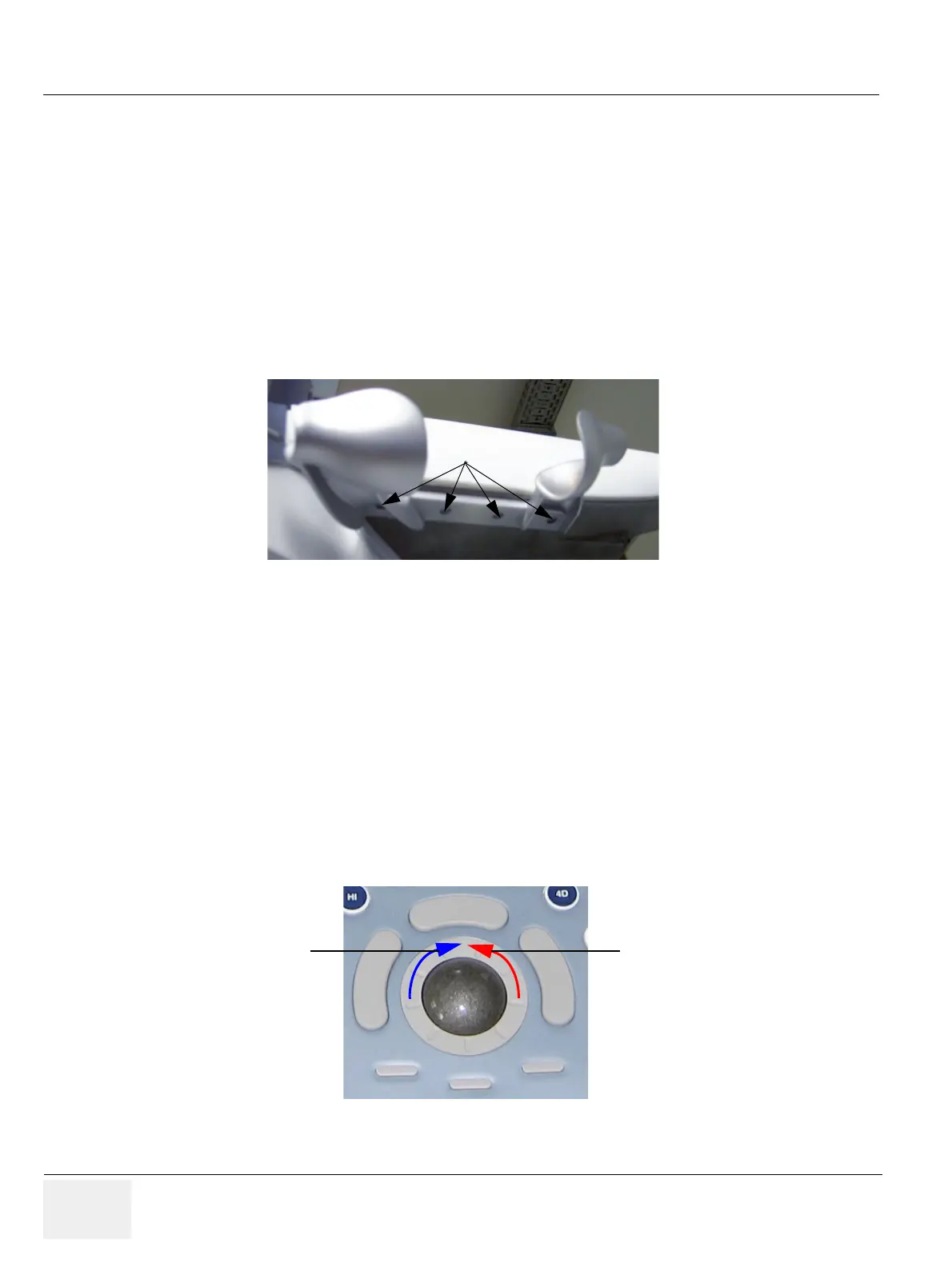

Figure 8-21 loosen 4 screws and remove probe holder
Figure 8-22 Trackball with Trackball “fixation” ring
rotate counterclockwise
to remove the fixing ring
rotate clockwise to
mount the fixing ring
