3-7-4-2 P95D Printer - Settings
1.) Printer Settings directly on the B&W Printer:
a.) Press the BRT button on the printer and adjust Brightness to "0" by using the turning knob.
b.) Press the CONT button on the printer and adjust Contrast to "0" by using the turning knob.
c.) Press the SHARP button on the printer and adjust Sharpness to "3" by using the turning knob.
d.) Press the FUNC button on the printer and adjust Gamma to "r5" by using the turning knob.
e.) Press the BRT button twice to save and exit.
2.) Assign the Printer to the remote keys P1
, P2, P3 and/or P4;
see: Section 3-7-5 "Remote Control Selection" on page 3-48.
3.) Activate USB Serial number:
a.) Turn off Printer and wait 5 seconds.
b.) Press and hold the buttons COPY + CONT and power on the printer.
When the Display changes to “S1” the buttons can be released.
c.) Press the FUNC button -> the display changes to “U0”.
d.) Adjust the value to “U2” via turning knob.
e.) Press the FUNC button again -> the display changes to another value (normally “F0”).
f.) Power off the Printer.

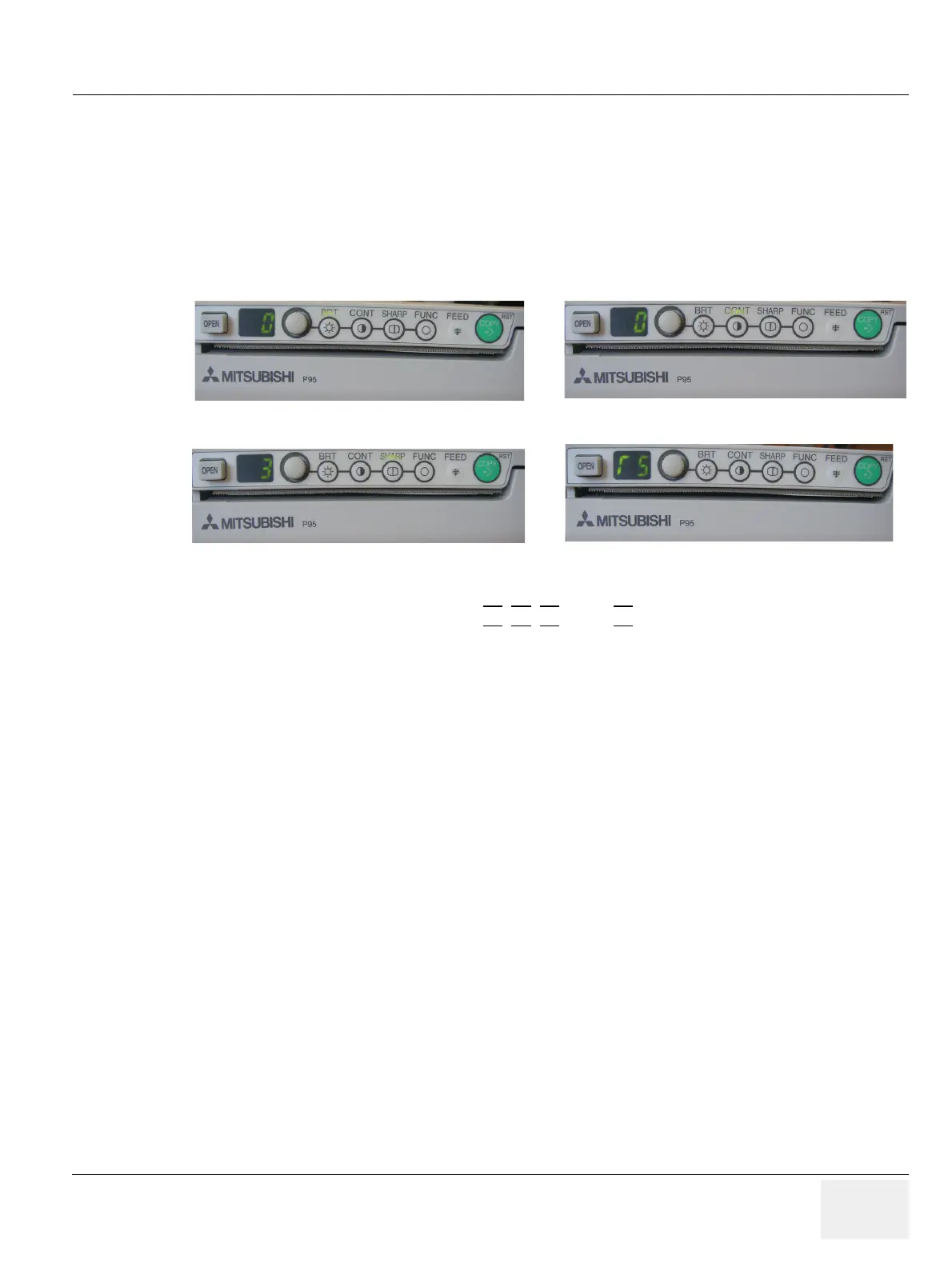

Figure 3-42 Printer Settings - B&W Printer
Brightness: 0
Contrast: 0
Sharpness: 3
Gamma: 5
