GE HEALTHCARERAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
9-8 Section 9-5 - User Interface
Section 9-5 User Interface (cont’d)

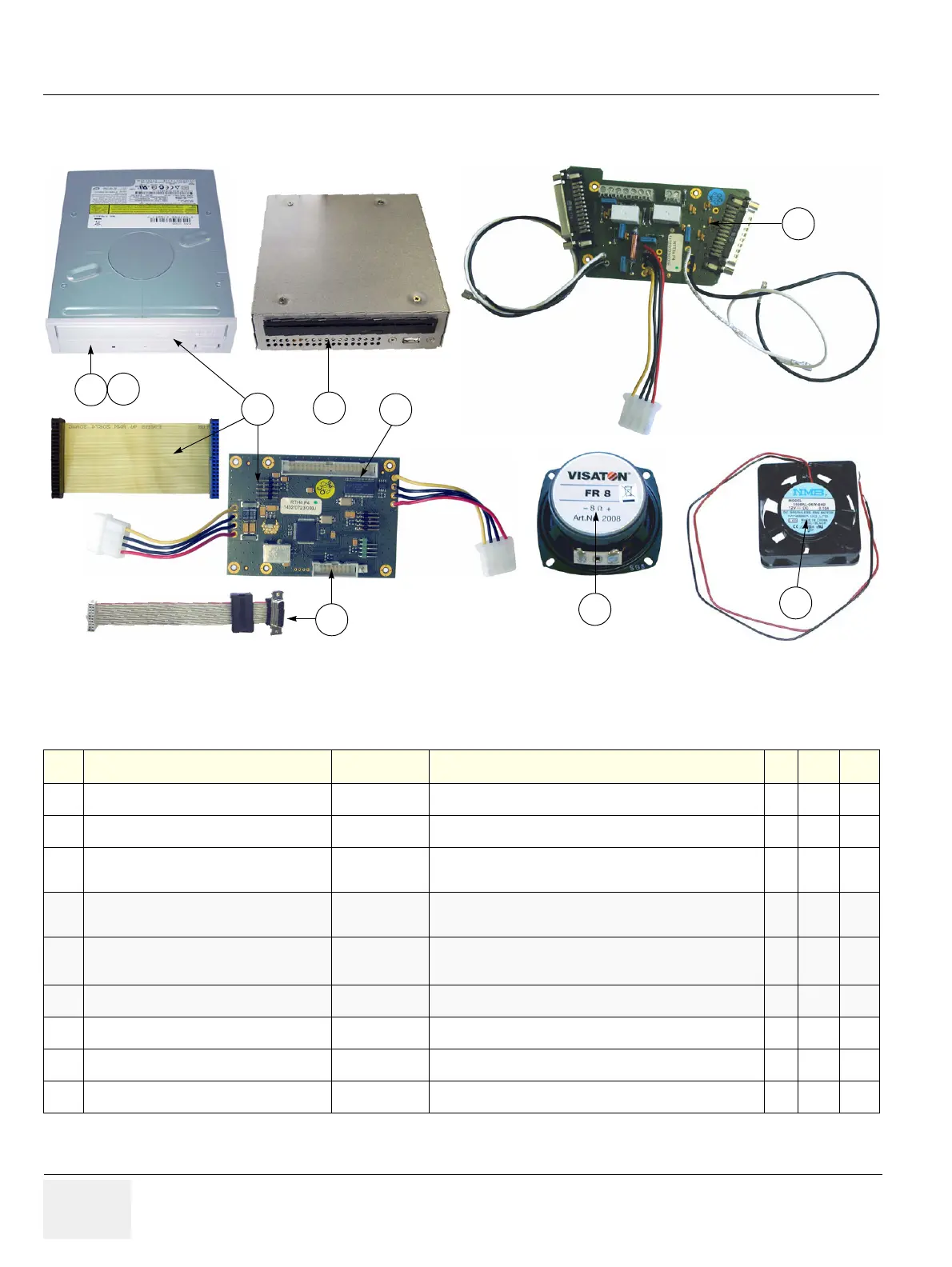

Figure 9-5 User Interface (cont’d)
Table 9-5 User Interface (cont’d)
Item Part Name Part Number Description Qty CRU FRU
222
Disk Drive IDE DVD+(R)W
KTZ207257 DVD+(R)W Writer internal (no own cabinet) 1 N Y
223
Disk Drive2 IDE DVD+(R)W
KTZ301629 DVD+(R)W Writer internal (no own cabinet) 1 N Y
224
DVD-Set complete VE8/VE6
KTZ280252
Set includes: DVD+(R)W Writer internal, Data cable IDE
and Distribution Board USB-Hub (RTH5)
1N Y
225
DVR-Drive
KTZ302198
internal DVR-Drive (= DVD Drive with an integrated
Digital Video Recorder), DVD+(R)W
1 N Y
226
RTH4.P4 - Distribution Board USB-Hub
incl. Power connection cable for Monitor
KTZ221015 Distribution Board USB-Hub 1 N Y
227
RTH5.P5 - Distribution Board USB-Hub
KTZ280173 Distribution Board USB-Hub 1 N Y
228
RTT3.P3 - Distribution Board Top
KTZ221014 Distribution Board Top 1 N Y
229
Loudspeaker Top Console
KTZ208132 Loudspeaker on User Interface (1 pcs.) 2 N Y
230
Fan User Interface
KTZ220645 Fan User Interface 1 N Y
222
223
225
227
228
224
226
229
230
