3-5-7 Connecting the VGA Image (Video) Resizer
NOTE: After physical connection of the VGA Image Resizer to the Voluson system, follow the procedure
described in Section 3-5-7-1 "Adjustment of the VGA Image Resizer Settings" on page 3-24.
NOTICE
!! NOTICE:
For more detailed description, how to replace/mount the VGA Image Resizer, refer to:
Chapter 8 - Replacing optional Peripherals / How to mount Peripherals at a later date, on page 8-25.
NOTICE
!! NOTICE:
The VGA Image (Video) Resizer is required whenever the used Secondary “Patient” Monitor has a
different screen resolution than the Voluson E8 / Voluson E6 system!

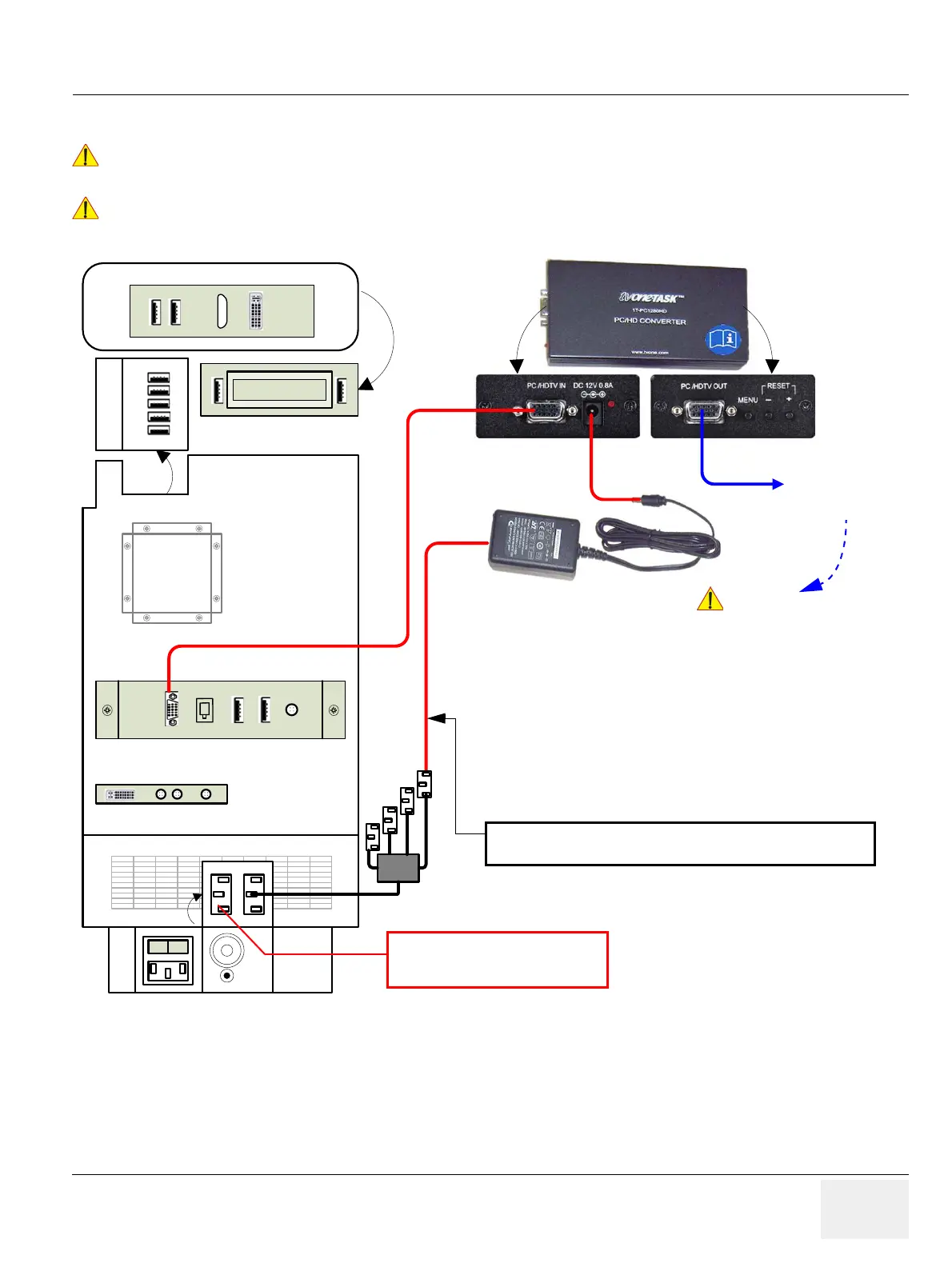

Figure 3-18 Connection Scheme - VGA Image Resizer
text
Console back
DVD Writer
I
O
S - Video
Out InOut
DVI - Out
A
BC
DE
Power Supply
VGA Image
to Secondary
“Patient” Monitor
Lift is only used for the lifter
(230V - can not be changed)
CAUTION
!! CAUTION:
A Secondary “Patient” Monitor MUST NEVER be connected to
the Voluson E6 / Voluson E8 systems mains supply directly!
Always connect it to an appropriate Isolation Transformer
(see: Chapter 9 - Optional Equipment, on page 9-33)
Resizer box
Connect the power supply of the VGA Image Resizer to the
power cable plug behind the door on the right side cover.
