Chapter 3 - Setup Instructions 3-27
3-5-9 Connecting the Footswitch
The footswitch should be directly connected to any accessible USB-port on the Voluson E8 / Voluson
E6 (e.g., on rear of the system).
NOTE: Connection of the Footswitch is always the same
(no differences between PC-Motherboard and/or BT-version of the system).
After physical connection, adjust the Footswitch (Left/Right) as described in
Section 3-8-1-8 "How to adjust function of the Footswitch" on page 3-52.

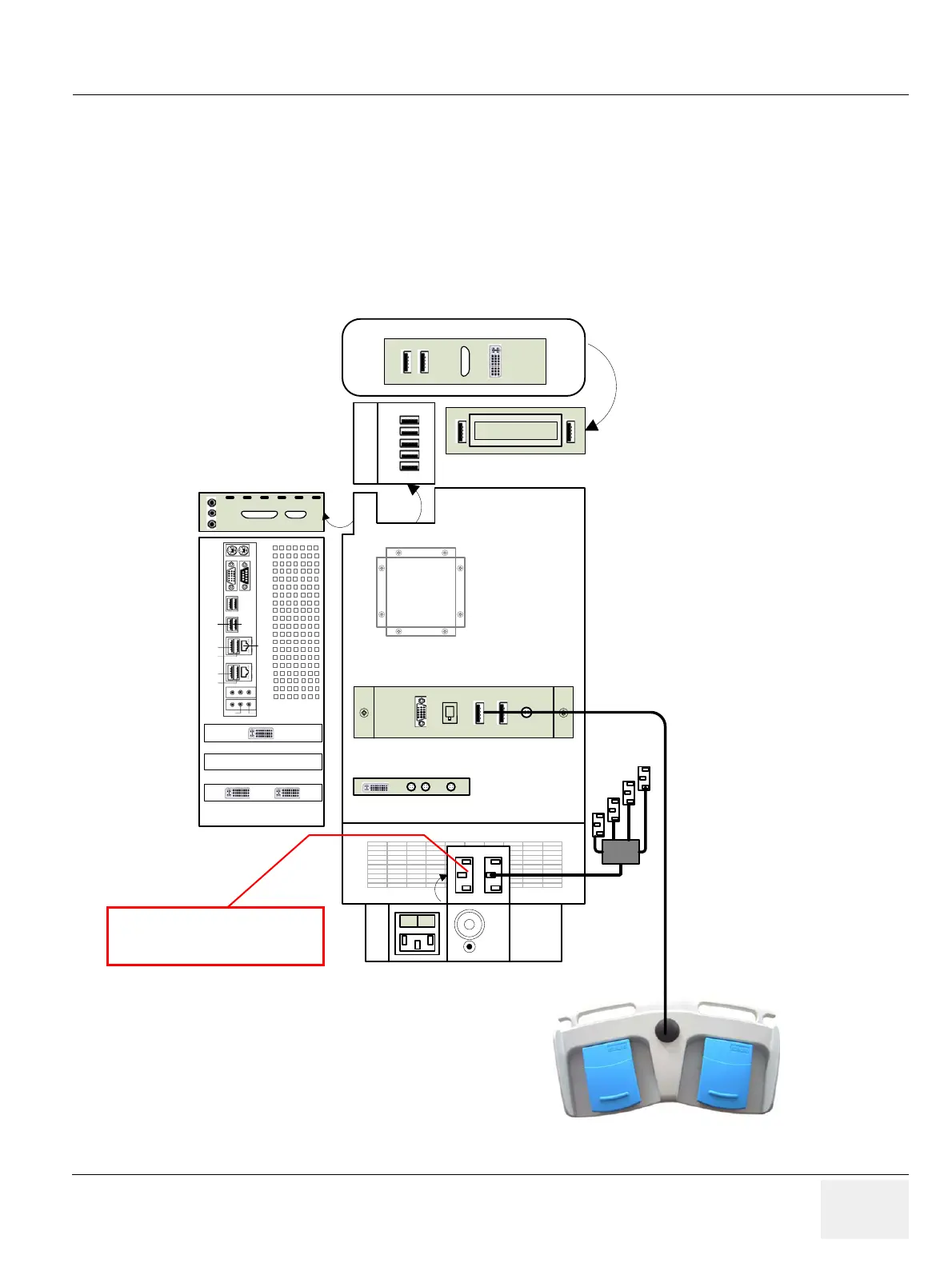

Figure 3-21 Connection Scheme - Footswitch
text
Console back
DVD Writer
I
O
UI-Top
ECG
S - Video
Out InOut
DVI - Out
Mic
Line
Out
In
A
BC
DE
DVI Out
DVI - In Monitor
RS-
232
USB
UI
USB Hub
Top
LAN
USB 3
USB 4
USB 5
USB 6
Audio
Line Out
Line In
PC
Lift
Aux
Lift is only used for the lifter
(230V - can not be changed)
