Chapter 3 - Setup Instructions 3-9
Section 3-5
Connection of Auxiliary Devices
Hardware installation procedures described in the sub-sections:
3-5-1 Connecting the LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3-5-2 Connecting the Black & White Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
3-5-3 Connecting the Color Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
3-5-4 Connecting the DeskJet Color Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
3-5-5 Connecting the DVD Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3-5-6 Connecting the Wireless Network Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
3-5-7 Connecting the VGA Image (Video) Resizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
3-5-8 Connecting the 19” LCD Secondary “Patient” Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
3-5-9 Connecting the Footswitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
3-5-10 Connecting the ECG-preamplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
3-5-11 Connecting the USB Flash Memory Stick. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
3-5-12 Connecting the external USB Hard disk (Handydrive) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
3-5-13 General Remarks and Hints when using external USB-Devices . . . . . . . . . . . . . . . . . . 3-30
NOTE: Always observe the instructions given in the manual of the peripheral/auxiliary device.
NOTE: For more detailed Safety Considerations when connecting auxiliary devices to the Voluson E8 / Voluson
E6 system, please review: Chapter 1 - Auxiliary Devices Safety, on page 1-12.
NOTICE
!! NOTICE:
It is impossible to attach a Black&White printer, a Color printer and a DVD recorder in the console at
the same time, as there is not enough space for them all.
At the left shelf you can place either a Color printer or a DVD recorder.
BT Version:
BT09/BT10:
Only one recording device - DVD Recorder or VCR (VideoCassette Recorder) - can be connected at a
time to the Voluson E8 / Voluson E6.
BT12/
BT13:
Only one recording device (either the optional “built-in” DVR-Drive or a standard VCR/DVD Recorder)
can be connected at a time to the Voluson® E6 / Voluson® E8 system. Not both together!
WARNINGWARNING
!! WARNING:
After each installation, the leakage currents have to be measured according to
IEC 60601-1 respectively UL 60601-1.
CAUTION
!! CAUTION:

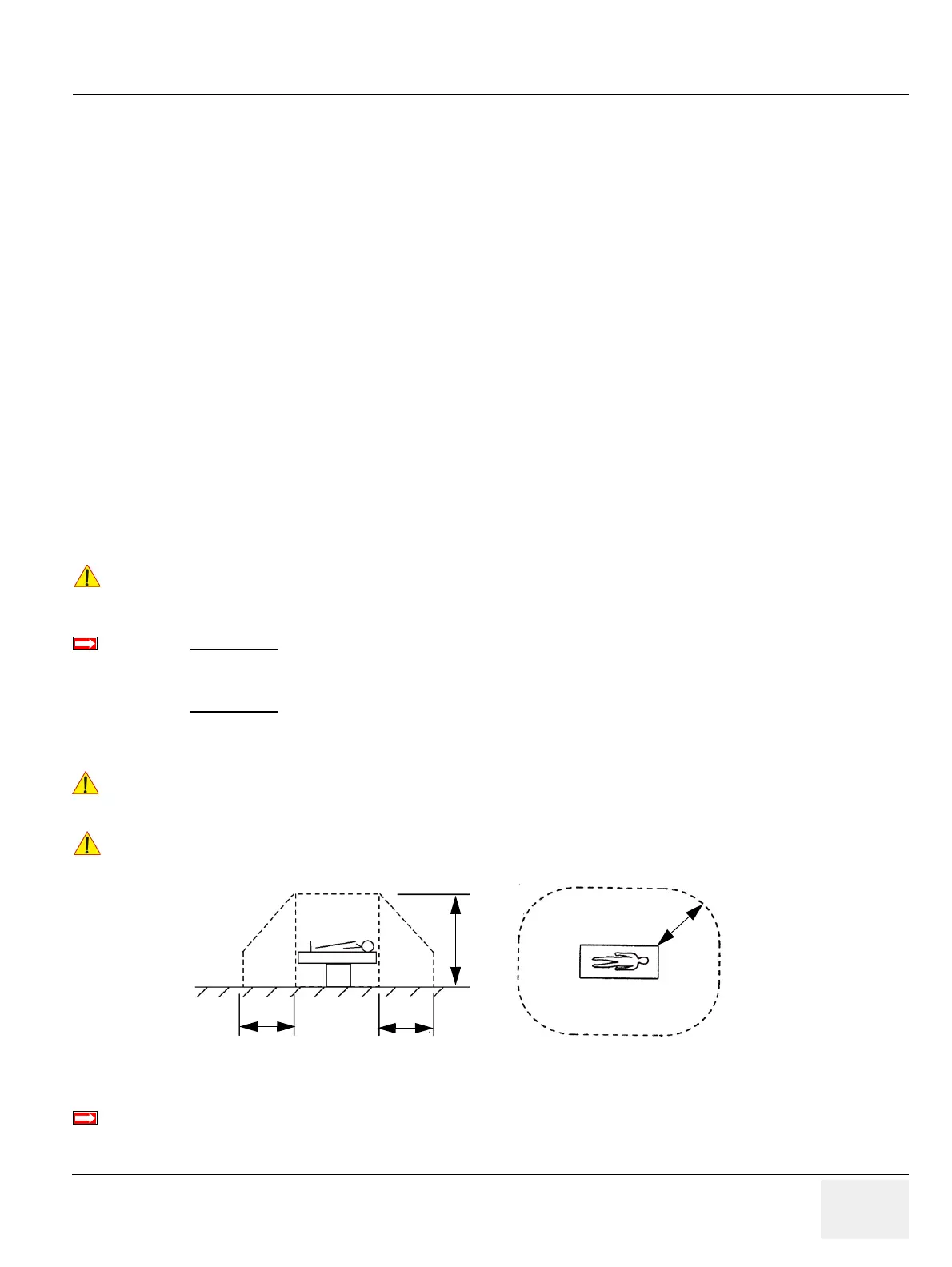

Please observe that some printers may not be medical devices! If the Bluetooth Printer and/or
Line Printers are not medical devices, they have to be located outside of the patient
environment (according to IEC 60601-1 / UL 60601-1).
BT Version:
BT-Version:
The main outlet for auxiliary devices on Back of the Console (see: Table 3-55 on page 3-55) is not
available at systems with BT10/BT12/BT13 hardware version
(or, if the main harness has been replaced).
2,5 m
1,5 m
1,5 m1,5 m
