9-40 Section 9-13 - Probes
9-13-1 2D-Probes - Curved Array Transducers

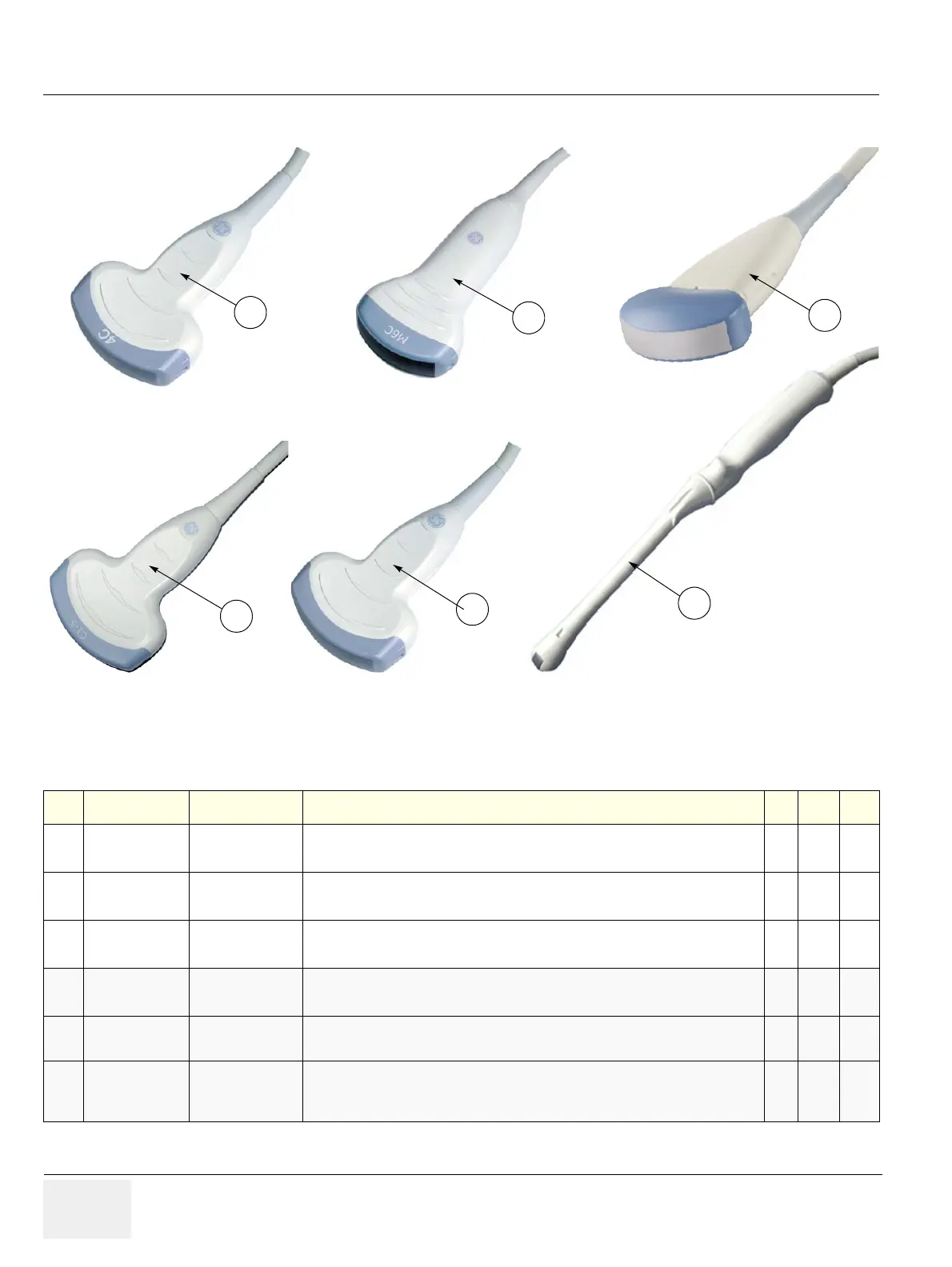

Figure 9-16 2D curved array Transducers
Table 9-22 2D curved array Transducers
Item Part Name Part Number Description Qty CRU FRU
900 4C-D
KTZ157036
(H4001BC)
broadband curved array transducer, 2.0 - 5.0 MHz, 128 Elements
Applications: Abdominal, Obstetrics, Gynecology
-YY
901 M6C
KTZ157049
(H40432LM)
1,5D Matrix curved array transducer, 2.0 - 6.0 MHz, 192 Elements / 5 rows
Applications: Abdominal, Obstetrics, Gynecology, Pediatrics
-YY
902 AB2-7-D
KTZ157022
(H48651MW)
broadband curved array transducer, 2.0 - 8.0 MHz, 192 Elements
Applications: Abdominal, Obstetrics, Gynecology, Urology, Pediatrics
-YY
903 C1-5-D
5304539
(H40452LE)
broadband curved array transducer, 2.0 - 5.0 MHz, 192 Elements
Applications: Abdominal, Obstetrics, Gynecology
- Y Y
904 C4-8-D
5336339
(H48681AS)
broadband curved array transducer, 2.0 - 8.0 MHz, 192 Elements
Applications: Abdominal, Obstetrics, Gynecology, Urology, Pediatrics
- Y Y
905 IC5-9-D
KTZ280047
(H40442LK)
endocavity broadband curved array transducer, 4.0 - 9.0 MHz, 192 Elements,
field of view: max. 175°
Applications: Obstetrics, Gynecology, Urology
- Y Y
