9-4 Section 9-4 - Housing - Mechanical Hardware Parts & Covers
Section 9-4
Housing - Mechanical Hardware Parts & Covers

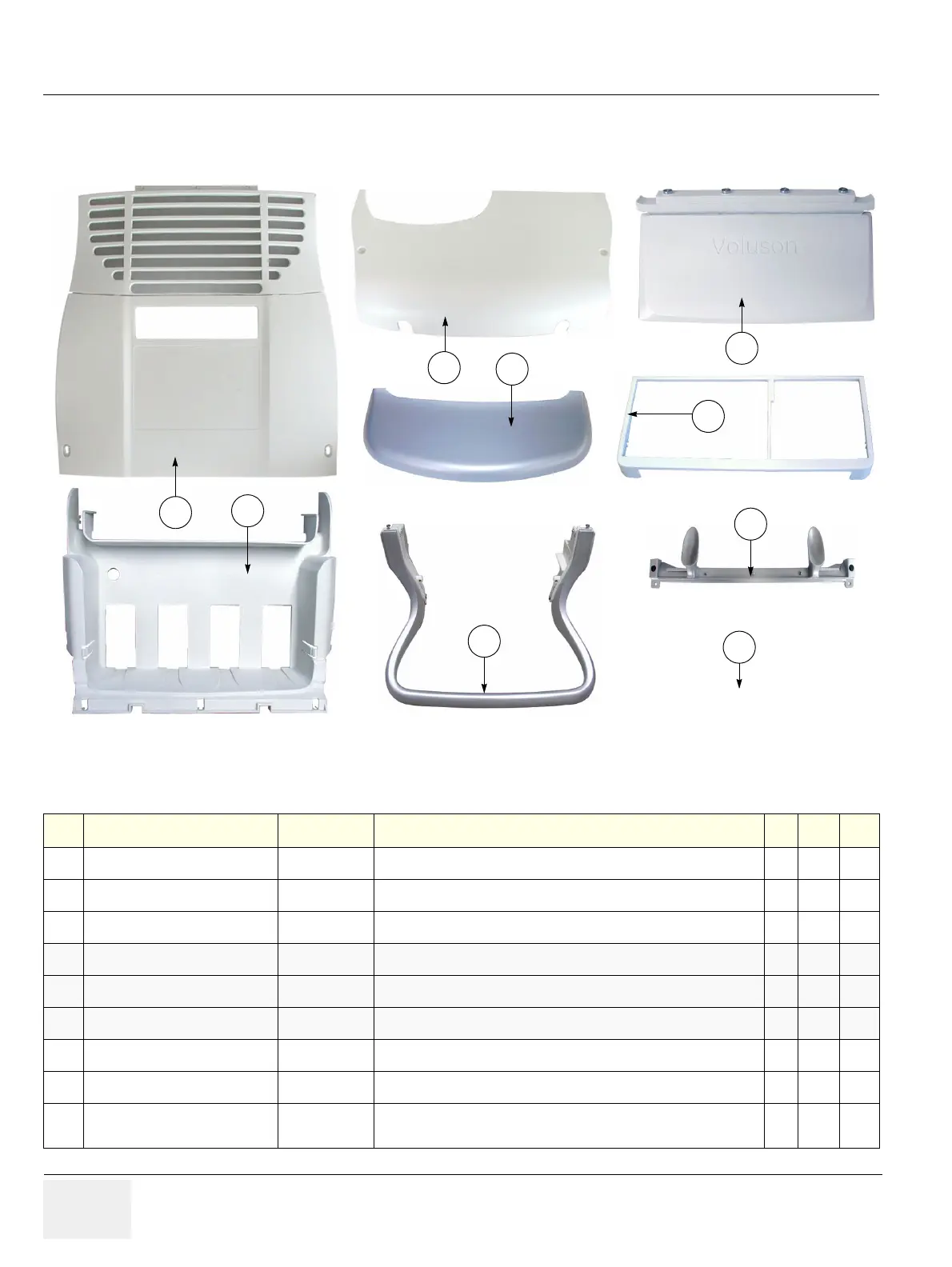

Figure 9-2 Housing - Mechanical Hardware Parts & Covers
Table 9-2 Housing - Mechanical Hardware Parts & Covers
Item Part Name Part Number Description Qty CRU FRU
101
Back Cover
KTZ134641 Back Cover incl. Filter Grid for Voluson E8 / Voluson E6 1 N Y
102
Back Top Cover
KTZ134644 Back Top Cover for Voluson E8 / Voluson E6 1 N Y
103
Voluson Cover
KTZ134696 Voluson Cover for Voluson E8 / Voluson E6 1 Y Y
104
Footrest Cover
KTZ134633 Footrest Cover for Voluson E8 / Voluson E6 1 Y Y
105
Front Frame
KTZ134637 Front Frame for Voluson E8 / Voluson E6 1 N Y
106
Front Cover
KTZ134639 Front Cover (Beamformer) for Voluson E8 / Voluson E6 1 N Y
107
Handle (rear)
KTZ134638 rear Handle for Voluson E8 / Voluson E6 1 N Y
108
Hook Connector
KTZ134642 Hook Connector for Voluson E8 / Voluson E6 1 N Y
109
Small parts kit
KTZ280053
“odds and ends” kit incl. quick release devices for locking footrest
cover (4 pcs.), GE label (2 pcs.), different screws (40 pcs.), etc.
--Y
101
102
105
106
104
103
107
108
109
