Chapter 9 - Renewal Parts 9-5
Section 9-4 Housing - Mechanical Hardware Parts & Covers (cont’d)

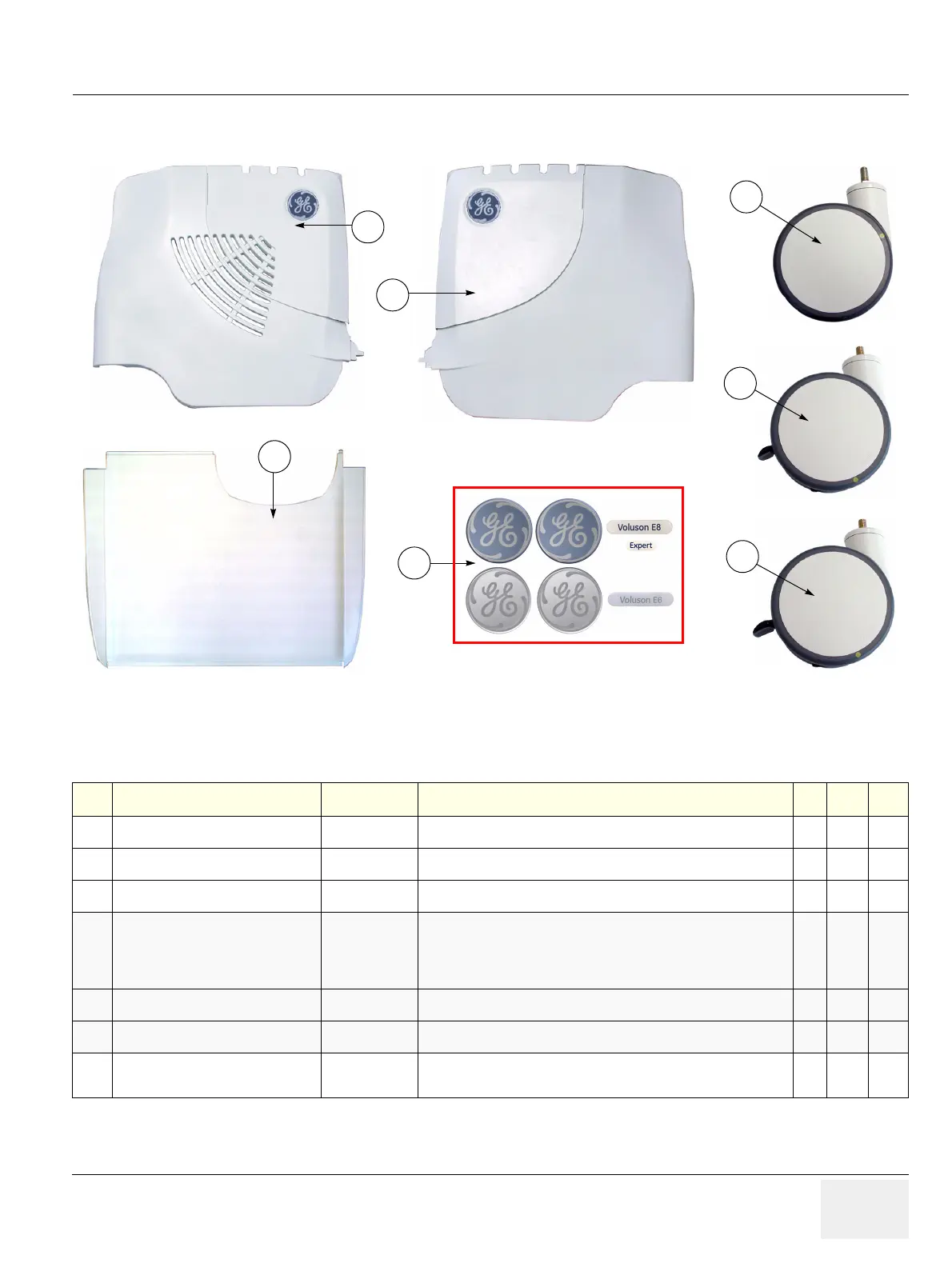

Figure 9-3 Housing - Mechanical Hardware Parts & Covers (cont´d)
Table 9-3 Housing - Mechanical Hardware Parts & Covers (cont´d)
Item Part Name Part Number Description Qty CRU FRU
111
Side Cover incl. Door (left)
KTZ196218 left Side Cover incl. Door for Probe cables 1 N Y
112
Side Cover incl. Door (right)
KTZ196224 right Side Cover incl. Door for Probe cables 1 N Y
113
Top Cover
KTZ134643 Top Cover for Voluson E8 / Voluson E6 1 N Y
114
Labels (doors, User Interface)
KTZ280100
Labels for doors and User Interface:
GE logo (2 pcs.) + label on UI (1 pcs.) “blue”, for Voluson E8,
“Expert” label (1 pcs.) for Voluson E8 Expert,
GE logo (2 pcs.) + label on UI (1 pcs.) “silver”, for Voluson E6
- Y Y
115
Caster (back)
KTZ220492 back Caster Wheel steerable, 1 pcs. 2 N Y
116
Caster (back) version 2
KTZ302365 right back Caster Wheel (steerable with swivel lock) 1 pcs. 1 N Y
117
Caster (front) version 2
KTZ220869
front Caster Wheel steerable (1 pcs.)
swivel lock is only possible if wheel is set towards the front
2N Y
111
112
113
114
115
116
117
