8-18 Section 8-9 - Replacement of the Cable Holder
Section 8-9
Replacement of the Cable Holder
8-9-1 Manpower
One person, 3 minutes
8-9-2 Tools
Phillips screwdriver PH1 and PH2
8-9-3 Cable Holder - Removal Procedure
1.) Loosen the 2 screws below the control console and then remove the cable holder.
8-9-4 Cable Holder - Installation Procedure
1.) Place the new cable holder at its original position and fasten it with the 2 screws.

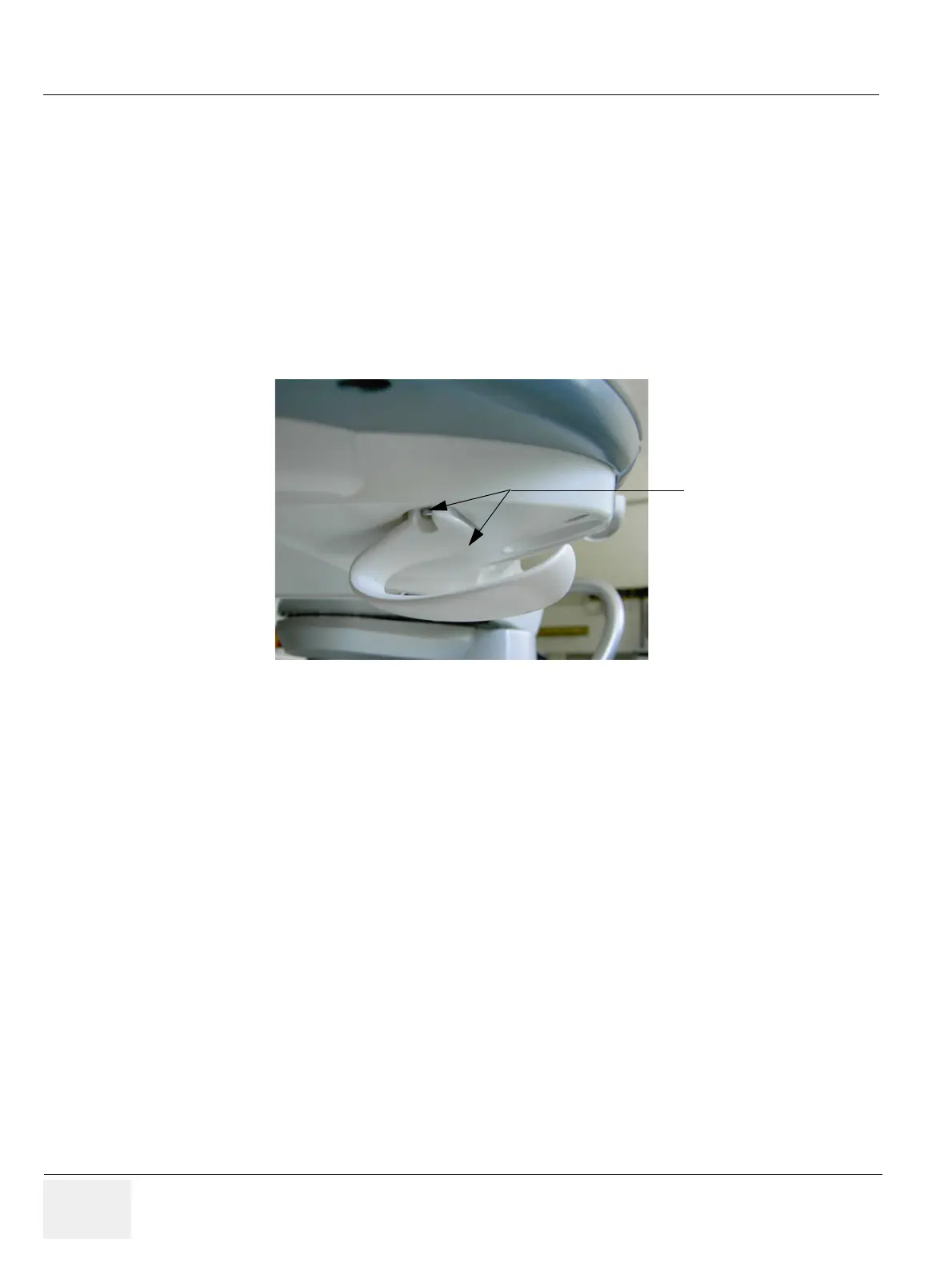

Figure 8-19 loosen 2 screws and remove cable holder
