9-13-3 2D-Probes - Phased Array Transducers

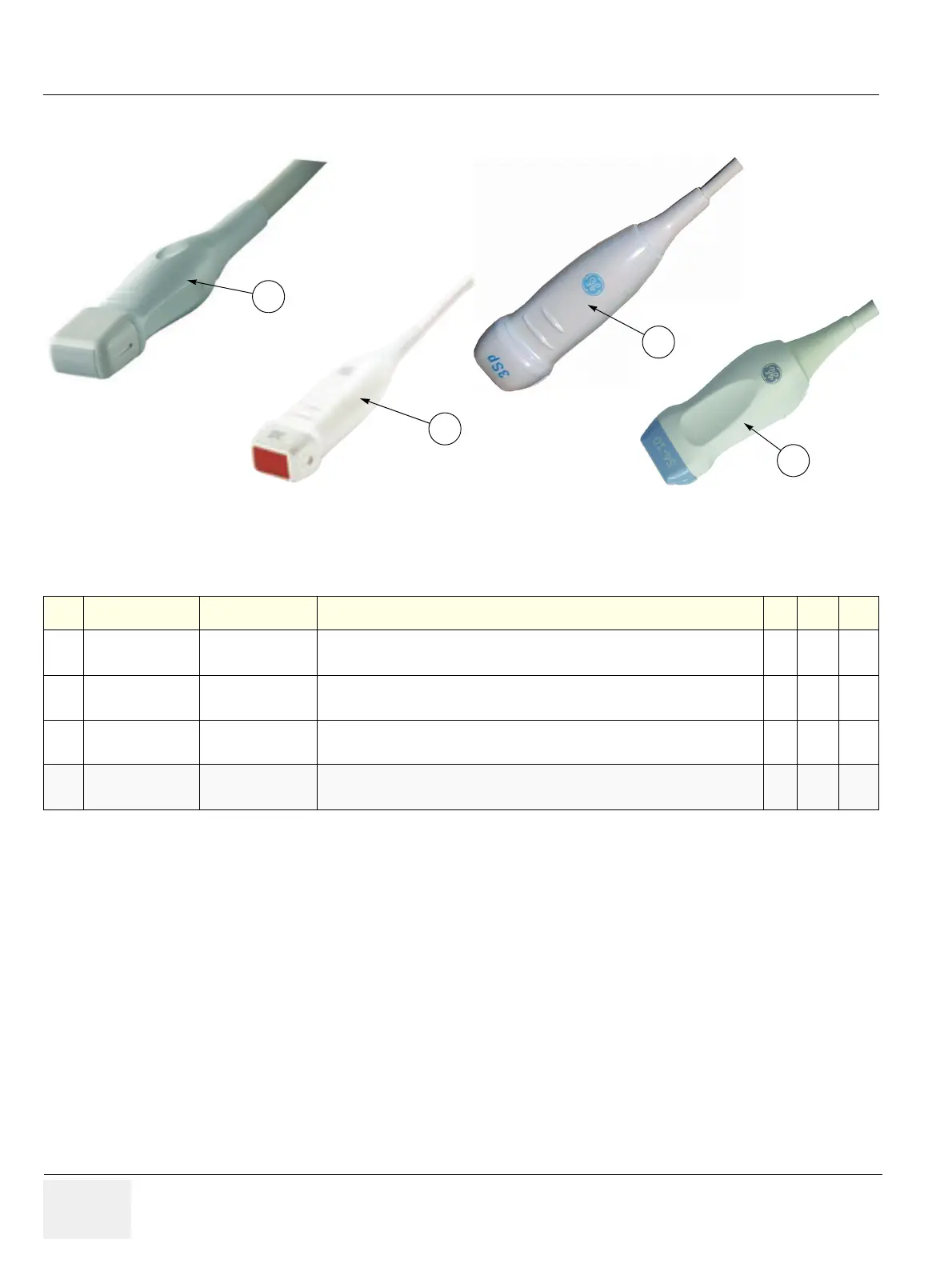

Figure 9-18 2D phased array Transducers
Table 9-24 2D phased array Transducers
Item Part Name Part Number Description Qty CRU FRU
920 PA6-8-D
KTZ157042
(H48651MZ)
broadband phased array transducer, 4.0 - 10.0 MHz, 128 Elements
Applications: Abdominal, Cardiology, Pediatrics/Neonatology
-YY
921 3S-D
KTZ280049
(H48661LG)
broadband phased array transducer, 1.0 - 3.0 MHz, 64 Elements
Applications: Cardiology, Pediatrics, Neurology
-YY
922 3SP-D
KTZ280168
(H48681AZ)
broadband phased array transducer, 1.0 - 5.0 MHz, 64 Elements
Applications: Abdominal, Obstetrics, Cardiology, Pediatrics, Neurology
-YY
923 S4-10-D
5336208
(H45302LA)
broadband phased array transducer, 4.0 - 9.0 MHz, 128 Elements
Applications: Small Parts, Cardiology, Pediatrics
- Y Y
921
922
923
920
