GE HEALTHCARERAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
8-16 Section 8-8 - Replacement of Covers
Section 8-8
Replacement of Covers
Voluson E8 / Voluson E6 cover replacement procedures described in the sub-sections:
8-8-1 Replacement of Footrest Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-16
8-8-2 Replacement of Voluson Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-17
8-8-1 Replacement of Footrest Cover
8-8-1-1 Manpower
One person, 1 minute
8-8-1-2 Tools
none
8-8-1-3 Preparations
1.) Power Off/Shutdown the system as described in Section 4-3-2 on page 4-4.
8-8-1-4 Footrest Cover - Removal Procedure
1.) For unlocking, turn the 2 quick release devices below the footrest 90°.
2.) Remove the footrest cover.
8-8-1-5 Footrest Cover - Installation Procedure
1.) Place the (new) foot rest cover on the original position.
2.) For locking, turn the 2 quick release devices below the foot rest 90°.

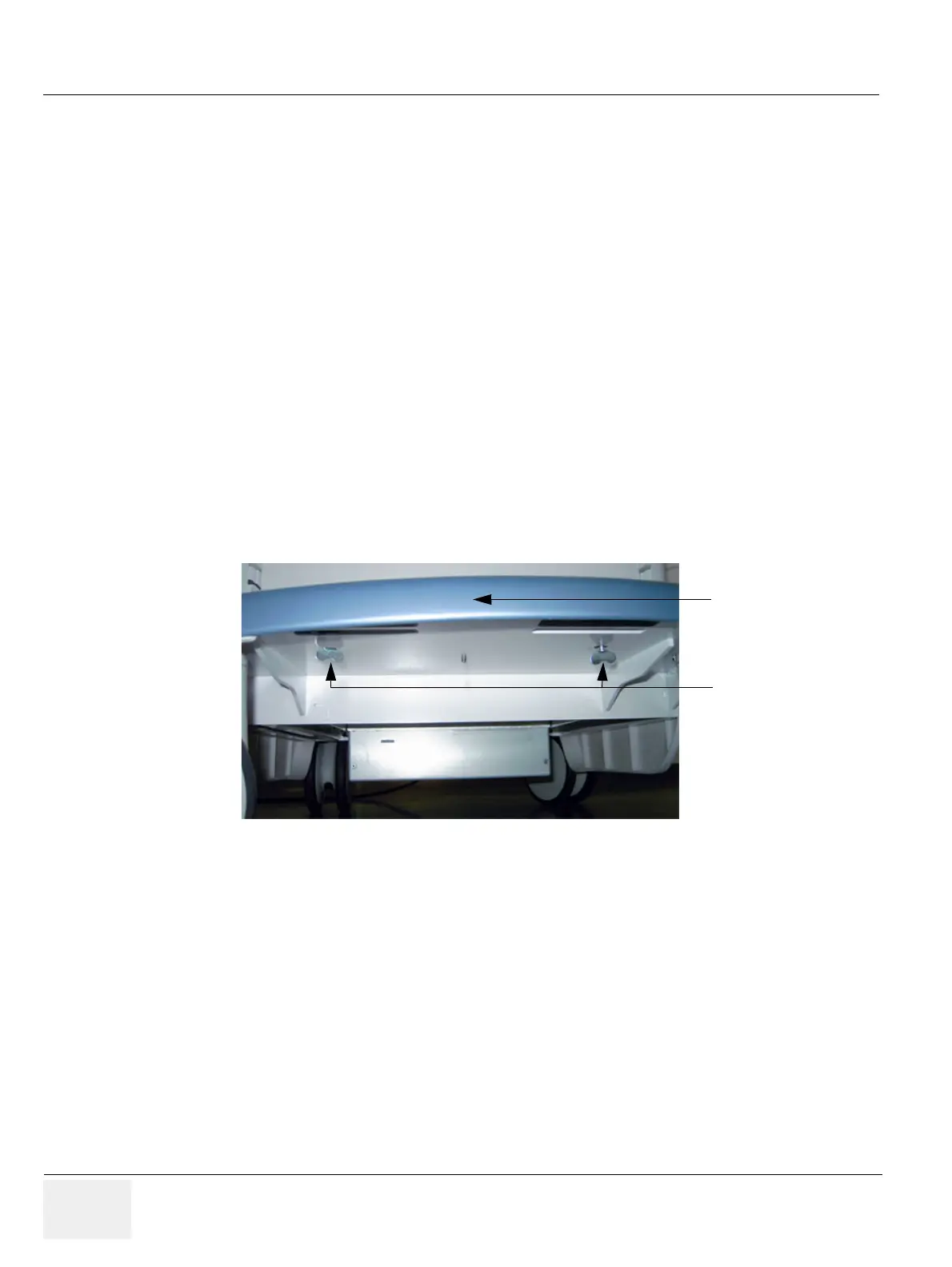

Figure 8-17 turn quick release devices 90° and remove footrest cover
quick release devices
footrest cover
