3-28 Section 3-5 - Connection of Auxiliary Devices
3-5-10 Connecting the ECG-preamplifier
NOTE: Connection of the ECG is always the same
(no differences between PC-Motherboard and/or BT-version of the system).

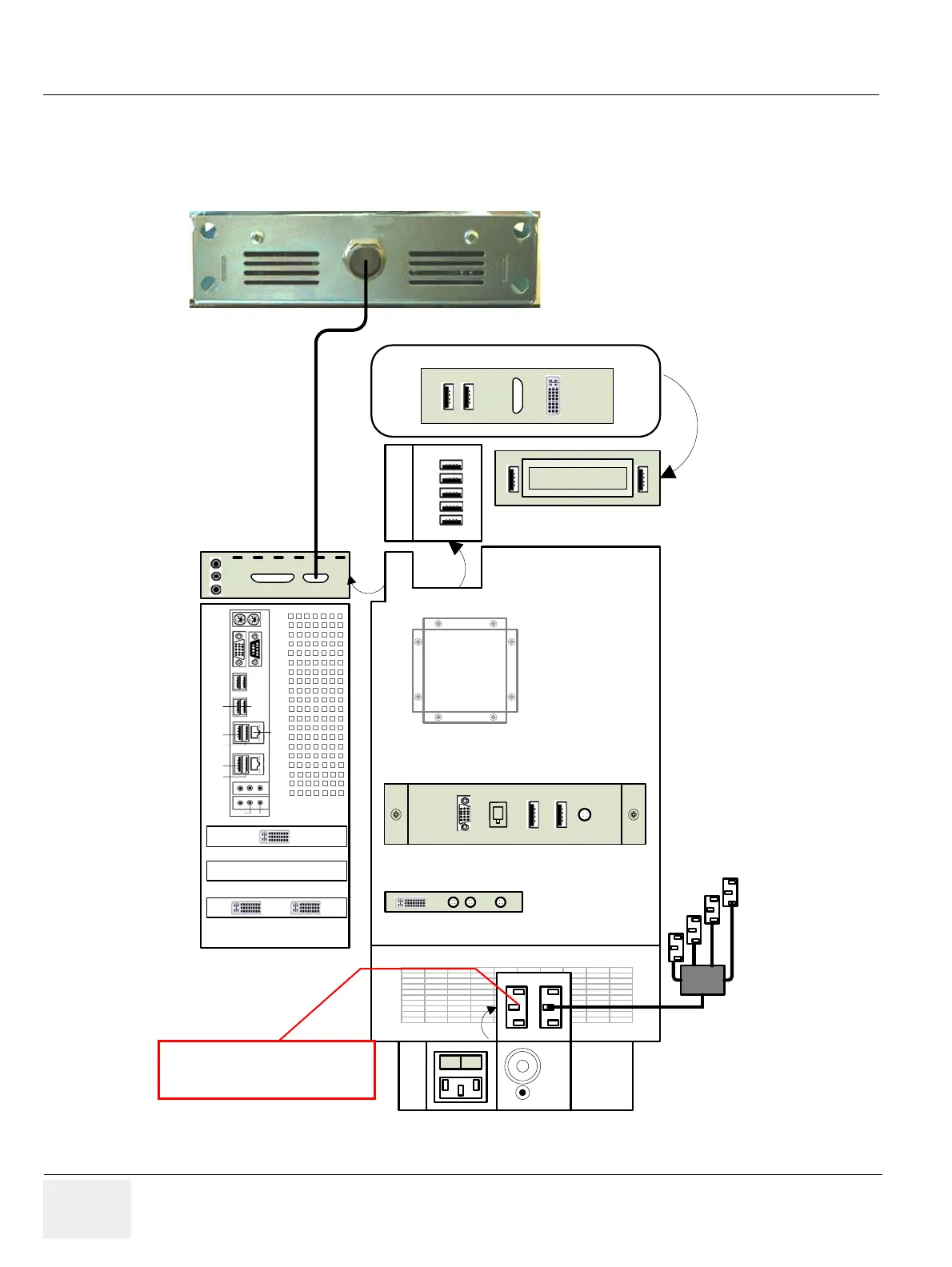

Figure 3-22 Connection Scheme - ECG-preamplifier
text
Console back
DVD Writer
I
O
UI-Top
ECG
S - Video
Out InOut
DVI - Out
Mic
Line
Out
In
A
BC
DE
DVI Out
DVI - In Monitor
RS-
232
USB
UI
USB Hub
Top
LAN
USB 3
USB 4
USB 5
USB 6
Audio
Line Out
Line In
PC
Lift
Aux
Lift is only used for the lifter
(230V - can not be changed)
To Next Page
