GE HEALTHCAREDRAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
Chapter 4 - Functional Checks 4-5
4-3-3 System Features
4-3-3-1 Control Panel

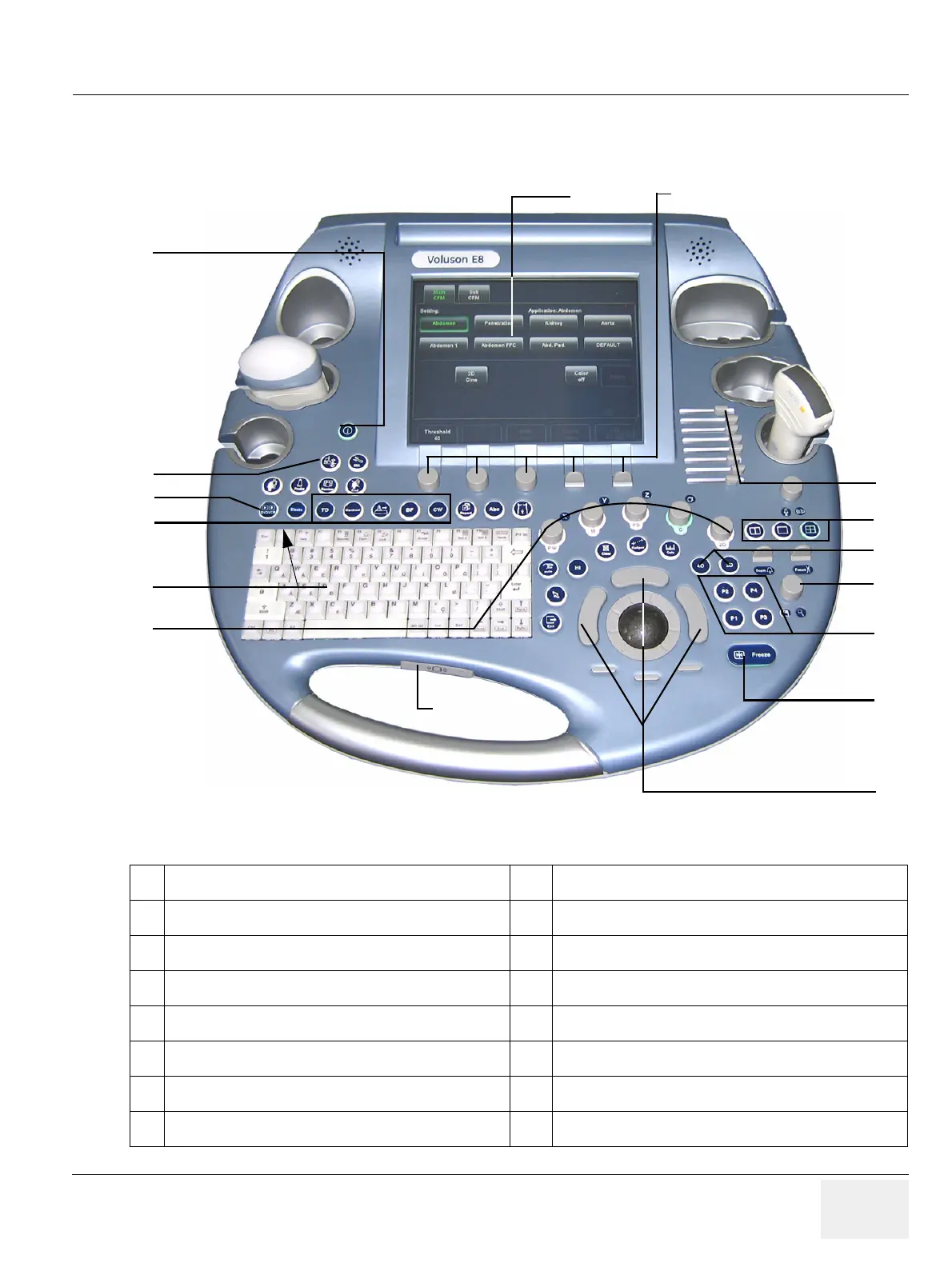

Figure 4-5 Control Panel Tour
1
Touch Panel screen
9
Trackball and Trackball keys
2
Touch Panel rotary & toggle flip switch controls
10
Button for Control Panel Rotation
3
TGC - Slider Controls
11
Mode keys, rotary controls used in 3D/4D Mode
4
Screen Format keys
12
Keyboard and F1 key (to invoke EUM)
5
3D and 4D Volume Mode keys
13
additional Mode keys
6
HR-Zoom/Pan Zoom rotary control (toggle)
14
DVD/VCR button
7
Remote control keys (programmable)
15
Button for Control Panel Elevation
8
Freeze / Run key
16
ON/OFF Standby Power button
