GE HEALTHCARERAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
4-6 Section 4-3 - General Procedure
4-3-3-2 Touch Panel
1.) Main menu key: to change from “Sub menu” back to appendant “Main” mode menu
2.) Sub menu key: the “Sub menu” (to adjust settings of the selected “Main” mode) is displayed
3.) Setting window: shows all settings for the active application. The active one is highlighted.
4.) Additional functions which are supported by the selected Mode.
NOTE: Different menus are displayed depending on which Touch Panel menu is selected.
At the bottom of the Touch Panel, there are combination rotary dials/push buttons and flip switch
controls. The functionality of these controls changes, depending upon the currently displayed menu.

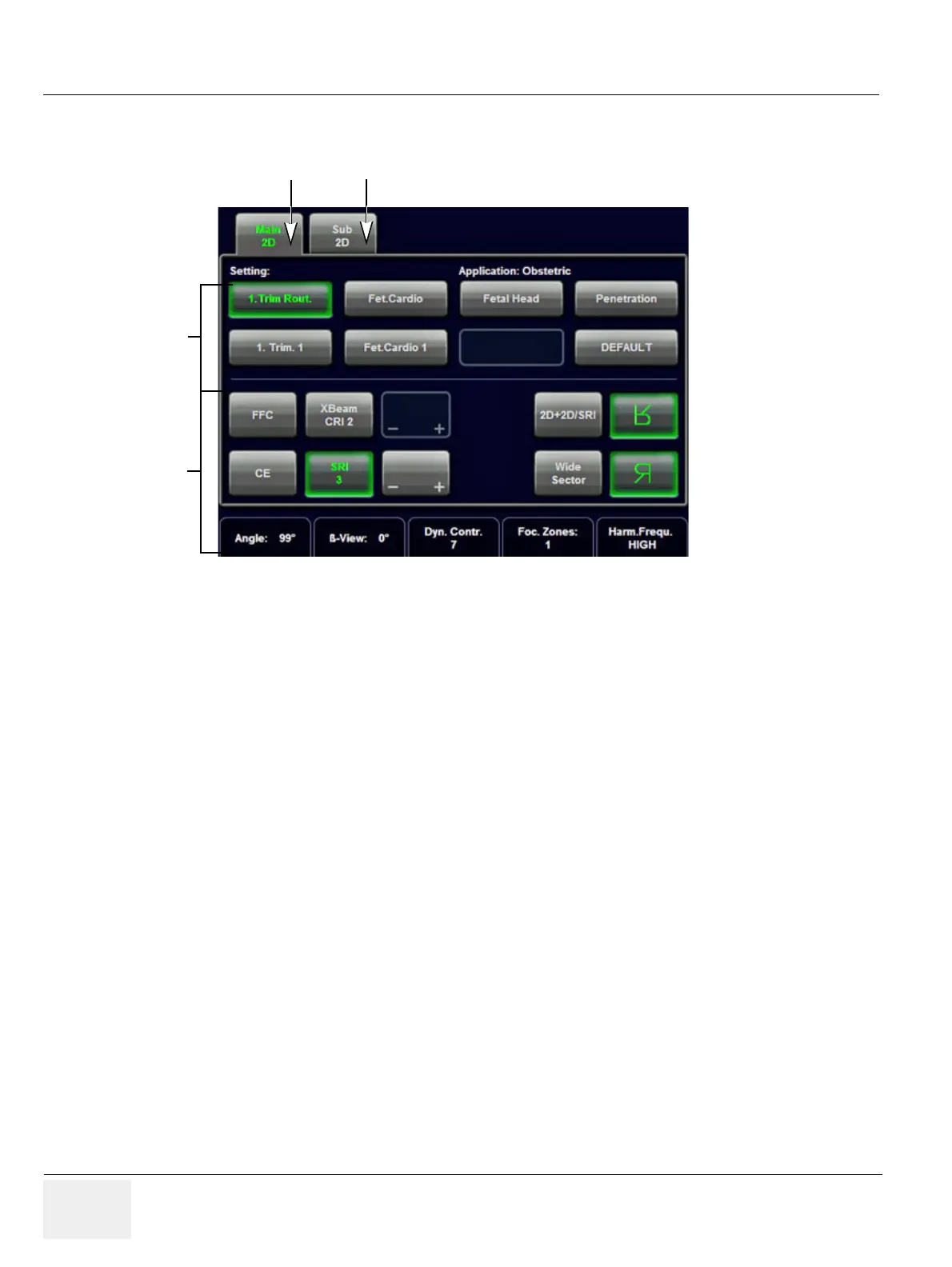

Figure 4-6 Touch Panel - Main Menu
